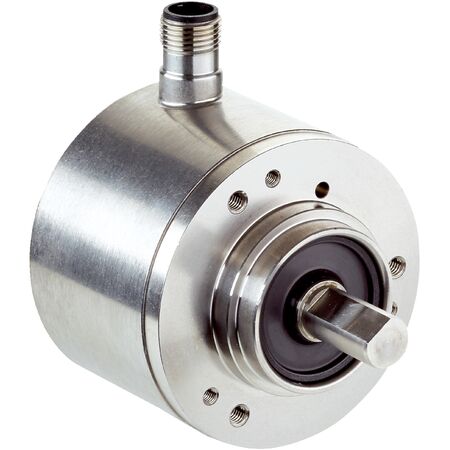

Incremental Encoder DFS60I-S4AC20000 | 20,000 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DFS60I-S4AC20000 offers high precision with 20,000 pulses per revolution, making it ideal for industrial automation and robotics. Built with a robust stainless steel housing and IP67 rating, it ensures durability in harsh environments. With a fast initialization time of just 40 ms and a wide operating temperature range from -40°C to +100°C, this encoder is perfect for precise position and speed measurement in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-S4AC20000 | 20,000 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1152891
Alternatively Known As: Incremental rotary encoder, high-resolution encoder, industrial position sensor, rotary pulse encoder
Technical Specifications
- Pulses per revolution: 20,000
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.002°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft, flange, and housing material: Stainless steel V2A
- Start up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 20,000 pulses per revolution
- Solid shaft with stainless steel housing and flange
- IP67 rated for protection against dust and water
- Robust mechanical design with high permissible shaft loading
- Short-circuit and reverse polarity protection
- Fast initialization time of 40 ms
- Operating temperature range from -40°C to +100°C
- 6-channel incremental communication interface with TTL/RS-422
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- High efficiency and precision reduce energy consumption in automated systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S4AC20000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
