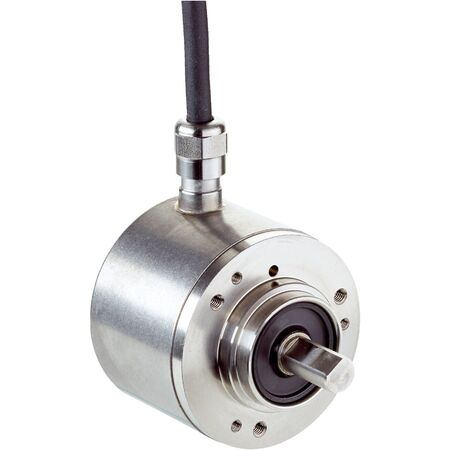

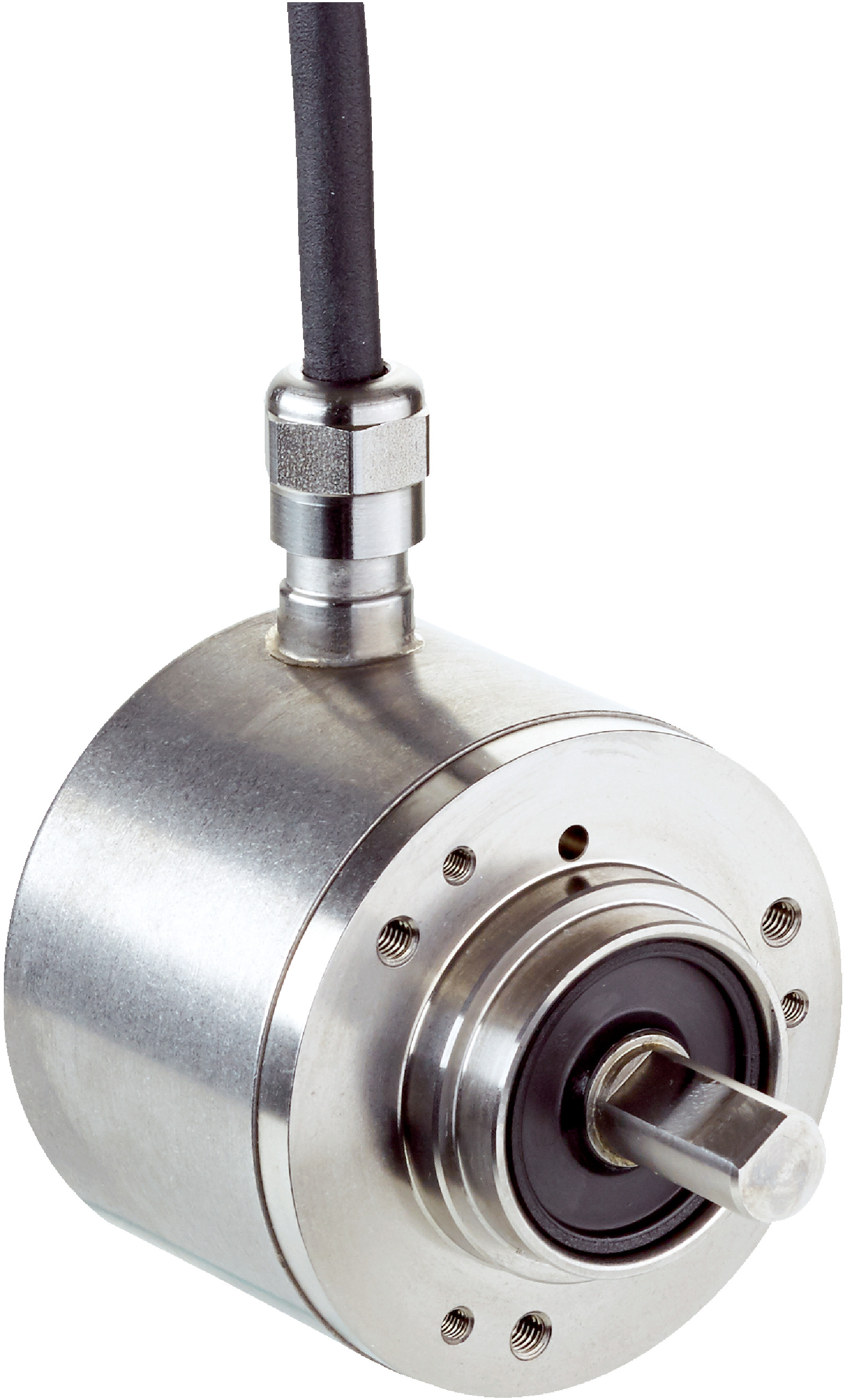

Incremental Encoder DFS60I-S4AK05000 | 5000 Pulses/Rev | IP67 Rated | Stainless Steel | by SICK
The Incremental Encoder DFS60I-S4AK05000 offers high precision with 5000 pulses per revolution, making it ideal for industrial automation and robotics applications. Built with a durable stainless steel design and an IP67 rated enclosure, it ensures reliable performance in harsh environments. With features like reverse polarity protection and a solid shaft design, this encoder is perfect for precision measurement and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-S4AK05000 | 5000 Pulses/Rev | IP67 Rated | Stainless Steel | by SICK
Brand: SICK
SKU: 1089244
Alternatively Known As: Incremental rotary encoder, rotary encoder 10mm shaft, industrial encoder, SICK DFS60 encoder
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 5,000 pulses per revolution
- Solid shaft with face mount flange design
- Stainless steel V2A shaft, flange, and housing for durability
- IP67 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Operating speed up to 9,000 min⁻¹
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- 6-channel incremental TTL/RS-422 communication interface
- High resistance to shocks (100 g) and vibration (10 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Precision measurement and positioning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- High efficiency and precision reduce energy consumption in control systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60I-S4AK05000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
