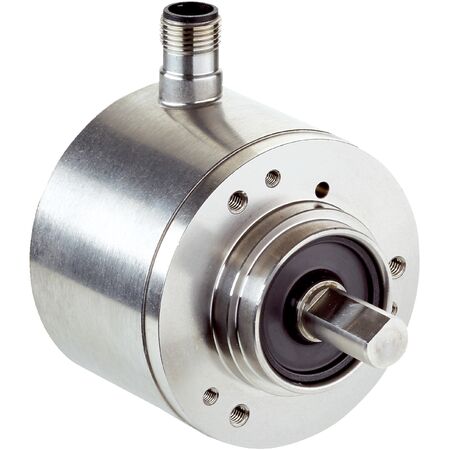

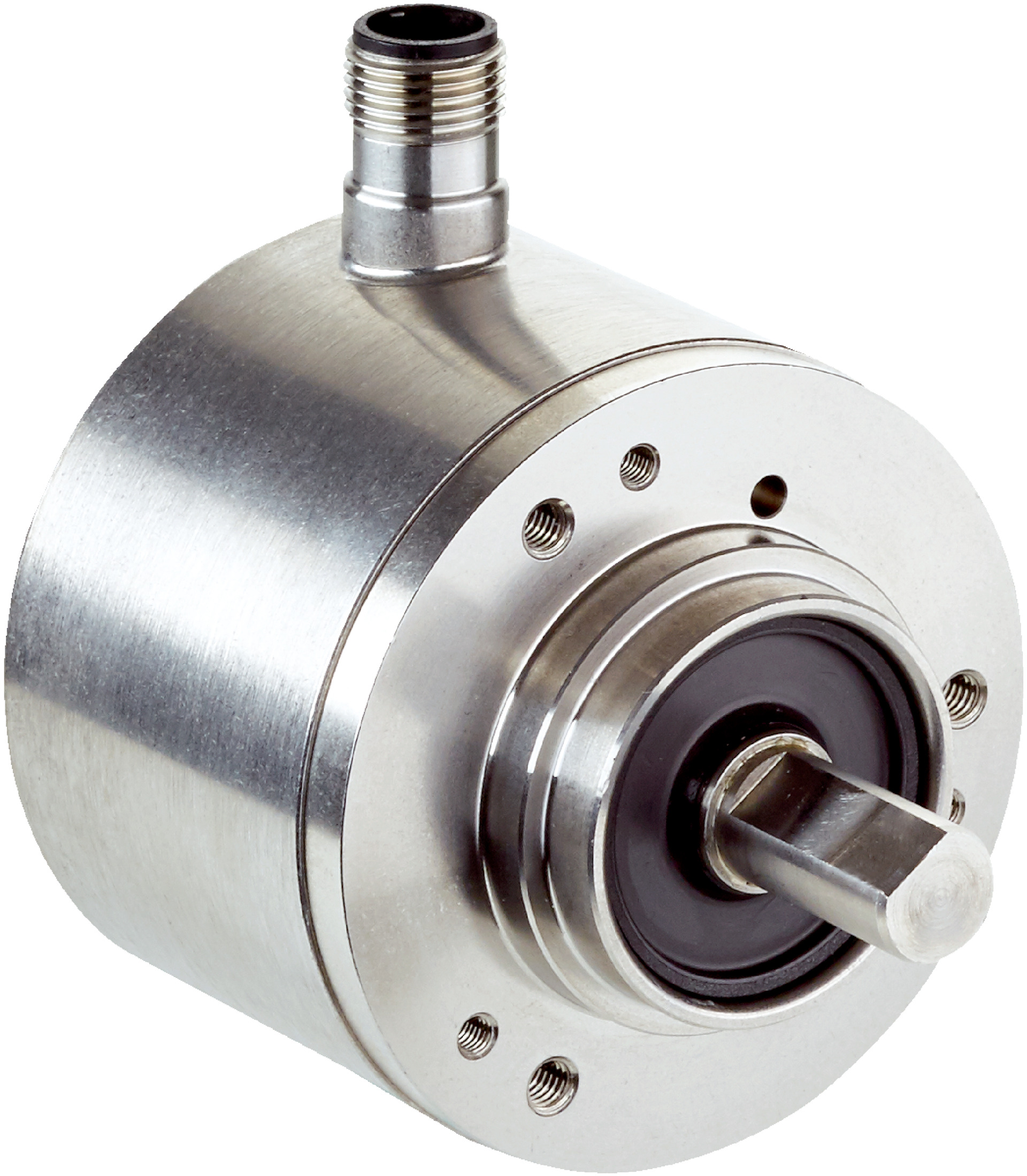

Incremental Encoder DFS60I-S4EC00500 | 500 PPR | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DFS60I-S4EC00500 delivers precise position feedback with 500 pulses per revolution and ±0.03° error limits. Designed for industrial automation, robotics, and machine tools, it features a robust stainless steel housing with IP67 protection, ensuring durability in harsh environments. With a wide operating temperature range from –40 °C to +100 °C, this encoder is perfect for applications requiring high reliability and accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-S4EC00500 | 500 PPR | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1097613
Alternatively Known As: Incremental rotary encoder, rotary encoder 500 PPR, industrial encoder, position sensor, shaft encoder
Technical Specifications
- Pulses per revolution: 500
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.5 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Start up torque: 1 Ncm at +20 °C
- Operating torque: 0.5 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing and shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.5 kg
Key Features
- 500 pulses per revolution with ±0.03° error limits
- 6-channel incremental HTL / Push pull communication interface
- Robust stainless steel housing and shaft with IP67 protection
- Operating temperature range from –40 °C to +100 °C
- Short-circuit and reverse polarity protection
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Safety-related monitoring in automated systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption of ≤ 0.5 W minimizes energy usage
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S4EC00500 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
