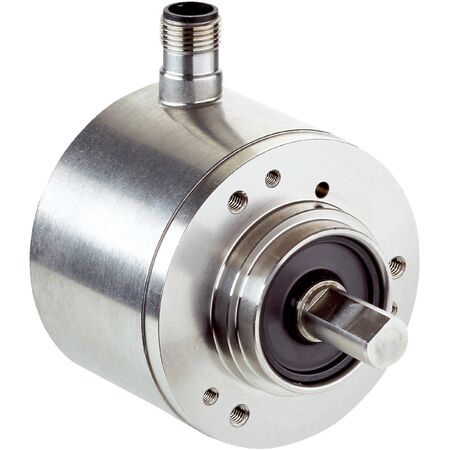

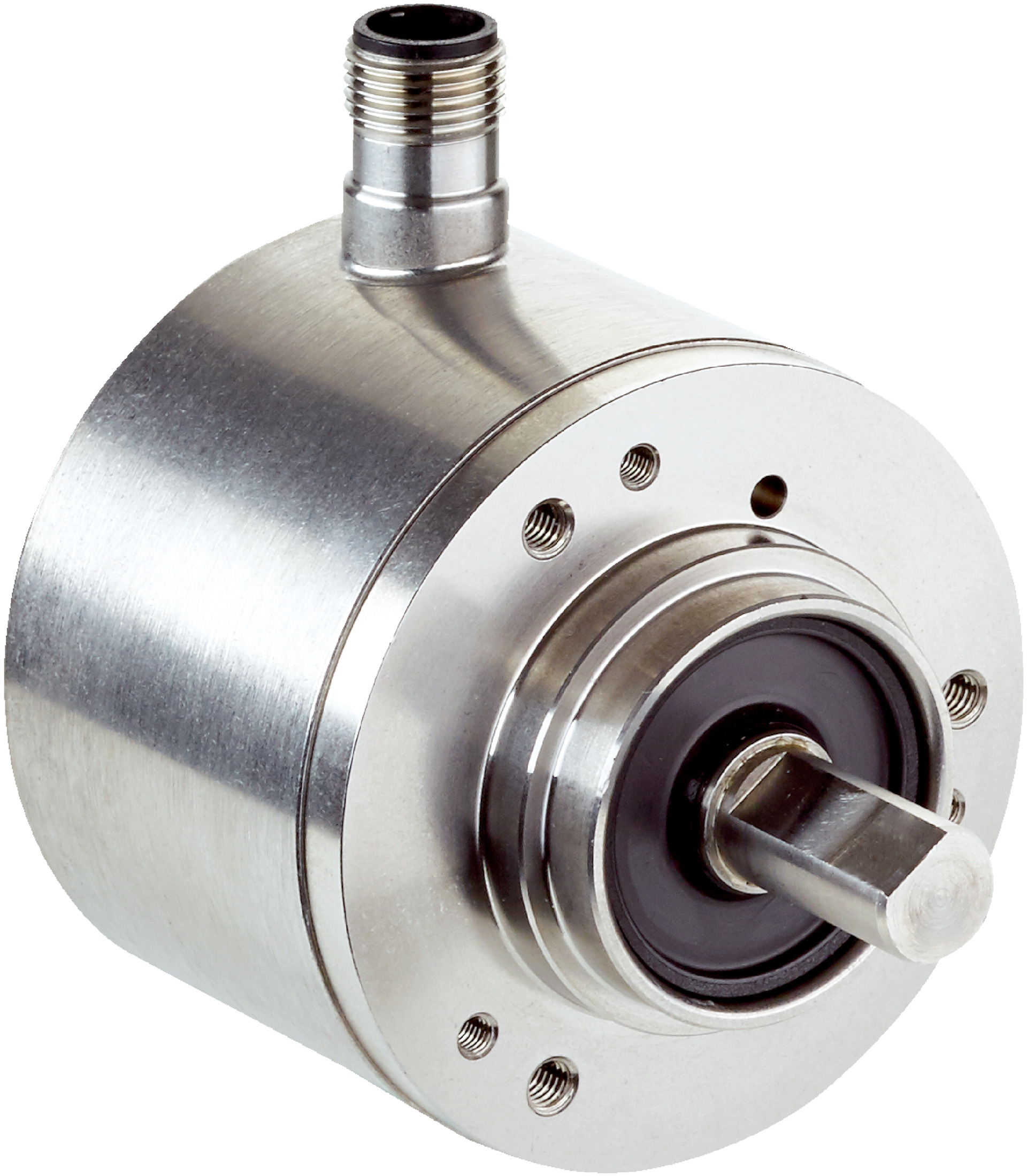

Incremental Encoder DFS60I-S4EC01000 | 1000 PPR | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DFS60I-S4EC01000 offers high precision with 1,000 pulses per revolution, making it ideal for industrial automation and robotics. Built with a robust stainless steel housing and an IP67 rated enclosure, it ensures reliable performance in harsh environments. With a fast initialization time of just 40 ms and reverse polarity protection, this encoder is perfect for applications requiring accurate position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-S4EC01000 | 1000 PPR | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1092527
Alternatively Known As: Incremental rotary encoder, rotary encoder 1000 PPR, industrial encoder, shaft encoder, position encoder
Technical Specifications
- Pulses per revolution: 1,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.5 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 1,000 pulses per revolution
- Solid shaft with stainless steel V2A housing and flange
- IP67 rated enclosure for dust and water protection
- 6-channel incremental HTL / Push pull communication interface
- Robust mechanical design with high permissible shaft loading
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -40°C to +100°C
- Low start-up and operating torque for minimal mechanical load
- Fast initialization time of 40 ms
- Complies with multiple international certifications including EU, UK, ACMA, and cULus
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption of ≤ 0.5 W minimizes energy use
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S4EC01000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
