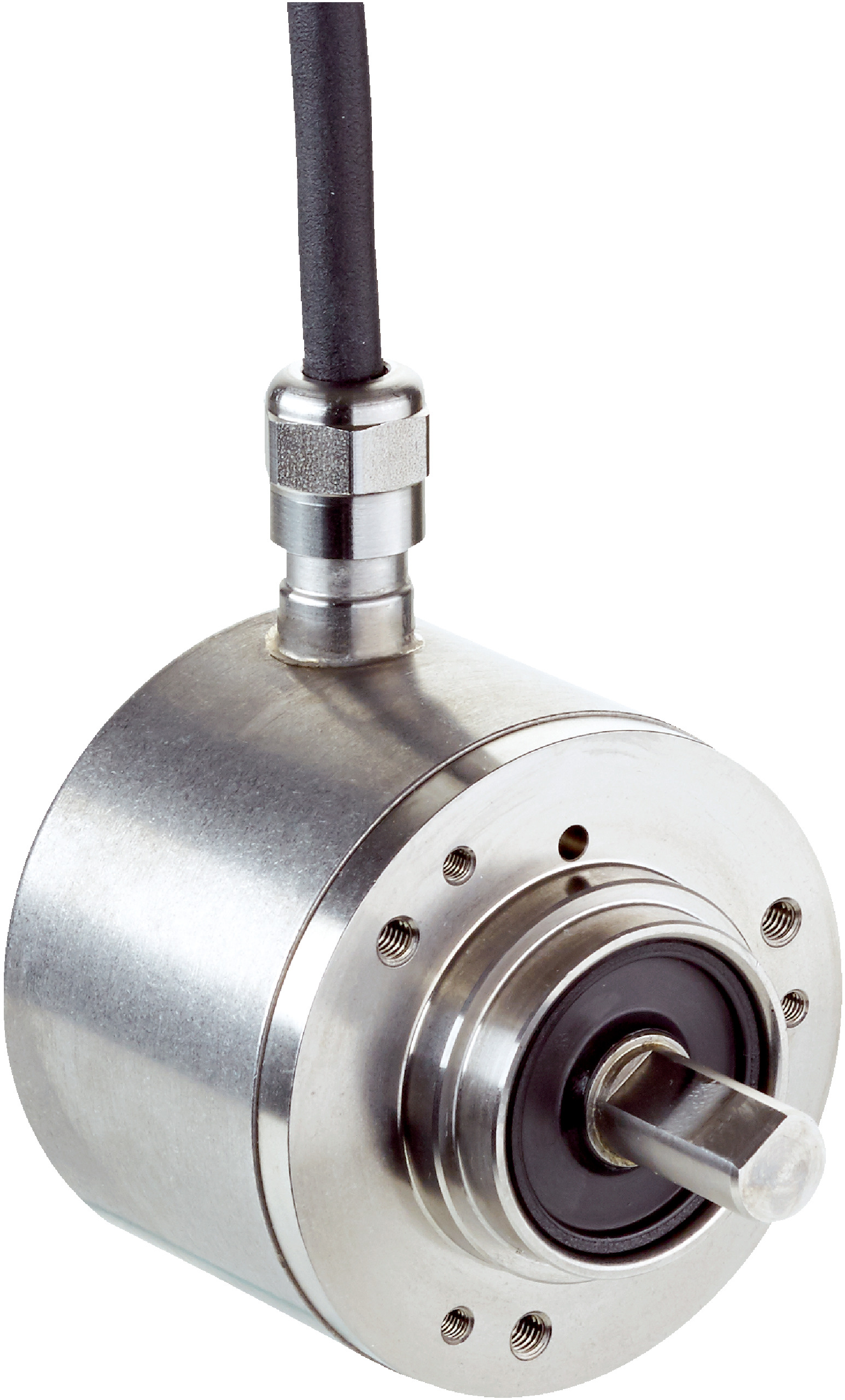

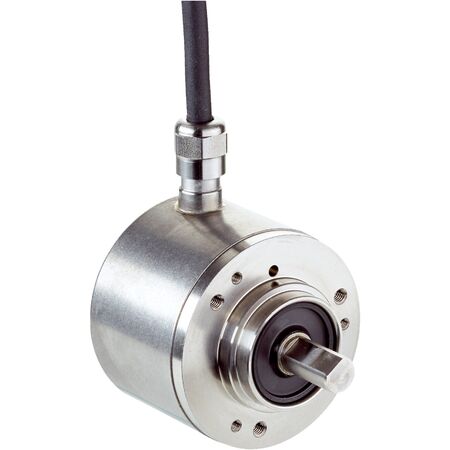

Incremental Encoder DFS60I-S4PM65536 | 65,536 Pulses/Rev | IP67 Rated | by SICK
The Incremental Encoder DFS60I-S4PM65536 offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and robotics. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, while its low start-up torque and long bearing lifetime enhance operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-S4PM65536 | 65,536 Pulses/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1083969
Alternatively Known As: Incremental rotary encoder, high-resolution encoder, industrial position sensor, rotary pulse encoder
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.7 W (without load)
- Supply voltage: 4.5 to 32 V
- Connection type: 8-wire cable, 5 m length
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start-up torque: 1 Ncm
- Operating torque: 0.5 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10^10 revolutions
- Enclosure rating: IP67
- Operating temperature range: -40°C to +100°C
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Solid shaft with stainless steel V2A housing and flange
- IP67 rated enclosure for protection against dust and water
- Programmable 6-channel incremental TTL/HTL output
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- Bearing lifetime of 3.6 x 10^10 revolutions
- Fast initialization time of 30-32 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Safety-related applications requiring reliable feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption of ≤ 0.7 W minimizes energy use
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S4PM65536 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
