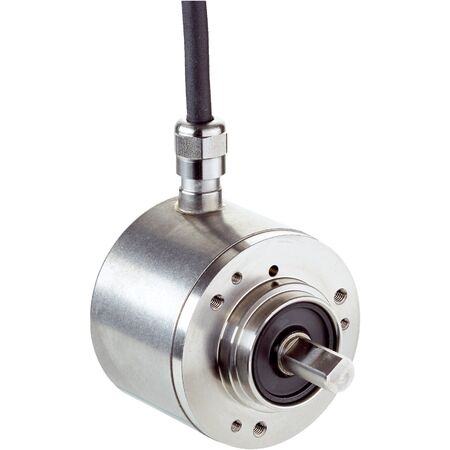

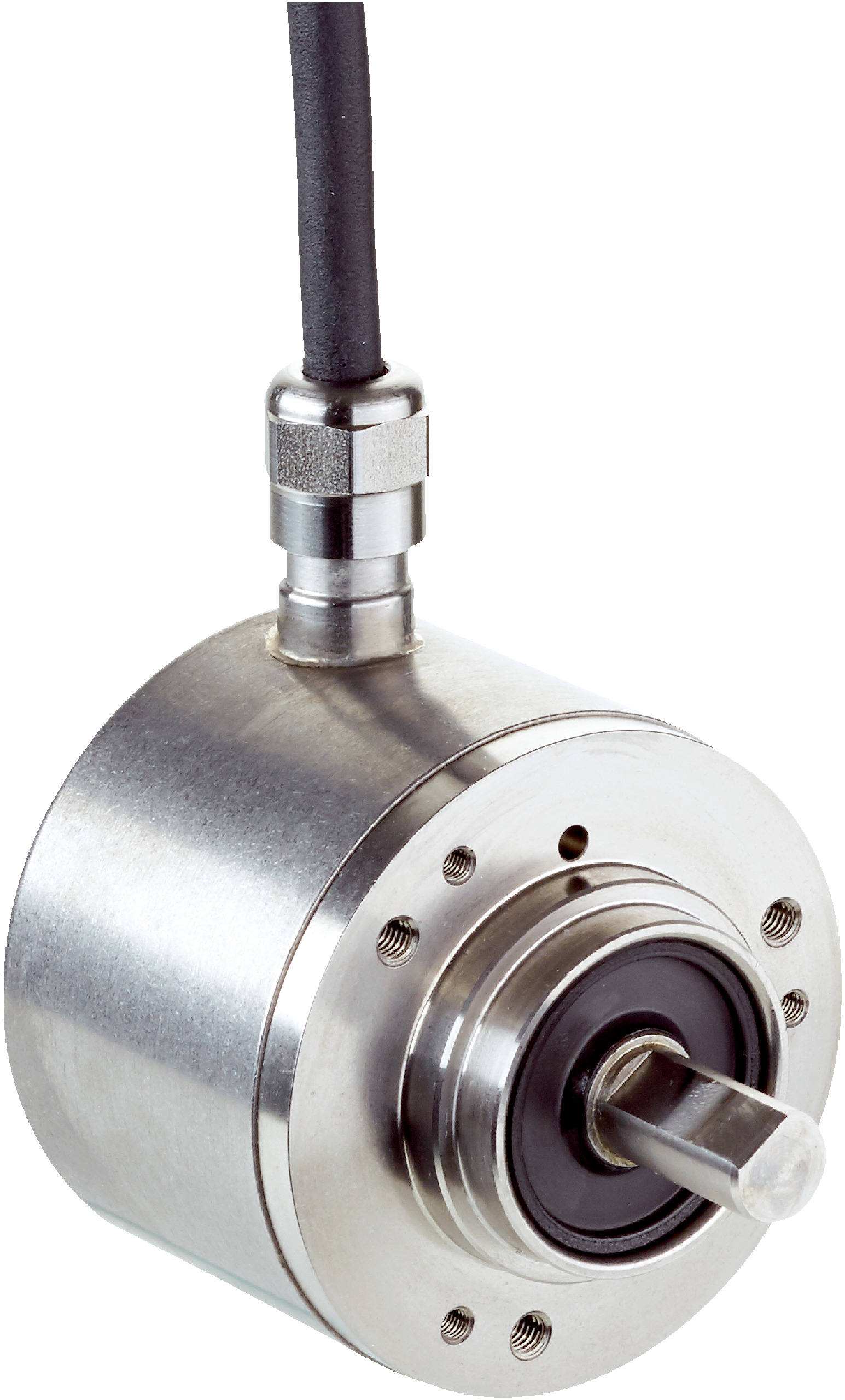

Incremental Encoder DFS60I-S4VK03600 | 3600 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DFS60I-S4VK03600 offers high precision with 3600 pulses per revolution and a robust stainless steel design. Ideal for industrial automation and robotics, it features an IP67 rated enclosure for dust and water protection, ensuring reliable performance in harsh environments. With a wide operating temperature range from -40°C to +100°C, this encoder is built for durability and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-S4VK03600 | 3600 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1090662
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK DFS60 encoder
Technical Specifications
- Pulses per revolution: 3,600
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- 0-set function: H-active via hardware pin
- Initialization time: 30 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.7 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Cable, 12-wire, radial, 1.5 m
- Supply voltage: 4.5 to 32 V
- Reference signal: 1, positioned at 90° electric
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Start up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing and shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 3,600 pulses per revolution
- 6-channel incremental TTL/RS-422 communication interface
- Robust stainless steel housing and shaft
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption of ≤ 0.7 W reduces energy usage
- High reliability minimizes downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S4VK03600 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
