Incremental Encoder DFS60I-S4WC01800 | 1800 PPR | IP67 Rated | Stainless Steel Housing | by SICK

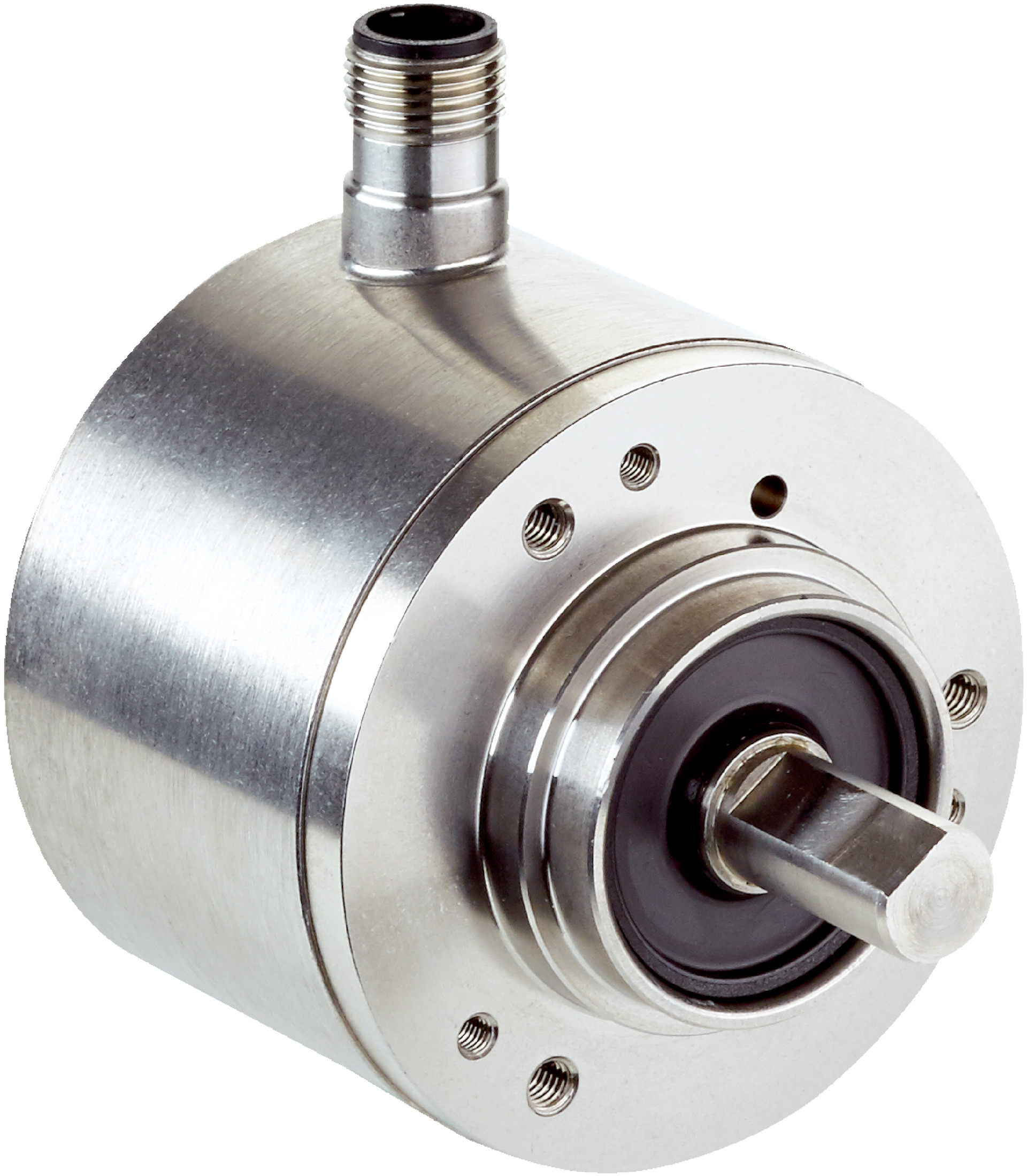

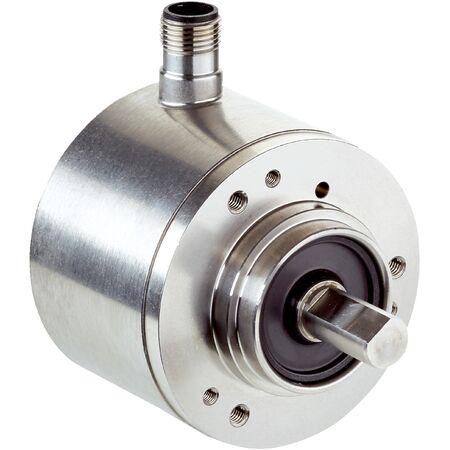

The Incremental Encoder DFS60I-S4WC01800 offers high precision with 1,800 pulses per revolution, making it ideal for industrial automation and robotics applications. Built with a robust stainless steel housing and an IP67 rating, this encoder ensures reliable performance in harsh environments, while its 6-channel incremental HTL communication interface provides versatile connectivity options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-S4WC01800 | 1800 PPR | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1087638
Alternatively Known As: Incremental rotary encoder, rotary encoder 1800 PPR, SICK DFS60 encoder, industrial position encoder
Technical Specifications
- Pulses per revolution: 1,800
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- 0-set function: H-active, hardware pin controlled
- Initialization time: 30 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.7 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male connector, M12, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Start-up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 1,800 pulses per revolution
- Solid shaft with stainless steel V2A housing and flange
- 6-channel incremental HTL / Push pull communication interface
- 0-set function via hardware pin for easy initialization
- Robust design with IP67 enclosure rating for harsh environments
- Operating temperature range from -40°C to +100°C
- Reverse polarity and short-circuit protection
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption of ≤ 0.7 W improves energy efficiency
- Long bearing lifetime minimizes maintenance and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S4WC01800 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
