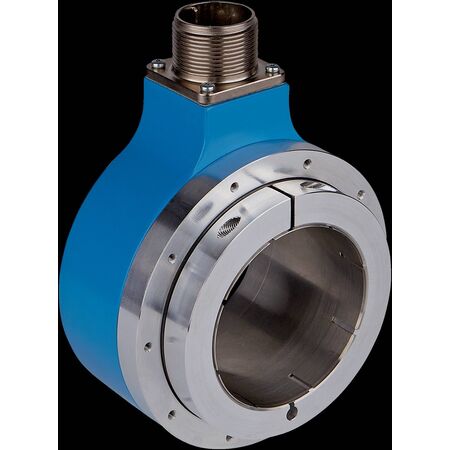

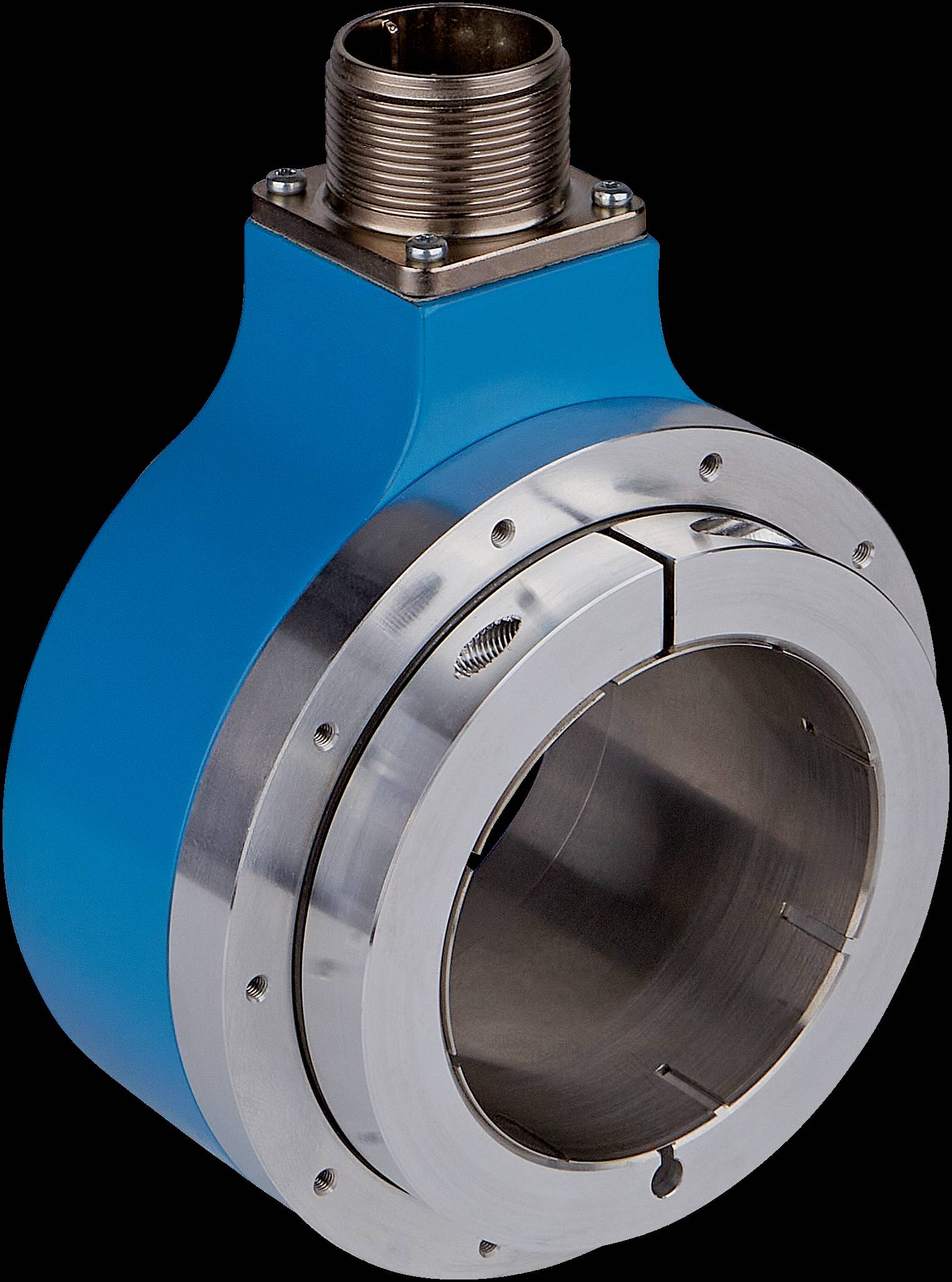

Incremental Encoder DGS80/90 | IP65 Rated | Up to 8192 Pulses | Large Hollow Shaft | by SICK
The DGS80/90 incremental encoder is designed for industrial automation and motion control applications, featuring a robust IP65 rated enclosure and large hollow shaft diameters of up to 65 mm. With up to 8192 pulses per revolution and multiple communication interfaces, it ensures precise motion control and easy integration into various systems. Ideal for professionals seeking reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DGS80/90 | IP65 Rated | Up to 8192 Pulses | Large Hollow Shaft | by SICK
Brand: SICK
SKU: 1146032
Alternatively Known As: Incremental encoder with hollow shaft, large bore encoder, industrial rotary encoder, motion control encoder
Technical Specifications
- Pulses per revolution: up to 8,192
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12, M23, MS (Mil-Spec) plug, cable with flying leads
- Supply voltage range: 5 V to 30 V
- Construction size (flange): Ø 110 mm
- Connection detail: Male connector, MS, 10-Pin
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192
- Enclosure rating IP65 for dust and water protection
- Communication interfaces: TTL and HTL
- Multiple connection types including M12, M23, MS (Mil-Spec) plug, and cable with flying leads
- Quick and easy installation with clamping ring and universal stator couplings
- Collets available as accessories for shaft size adjustment
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial automation systems
- Asynchronous motor control
- Motion control sensor applications requiring large hollow shaft encoders
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP65 rated enclosure reduces need for frequent replacements
- Energy-efficient integration with control systems due to wide supply voltage range
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80/90 incremental encoders are available for immediate purchase, ideal for industrial automation and motion control applications requiring robust and precise shaft encoders.
