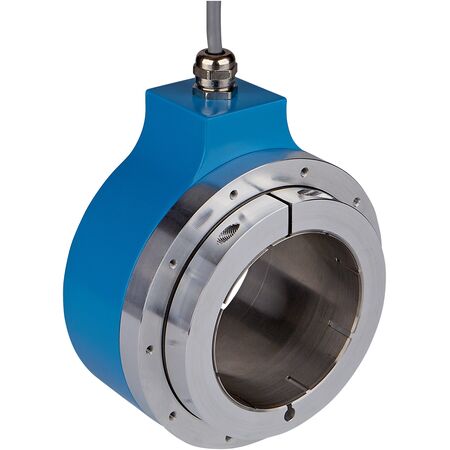

Incremental Encoder DGS90B-TWLK08192 | 8192 Pulses/Rev | IP65 Protection | by SICK
The Incremental Encoder DGS90B-TWLK08192 offers high resolution with 8192 pulses per revolution, making it ideal for precision measurement in industrial automation and control systems. Designed for robust performance, it features a through hollow shaft with a 65 mm diameter and an IP65 protection rating, ensuring durability in challenging environments. Perfect for robotics and conveyor systems, this encoder guarantees reliable position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DGS90B-TWLK08192 | 8192 Pulses/Rev | IP65 Protection | by SICK
Brand: SICK
SKU: 1146070
Alternatively Known As: Incremental rotary encoder, high resolution encoder, industrial position sensor, SICK encoder DGS90B
Technical Specifications
- Pulses per revolution: 8,192
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ± 25° electrical
- Duty cycle: ≤ 0.5 ± 15 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 5 to 30 V
- Mechanical design: Through hollow shaft
- Shaft diameter: 65 mm
- Flange type: 1-sided stator coupling (accessory available)
- Shaft material: Stainless steel UNI EN 4305
- Flange material: Aluminum
- Housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 40 Ncm (+20 °C)
- Operating torque: 35 Ncm (+20 °C)
- Permissible shaft loading: 200 N radial, 120 N axial
- Operating speed: ≤ 2,000 min⁻¹
- Moment of inertia of rotor: 2,640 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: According to EN 61000-4-2 and EN 61000-4-4
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25 °C to +85 °C
- Storage temperature range: -25 °C to +85 °C (without package)
- Resistance to shocks: 250 g, 6 ms (EN 60068-2-27)
- Resistance to vibration: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 100mm x 80mm
- Weight: 1.4 kg
Key Features
- High resolution with 8,192 pulses per revolution
- Through hollow shaft mechanical design with 65 mm shaft diameter
- Robust housing made of ZAMAC die cast with IP65 protection rating
- 6-channel incremental HTL / Push pull communication interface
- Short-circuit and reverse polarity protection
- Operating temperature range from -25 °C to +85 °C
- High mechanical durability with bearing lifetime of 10^9 revolutions
- Low power consumption of ≤ 0.85 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Position and speed measurement in machinery
- Robotics and conveyor systems
- Precision motor feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS90B-TWLK08192 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
