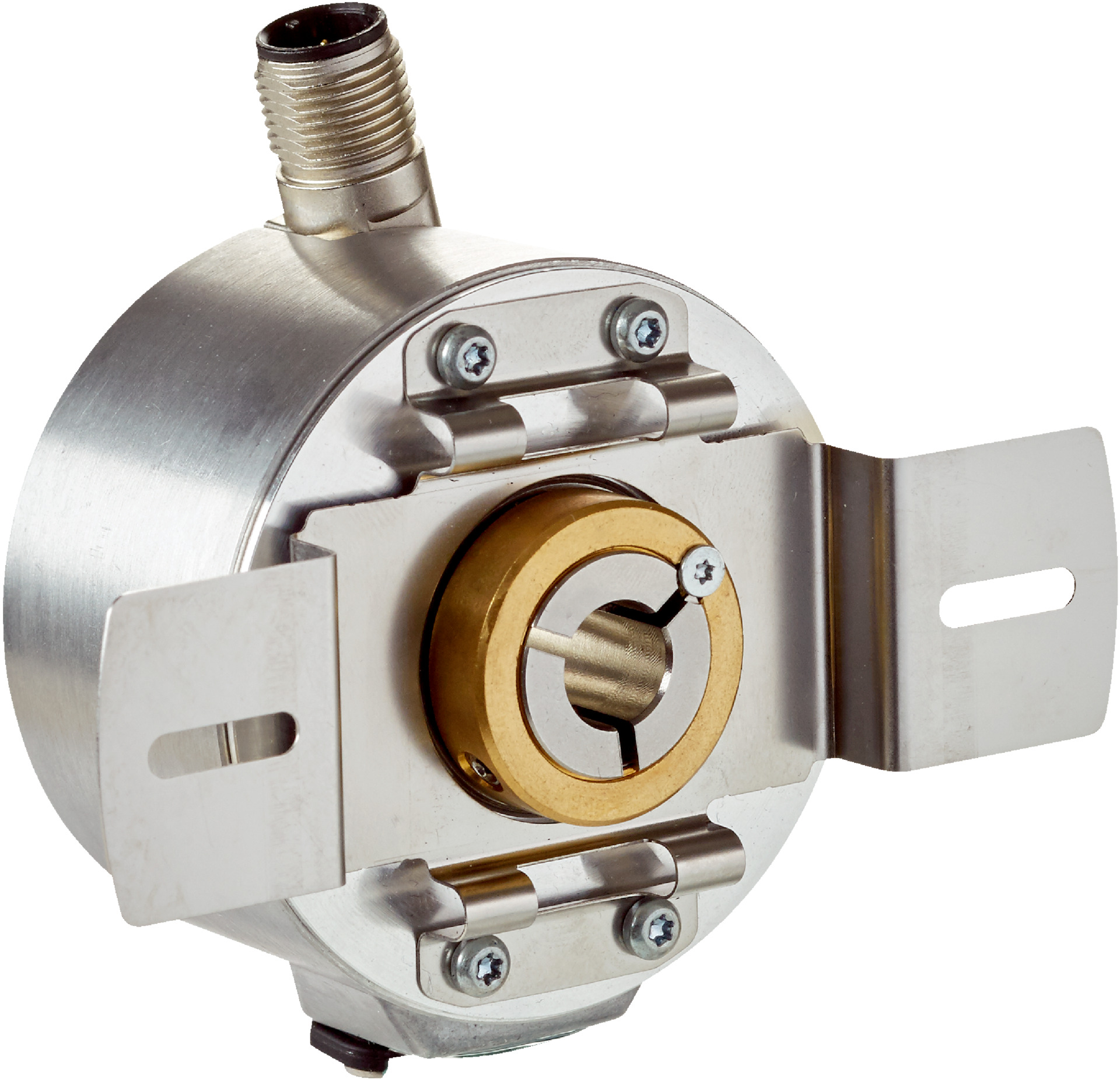

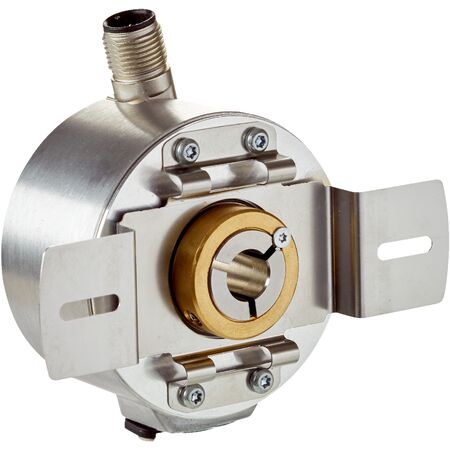

Incremental Encoder DUS60E-TDKF0ACA | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
The Incremental Encoder DUS60E-TDKF0ACA is designed for precise position and speed measurement in industrial automation. With a robust mechanical design, 6-channel output, and an impressive output frequency of up to 60 kHz, it’s perfect for robotics, conveyor systems, and machine tool feedback. Its IP65 rating ensures protection against dust and water, making it reliable in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DUS60E-TDKF0ACA | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
Brand: SICK
SKU: 1134597
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Programmable via DIP switch for pulses per revolution, output voltage, and direction
- Initialization time: < 5 ms
- Output frequency: up to 60 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 120 mA without load
- Power consumption: ≤ 1.25 W without load
- Connection type: Male M12 4-pin connector
- Supply voltage: 4.75 to 30 V
- Reference signal: 1, positioned at 180° gated with A
- Mechanical design: Through hollow shaft with 10 mm diameter
- Flange type: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Start-up torque: 0.5 Ncm at +20°C
- Operating torque: 0.4 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 1,500 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30°C to +90°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with TTL/HTL selectable output
- 6-channel output with programmable DIP switch parameters
- High output frequency up to 60 kHz
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +90°C
- Reverse polarity and short-circuit protection
- Low start-up and operating torque for minimal mechanical load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤1.25 W reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUS60E-TDKF0ACA Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
