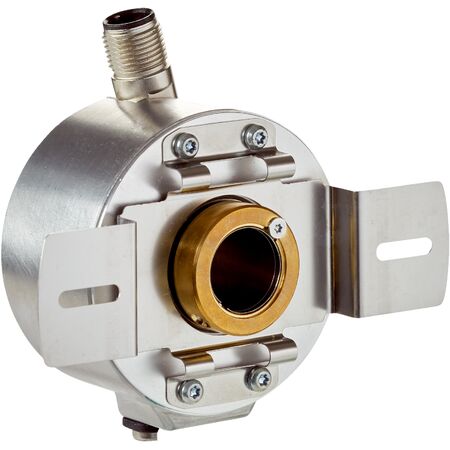

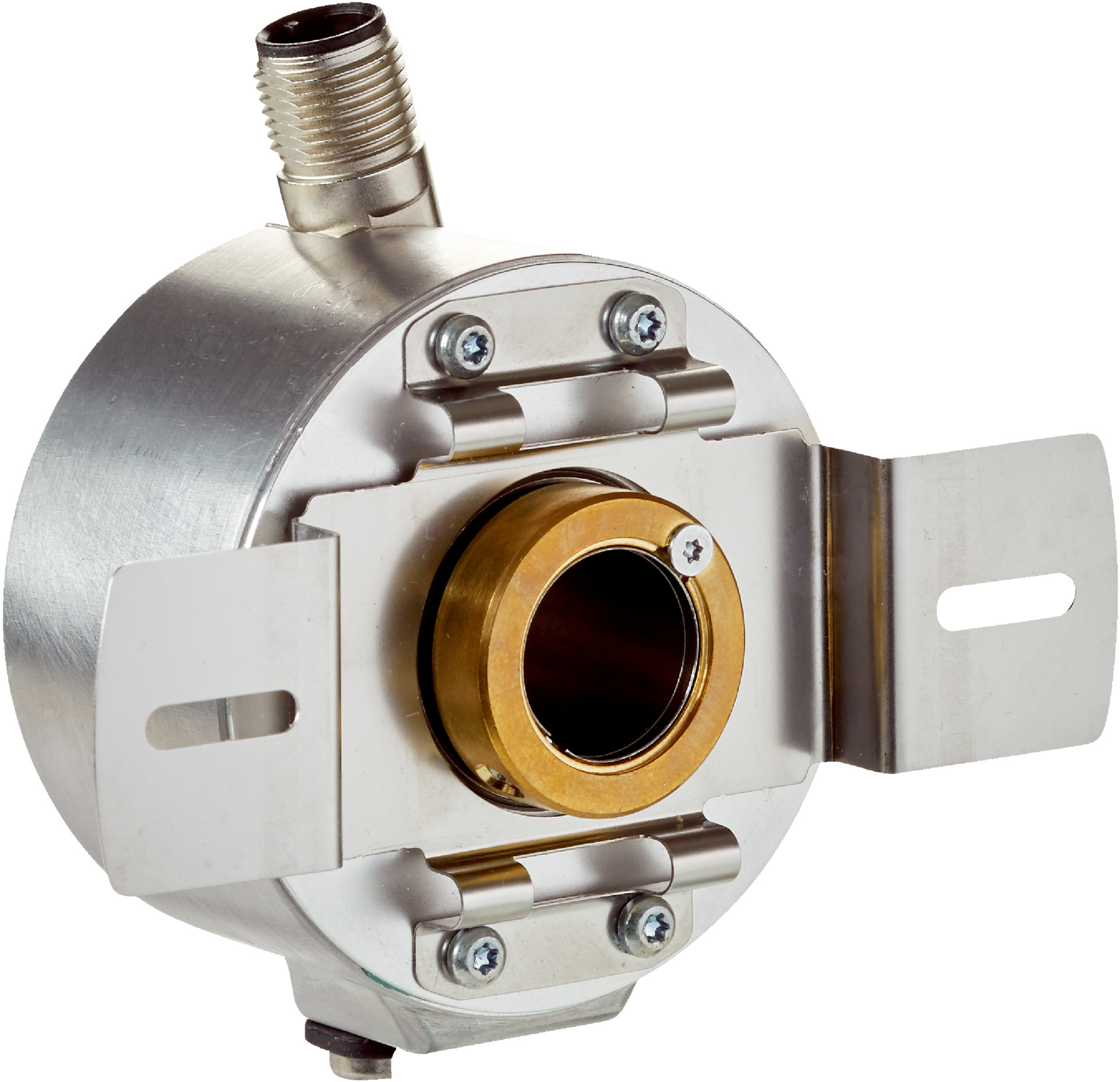

Incremental Encoder DUS60E-BCKF0ACA | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
The Incremental Encoder DUS60E-BCKF0ACA is designed for precise position and speed measurement in industrial automation. With a robust mechanical design, 6-channel output, and an impressive output frequency of up to 60 kHz, it’s perfect for robotics, conveyor systems, and machine tool feedback. Its IP65 rating ensures protection against dust and water, making it reliable in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DUS60E-BCKF0ACA | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
Brand: SICK
SKU: 1128042
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Programmable via DIP switch for pulses per revolution, output voltage, and direction
- Initialization time: < 5 ms
- Output frequency: up to 60 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 120 mA without load
- Supply voltage: 4.75 to 30 V
- Connection type: Male M12 4-pin connector
- Mechanical design: Blind hollow shaft with 3/8” front clamp
- Flange type: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm
- Start-up torque: 0.5 Ncm at +20°C
- Operating torque: 0.4 Ncm at +20°C
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 1500 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30°C to +90°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with TTL/HTL selectable output
- 6-channel output with programmable DIP switch parameters
- High output frequency up to 60 kHz
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +90°C
- Reverse polarity and short-circuit protection
- Low start-up and operating torque for minimal mechanical load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤1.25 W reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUS60E-BCKF0ACA Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
