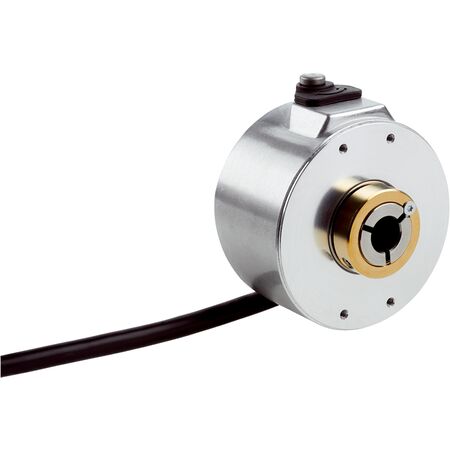

Incremental Encoder DUS60E-BDKMAAAA | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
The Incremental Encoder DUS60E-BDKMAAAA features a robust 6-channel output and an impressive output frequency of up to 60 kHz, making it ideal for industrial automation and precise motion control applications. With an IP65 rated enclosure, it ensures protection against dust and water, while its wide operating temperature range from -30°C to +90°C guarantees reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DUS60E-BDKMAAAA | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
Brand: SICK
SKU: 1085277
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Programmable via DIP switch for pulses per revolution, output voltage, direction of rotation
- Output frequency: up to 60 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 120 mA without load
- Power consumption: ≤ 1.25 W without load
- Connection type: 8-wire cable, 5 m length
- Supply voltage: 4.75 to 30 V
- Reference signal: 1, positioned at 180° gated with A
- Mechanical design: Blind hollow shaft, 10 mm diameter
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Start-up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature: -30°C to +90°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with TTL/HTL selectable output
- 6-channel output with programmable DIP switch parameters
- High output frequency up to 60 kHz
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +90°C
- Reverse polarity and short-circuit protection
- Low start-up and operating torque for minimal mechanical load
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for position and speed measurement
- Robotics and conveyor systems
- Machine tool feedback systems
- Process control and monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W reduces energy usage
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUS60E-BDKMAAAA Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
