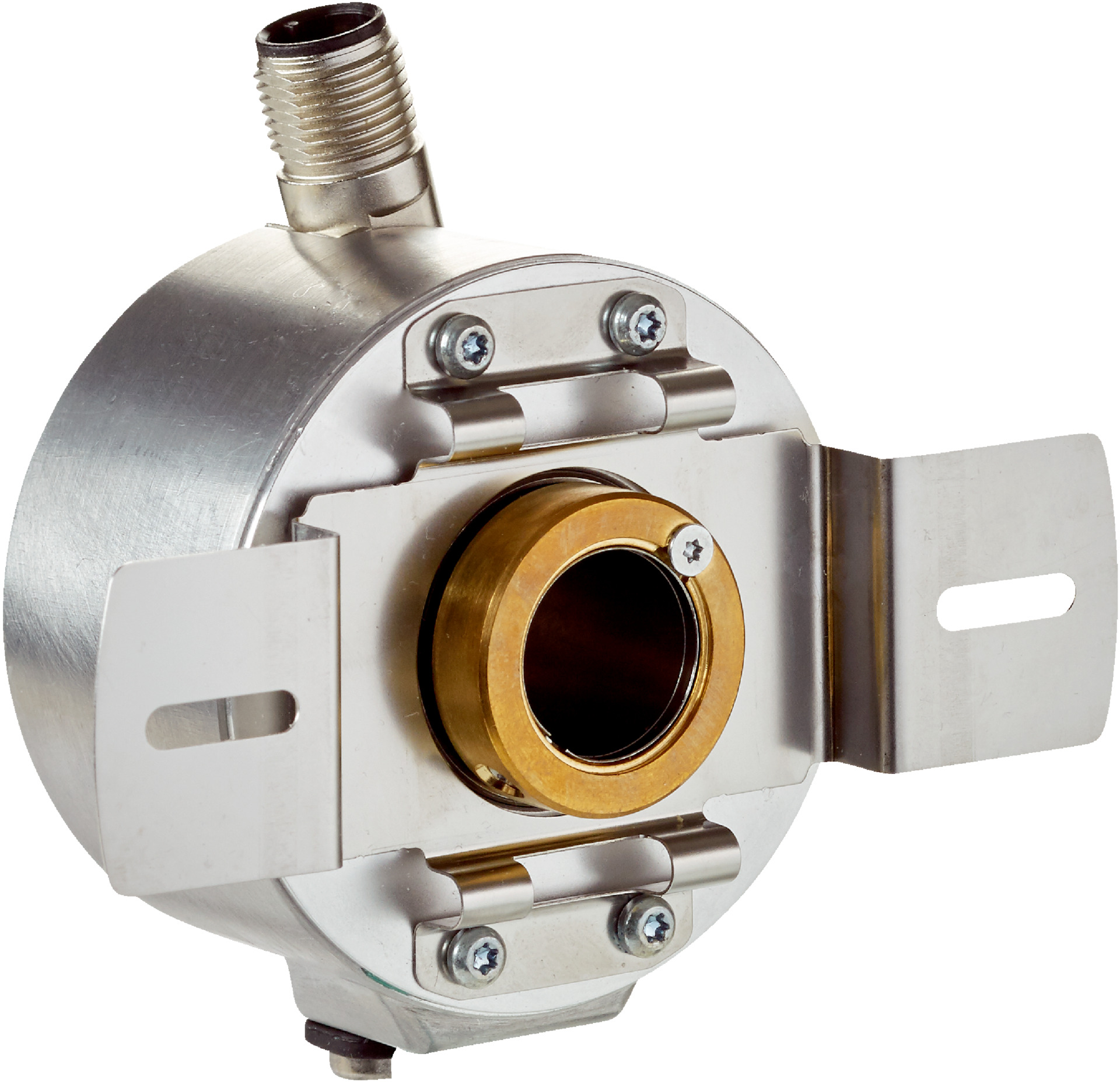

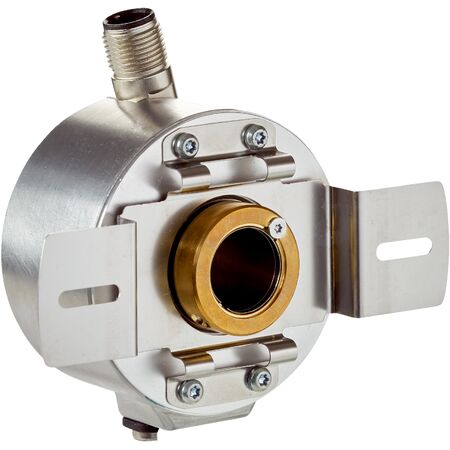

Incremental Encoder DUS60E-BJKC0ACA | IP65 Rated | 6-Channel Output | High Speed Up to 1500 RPM | by SICK
The Incremental Encoder DUS60E-BJKC0ACA is designed for precision in industrial automation, featuring a robust IP65 rated enclosure and a high-speed capability of up to 1500 min⁻¹. With a 6-channel output and programmable DIP switch parameters, it’s perfect for position and speed measurement in machinery, robotics, and conveyor systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DUS60E-BJKC0ACA | IP65 Rated | 6-Channel Output | High Speed Up to 1500 RPM | by SICK
Brand: SICK
SKU: 1084471
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK encoder DUS60E
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Output frequency: > 60 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 120 mA (without load)
- Supply voltage: 4.75 to 30 V
- Connection type: Male connector, M12, 8-pin
- Reference signal: 1, 180° electric, gated with A
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.4 Ncm at +20 °C
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: –30 °C to +90 °C
- Storage temperature range: –40 °C to +75 °C
- Resistance to shocks: 100 g (EN 60068-2-27)
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with TTL/HTL selectable output
- 6-channel output with programmable DIP switch parameters
- Blind hollow shaft mechanical design with 5/8″ front clamp shaft diameter
- High operating speed up to 1,500 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.5 Ncm and operating torque of 0.4 Ncm
- Operating temperature range from –30 °C to +90 °C
- High bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Position and speed measurement in machinery
- Robotics and conveyor systems
- Rotational speed monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUS60E-BJKC0ACA incremental encoder is available for immediate purchase, ideal for industrial automation and machinery position sensing applications.
