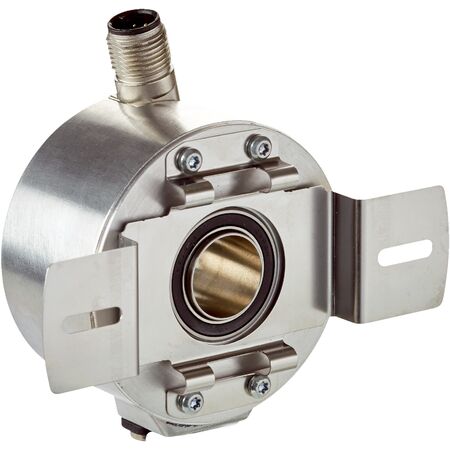

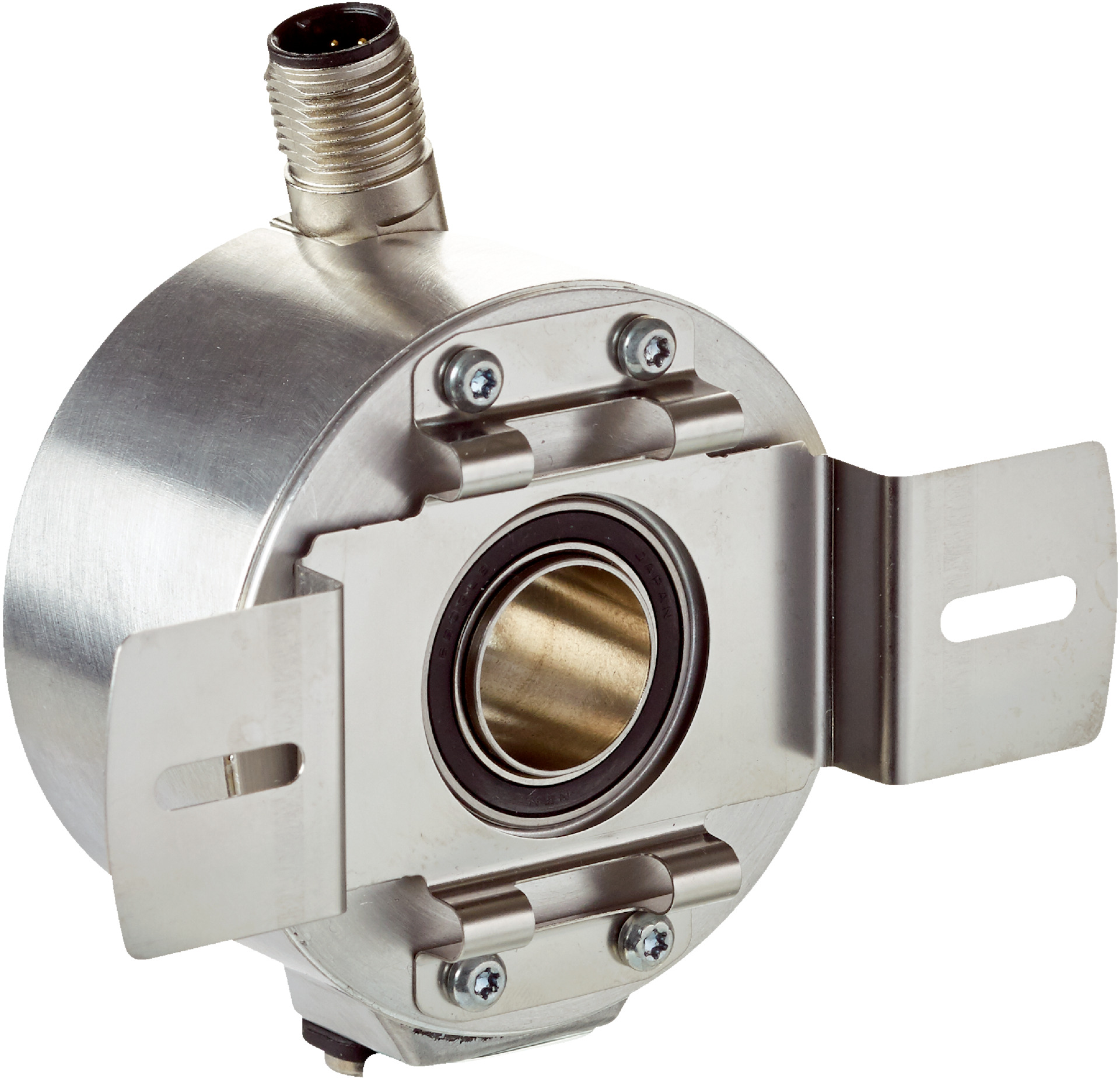

Incremental Encoder DUS60E-RCKF0CAB | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
The Incremental Encoder DUS60E-RCKF0CAB features a robust 6-channel output and an incremental communication interface with selectable TTL/HTL output. Designed for industrial automation, it operates efficiently in temperatures from -30°C to +90°C, making it ideal for position and speed measurement in machinery and robotics. With an IP65 rating, it ensures protection against dust and water, enhancing its reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DUS60E-RCKF0CAB | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
Brand: SICK
SKU: 1103145
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL/HTL selectable
- Number of signal channels: 6
- Output function: A and Direction Output
- Initialization time: < 5 ms
- Output frequency: up to 60 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 120 mA (without load)
- Power consumption: ≤ 1.25 W (without load)
- Connection type: Male connector, M12, 4-pin
- Supply voltage: 4.75 to 30 V
- Mechanical design: Through hollow shaft with 3/8” rear clamping
- Flange type: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm
- Shaft material: Stainless steel
- Housing material: Aluminum
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.4 Ncm at +20 °C
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 1,500 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30 °C to +90 °C
- Storage temperature range: -40 °C to +75 °C
- Resistance to shocks: 100 g (EN 60068-2-27)
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with TTL/HTL selectable output
- 6-channel output with programmable DIP switch parameters
- High output frequency up to 60 kHz
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +90°C
- Anti-dither function and reverse polarity protection
- Short-circuit protection on outputs
- Low start-up and operating torque for efficient operation
- High bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial electrical standards to ensure proper configuration and safety.
Applications
- Industrial automation and control systems
- Position and speed measurement in machinery
- Robotics and conveyor systems
- Safety-related monitoring in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W reduces energy usage
- Compliance with China RoHS supports reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUS60E-RCKF0CAB incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
