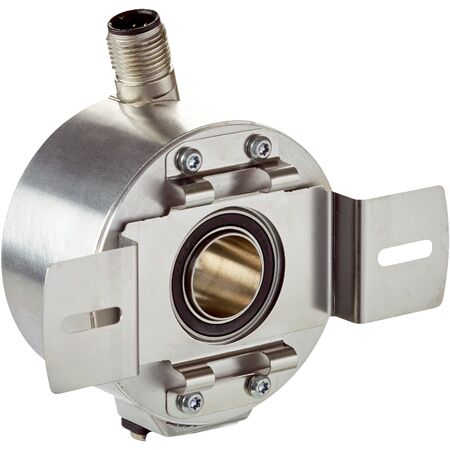

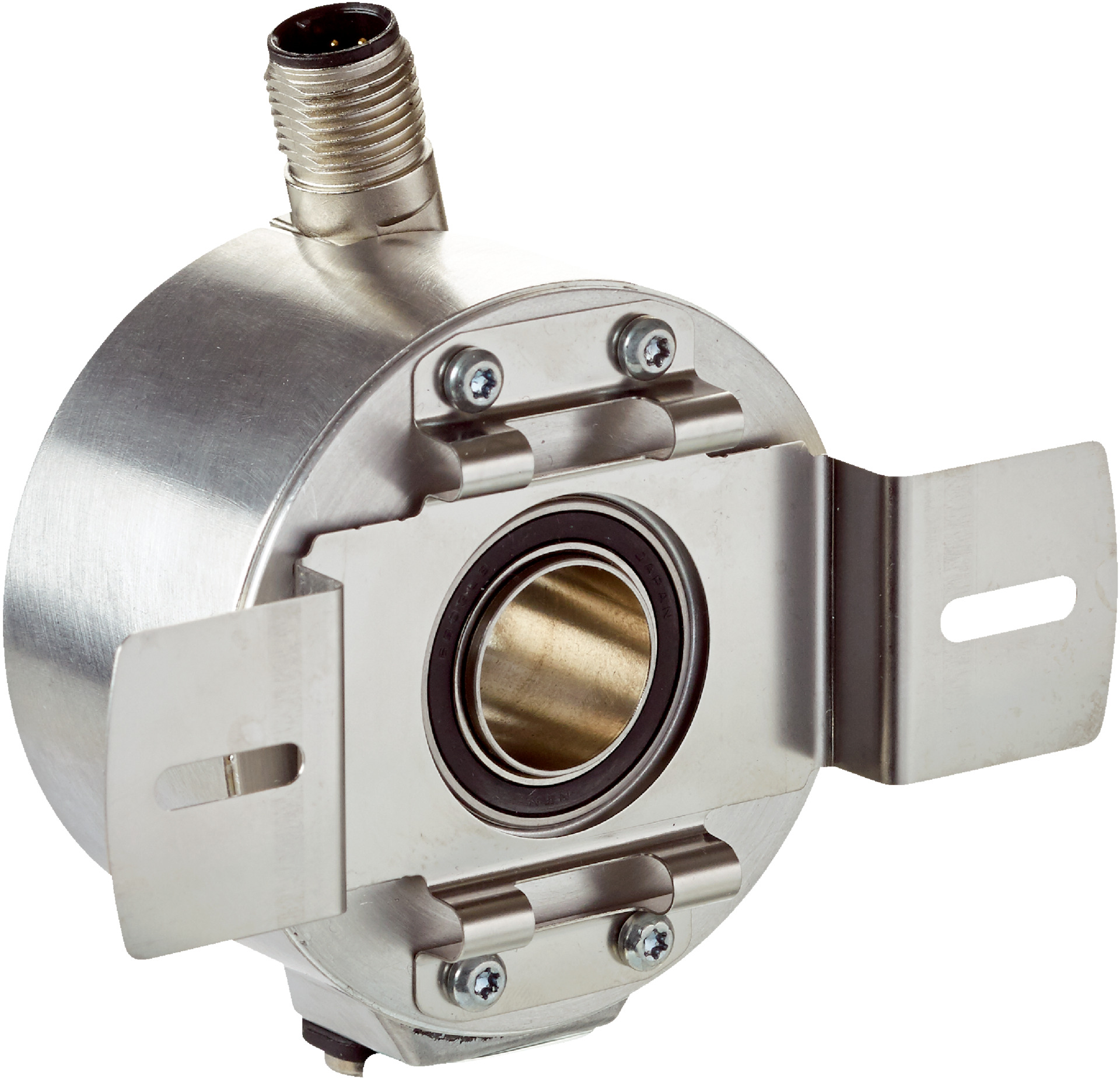

Incremental Encoder DUS60E-RDKF0ACA | 6 Signal Channels | TTL/HTL Interface | IP65 Rated | by SICK
The Incremental Encoder DUS60E-RDKF0ACA features 6 signal channels and a TTL/HTL communication interface, making it ideal for industrial automation and precise speed measurement. With a robust aluminum housing and stainless steel shaft, it operates at speeds up to 1,500 min⁻¹ and is IP65 rated for dust and water resistance, ensuring reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DUS60E-RDKF0ACA | 6 Signal Channels | TTL/HTL Interface | IP65 Rated | by SICK
Brand: SICK
SKU: 1085187
Alternatively Known As: Incremental rotary encoder, shaft encoder, rotary position sensor, SICK encoder DUS60E
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Error limits: Measuring step deviation x 3
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Output function: A and B output
- Initialization time: < 5 ms
- Output frequency: > 60 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 120 mA (without load)
- Power consumption: ≤ 1.25 W (without load)
- Connection type: Male connector, M12, 4-pin
- Supply voltage: 4.75 to 30 V
- Reference signal: 1 at 180°, gated with A
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 10 mm rear clamping
- Flange type: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start-up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.4 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 1,500 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30 °C to +90 °C
- Storage temperature range: -40 °C to +75 °C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 6 signal channels
- Programmable via DIP switch for pulses per revolution, output voltage, and direction of rotation
- TTL / HTL communication interface
- Through hollow shaft mechanical design with 10 mm shaft diameter
- High operating speed up to 1,500 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for dust and water resistance
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.5 Ncm and operating torque of 0.4 Ncm
- Operating temperature range from -30 °C to +90 °C
- Complies with EMC standards EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation and control systems
- Position and speed measurement in machinery
- Robotics and conveyor systems
- Rotational speed monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.25 W reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUS60E-RDKF0ACA Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
