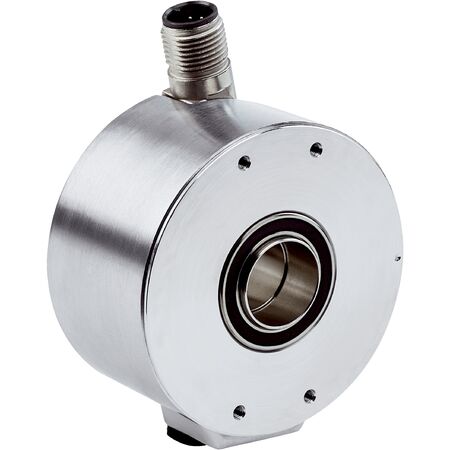

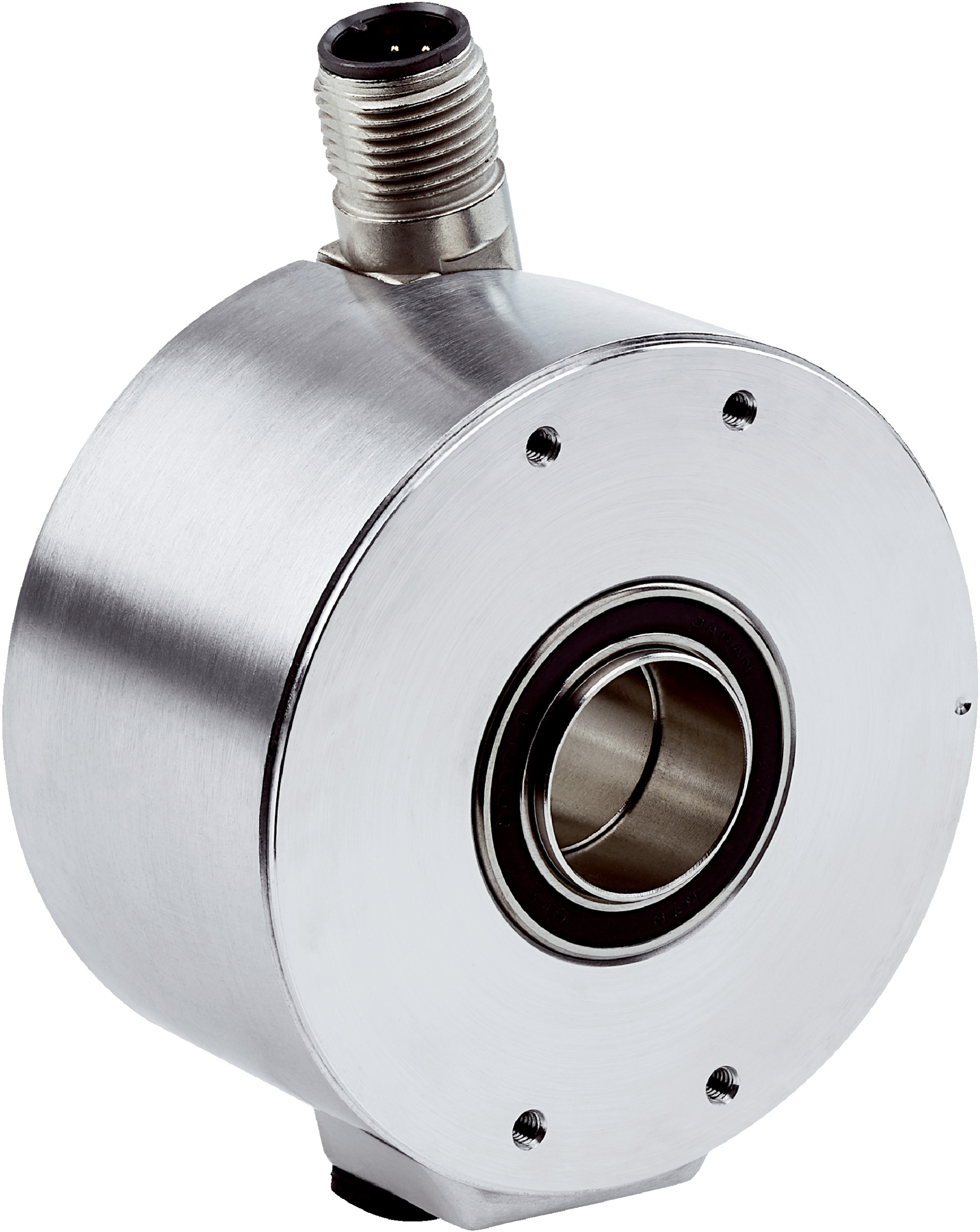

Incremental Encoder DUS60E-RHKCAAAA | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
The Incremental Encoder DUS60E-RHKCAAAA features a robust 6-channel output and high output frequency of up to 60 kHz, making it ideal for industrial automation and robotics applications. With a durable aluminum housing and IP65 enclosure rating, it ensures reliable performance in challenging environments, while its programmable DIP switch allows for easy customization to meet specific needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DUS60E-RHKCAAAA | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
Brand: SICK
SKU: 1111386
Alternatively Known As: Incremental rotary encoder, 6-channel encoder, TTL encoder, HTL encoder, hollow shaft encoder
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Duty cycle: ≤0.5 ±5%
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Programmable via DIP switch for pulses per revolution, output voltage, and direction
- Output frequency: up to 60 kHz
- Load current: ≤30 mA per channel
- Operating current: ≤120 mA without load
- Power consumption: ≤1.25 W without load
- Connection type: Male M12 8-pin connector
- Supply voltage: 4.75 to 30 V
- Reference signal: 1 at 180° gated with channel A
- Mechanical design: Through hollow shaft, 15 mm diameter
- Flange: Aluminum with 4 x M2.5 screws
- Housing material: Aluminum
- Start-up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible radial movement static: ±0.3 mm
- Permissible axial movement static: ±0.5 mm
- Operating speed: 1500 min⁻¹
- Moment of inertia: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature: -30°C to +90°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g
- Vibration resistance: 30 g from 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- 6-channel incremental output with programmable DIP switch parameters
- High output frequency up to 60 kHz
- Robust aluminum housing with IP65 enclosure rating
- Through hollow shaft design with 15 mm stainless steel shaft
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +90°C
- Low start-up torque of 0.5 Ncm and operating torque of 0.4 Ncm
- Bearing lifetime of 3.6 billion revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation equipment to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤1.25 W improves energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUS60E-RHKCAAAA Incremental Encoder is available for immediate purchase, ideal for industrial automation, robotics, and motion control applications.
