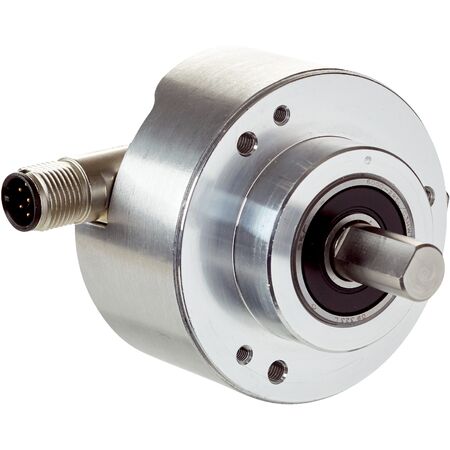

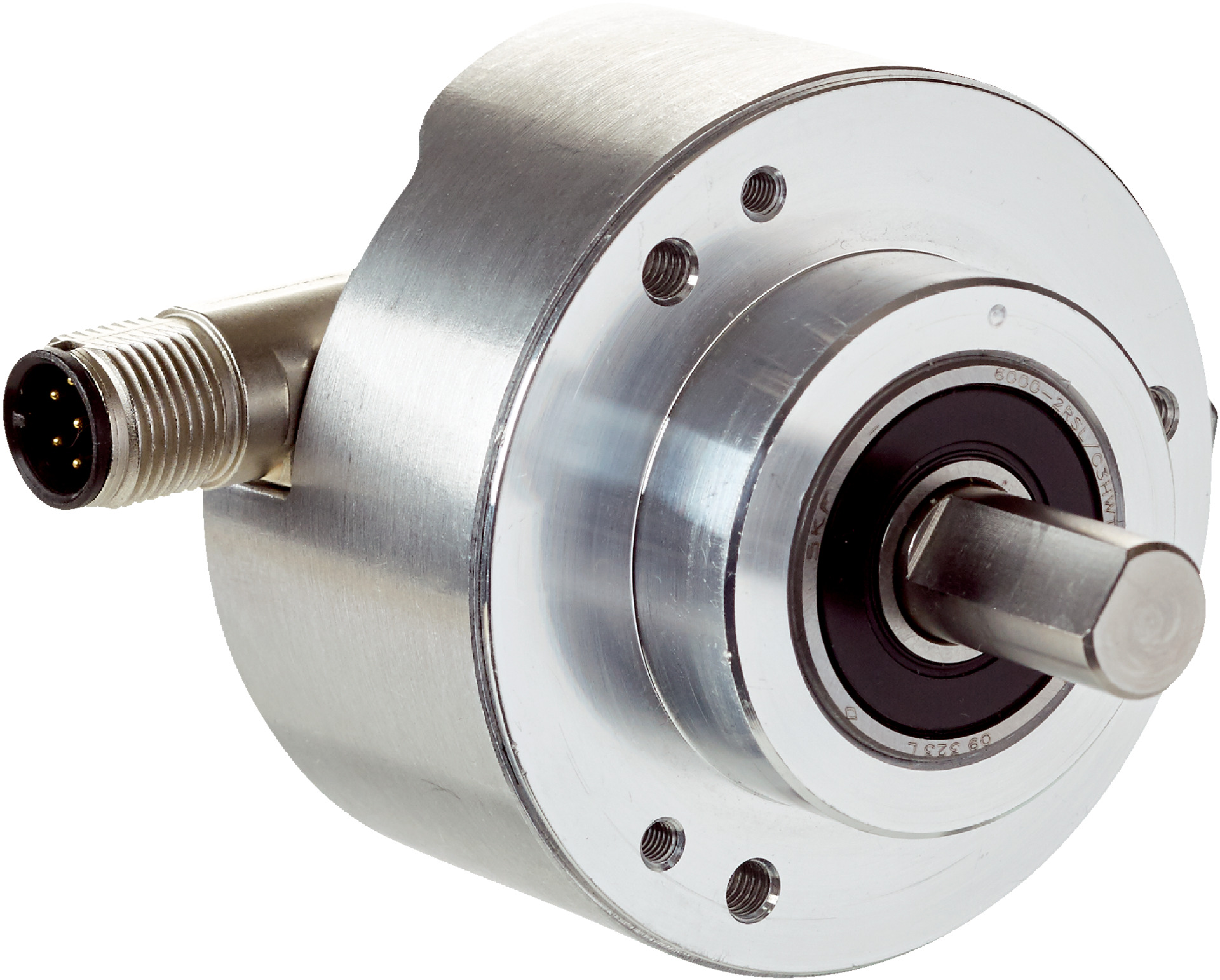

Incremental Encoder DUS60E-S4KC0ACA | 6-Channel Communication | IP65 Rated | by SICK
The Incremental Encoder DUS60E-S4KC0ACA features a 6-channel communication interface and operates at speeds up to 1,500 min⁻¹, making it ideal for industrial automation and robotics applications. With an IP65 rated enclosure, it ensures protection against dust and water, while its robust aluminum housing guarantees durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DUS60E-S4KC0ACA | 6-Channel Communication | IP65 Rated | by SICK
Brand: SICK
SKU: 1084488
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Output frequency: > 60 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 120 mA without load
- Supply voltage: 4.75 to 30 V
- Connection type: Male M12, 8-pin connector
- Reference signal: 1 at 180° electric, gated with A
- Start up torque: 1.2 Ncm at +20 °C
- Operating torque: 1.1 Ncm at +20 °C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 1,500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- Enclosure rating: IP65
- Operating temperature range: –30 °C to +90 °C
- Storage temperature range: –40 °C to +75 °C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- 6-channel incremental communication interface with TTL/HTL selectable output
- Programmable via DIP switch for pulses per revolution, output voltage, and direction of rotation
- Solid shaft with 10 mm diameter and face mount flange
- High operating speed up to 1,500 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Low startup torque of 1.2 Ncm and operating torque of 1.1 Ncm
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting.
Applications
- Industrial automation for position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤1.25 W improves energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DUS60E-S4KC0ACA incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
