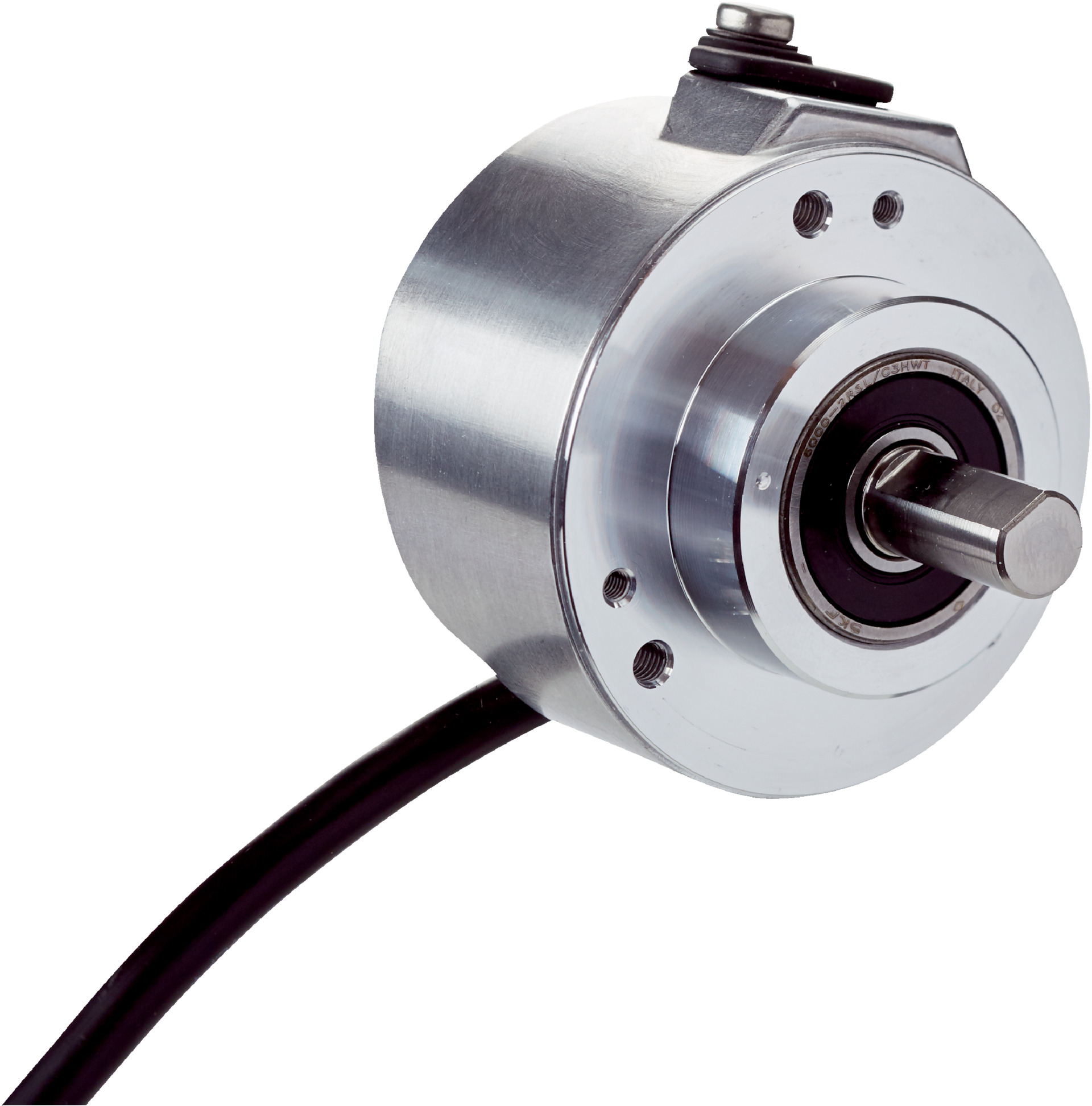

Incremental Encoder DUS60E-S7KK0AAA | 6-Channel Communication | IP65 Enclosure | by SICK
The Incremental Encoder DUS60E-S7KK0AAA is designed for precise position and speed measurement in industrial automation. With a robust aluminum housing and IP65 enclosure, it withstands harsh environments while offering a high operating speed of up to 1,500 min⁻¹. Ideal for robotics, conveyor systems, and machine tool feedback, this encoder features programmable settings for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DUS60E-S7KK0AAA | 6-Channel Communication | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1084209
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK encoder DUS60E
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Output frequency: > 60 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 120 mA without load
- Supply voltage: 4.75 to 30 V
- Connection type: 8-wire cable, 1.5 m length
- Reference signal: 1, positioned at 180°, gated with A
- Shaft diameter: 3/8" with flat
- Flange type: Face mount flange with 3 x M3 or 3 x M4 screws
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature: –30 °C to +90 °C
- Storage temperature: –40 °C to +75 °C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 90mm x 60mm
- Weight: 0.3 kg
Key Features
- 6-channel incremental communication interface with TTL/HTL selectable output
- Programmable via DIP switch for pulses per revolution, output voltage, and direction of rotation
- Solid shaft with 3/8" diameter and face mount flange
- High operating speed up to 1,500 min⁻¹
- Robust aluminum housing with IP65 enclosure rating
- Reverse polarity and short-circuit protection
- Low start-up torque of 1.2 Ncm and operating torque of 1.1 Ncm
- Operating temperature range from –30 °C to +90 °C
- High resistance to shocks (100 g) and vibration (30 g, 10 Hz to 2,000 Hz)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation equipment to ensure proper wiring and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤1.25 W improves energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUS60E-S7KK0AAA Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
