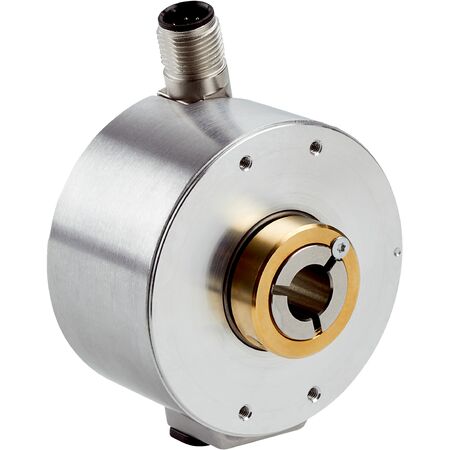

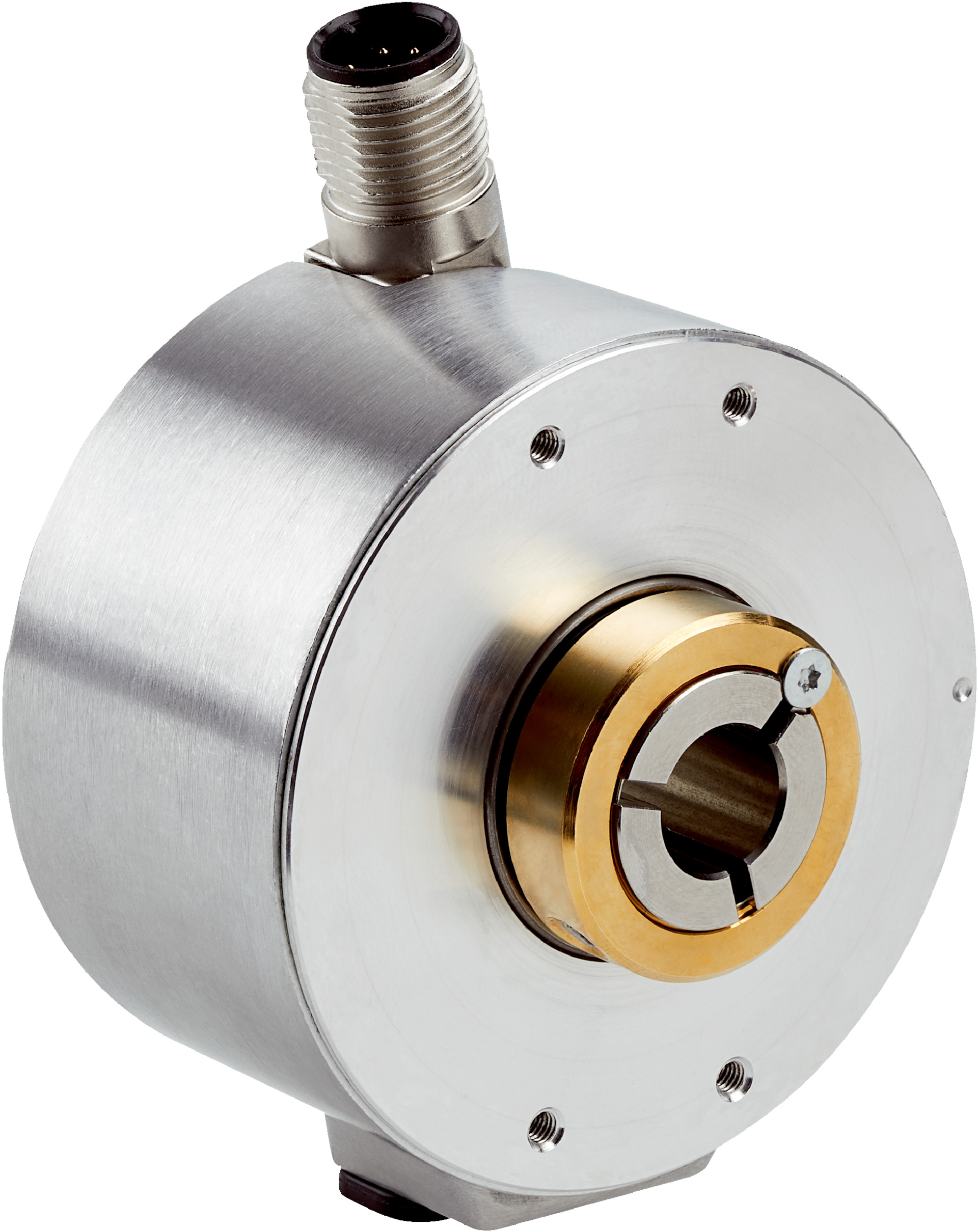

Incremental Encoder DUS60E-TCKFACGB | 90° Measuring Step | IP65 Enclosure | High Speed 1500 min⁻¹ | by SICK
The DUS60E-TCKFACGB incremental encoder is designed for precise position and speed measurement in industrial automation. With a 90° measuring step and robust IP65 enclosure, it ensures reliable performance in harsh environments. Ideal for robotics and motion control systems, this encoder features a high operating speed of up to 1500 min⁻¹ and is built to withstand shocks and vibrations, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DUS60E-TCKFACGB | 90° Measuring Step | IP65 Enclosure | High Speed 1500 min⁻¹ | by SICK
Brand: SICK
SKU: 1093714
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Output frequency: > 60 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 120 mA without load
- Supply voltage: 4.75 to 30 V
- Connection type: Male connector, M12, 4-pin
- Reference signal: 1 at 180° electric, gated with A
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.4 Ncm at +20 °C
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: –30 °C to +90 °C
- Storage temperature range: –40 °C to +75 °C
- Resistance to shocks: 100 g (EN 60068-2-27)
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with TTL/HTL signals
- 6-channel output with programmable DIP switch parameters
- Through hollow shaft mechanical design with 3/8″ front clamp
- High operating speed up to 1,500 min⁻¹
- Robust aluminum housing and flange with IP65 enclosure rating
- Anti-dither and reverse polarity protection included
- Short-circuit protection on outputs
- Operating temperature range from –30 °C to +90 °C
- High resistance to shocks (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of DIP switches for desired output settings.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤1.25 W reduces energy usage
- Durable design extends product life and reduces waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUS60E-TCKFACGB incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
