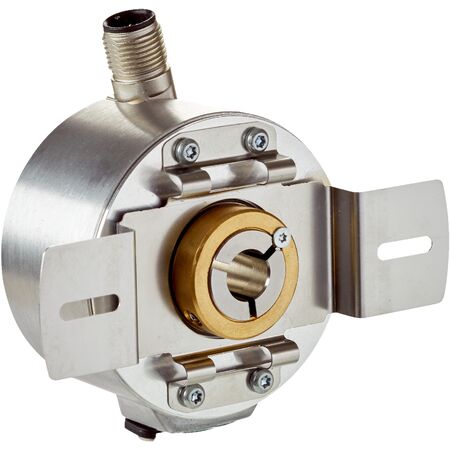

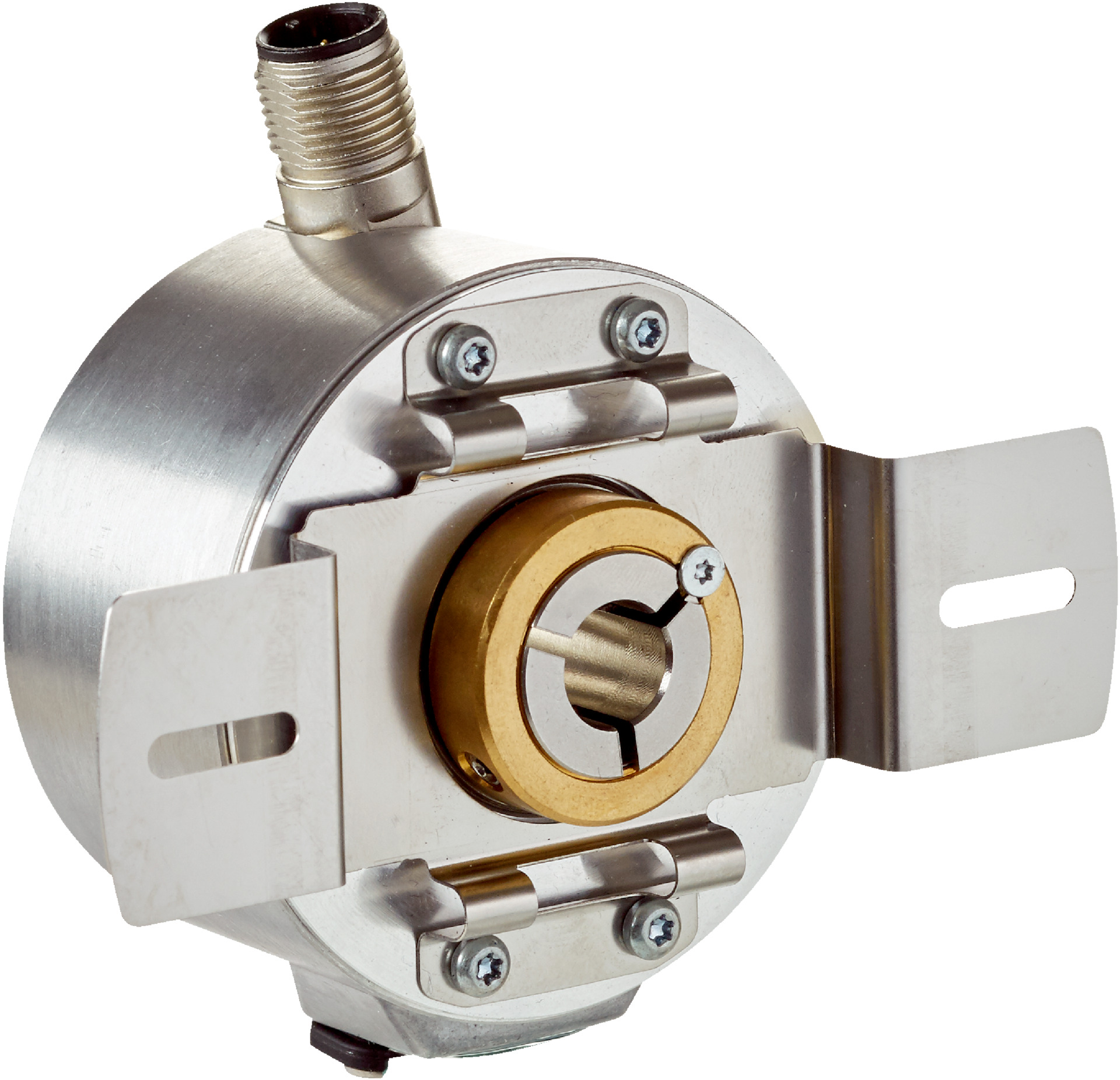

Incremental Encoder DUS60E-TJKC0ABA | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
The Incremental Encoder DUS60E-TJKC0ABA is designed for precise rotational position and speed measurement in industrial automation. With a robust mechanical design, it features a 6-channel output and selectable TTL/HTL communication interface, making it ideal for machine tool feedback and robotics applications. Its IP65 rating ensures protection against dust and water, while the operating temperature range of -30°C to +90°C allows for versatile use in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DUS60E-TJKC0ABA | 6-Channel Output | IP65 Rated | High Output Frequency | by SICK
Brand: SICK
SKU: 1084476
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL/HTL selectable
- Number of signal channels: 6
- Output frequency: up to 60 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 120 mA without load
- Power consumption: ≤ 1.25 W without load
- Connection type: Male connector, M12, 8-pin
- Supply voltage: 4.75 to 30 V
- Shaft diameter: 5/8 inch front clamp
- Flange type: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.4 Ncm at +20 °C
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65
- Operating temperature range: -30 °C to +90 °C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with TTL/HTL selectable output
- 6-channel output with programmable DIP switch parameters
- High output frequency up to 60 kHz
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +90°C
- Reverse polarity and short-circuit protection
- Low start-up and operating torque for minimal mechanical load
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial electrical standards to ensure proper connection and safety compliance.
Applications
- Industrial automation and control systems
- Rotational position and speed measurement
- Machine tool feedback
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤1.25 W reduces energy usage
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUS60E-TJKC0ABA Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
