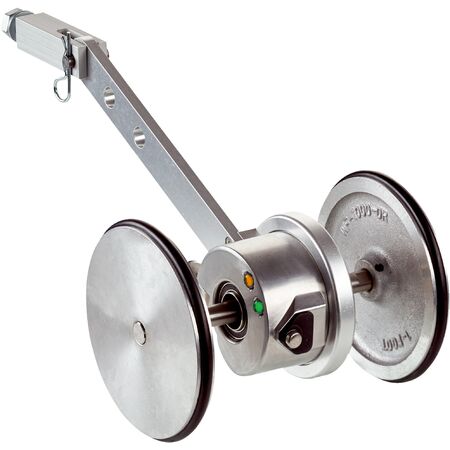

Incremental Encoder DUV60E-32KCKCAA | 1 to 2400 Pulses/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
The DUV60E-32KCKCAA incremental encoder is designed for precise position and speed measurement in industrial automation. With adjustable pulses per revolution from 1 to 2400 and an IP65 rated enclosure, it ensures reliable performance in conveyor belt systems and machine tool feedback applications. Built with a robust aluminum housing and stainless steel shaft, this encoder is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2400
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 300 mm with O-ring NBR70 surface
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max deflection: 40 mm with recommended pretension 20 mm
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2400
- Robust aluminum housing and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Spring arm design with over-belt yoke mount and O-ring measuring wheel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and industrial automation systems to ensure proper mounting, wiring, and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate length measurement
- Machine tool feedback and control
- Material handling and packaging machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DUV60E-32KCKCAA incremental encoder is available for immediate purchase, ideal for industrial automation and conveyor system applications.
