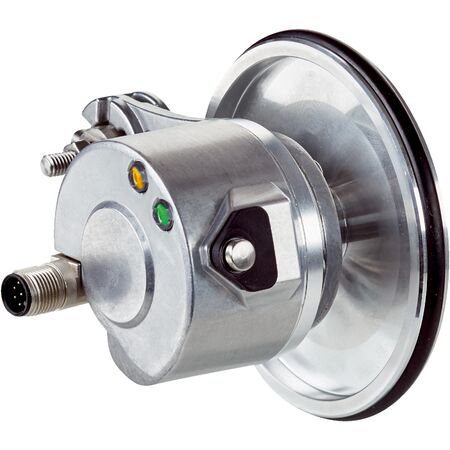

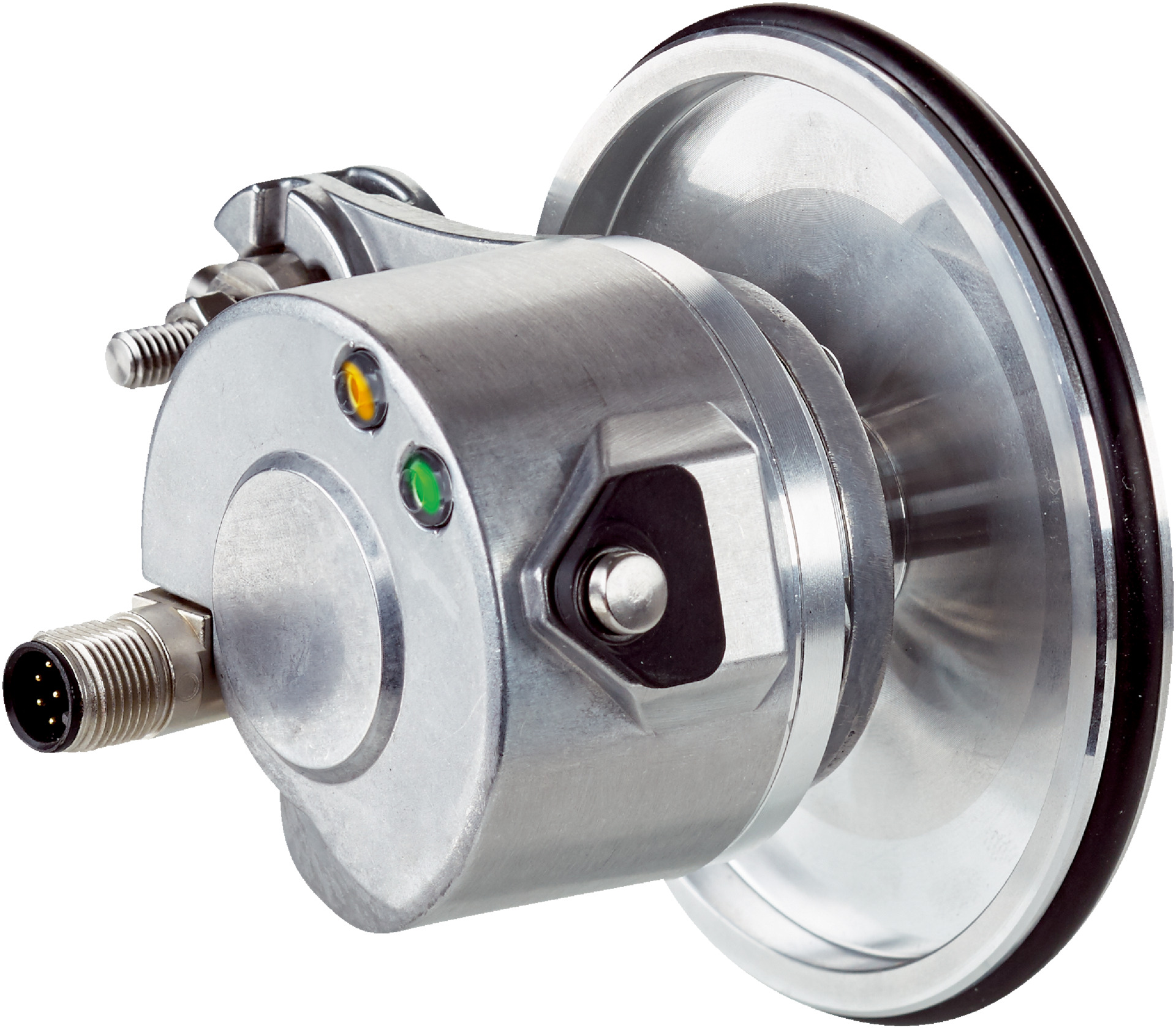

Incremental Encoder DUV60E-32KFAABA | High Reliability | IP65 Enclosure | 60 kHz Output | by SICK
The Incremental Encoder DUV60E-32KFAABA is engineered for precision in industrial automation, featuring a high reliability with an MTTFD of 275 years and an IP65 enclosure for robust performance. Ideal for applications like conveyor systems and robotics, it offers a maximum output frequency of 60 kHz and operates within a temperature range of -30°C to +70°C, ensuring accurate position and speed measurement in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 2048 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Power consumption max (no load): ≤1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Connection type: Male M12, 4-pin connector
- Operating speed: 1500 min⁻¹
- Start up torque: 1.2 Ncm
- Operating torque: 1.1 Ncm
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.45 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Selectable output via DIP switch
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -30°C to +70°C
- Spring arm design with measuring wheel circumference of 300 mm
- Reverse polarity and short-circuit protection
- Maximum output frequency of 60 kHz
- Bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor systems requiring accurate pulse output
- Machine tools and robotics for motion control
- Material handling and packaging machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Low power consumption of ≤1.25 W minimizes energy use
- Robust design reduces environmental impact from damage and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-32KFAABA incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
