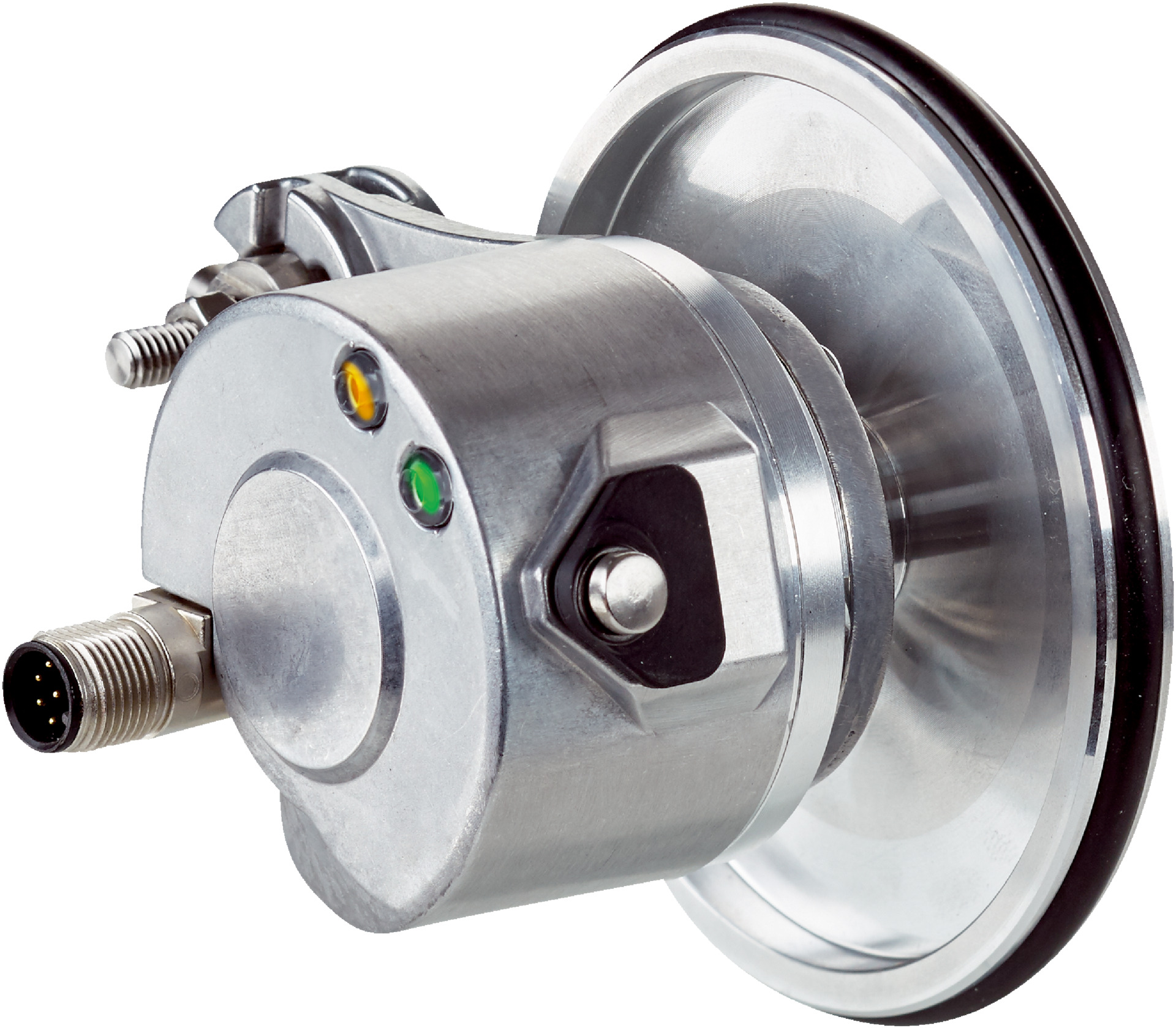

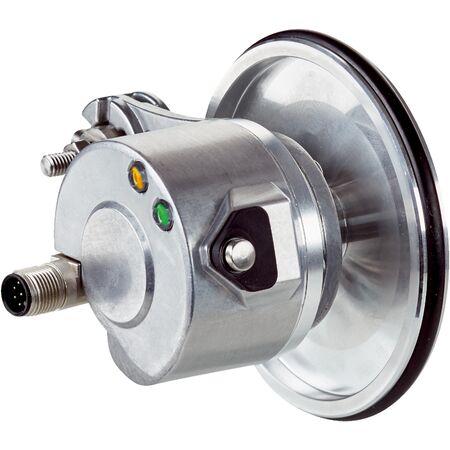

Incremental Encoder DUV60E-32KFBABA | 275 Years MTTFD | IP65 Enclosure | by SICK
The Incremental Encoder DUV60E-32KFBABA offers high reliability with an impressive MTTFD of 275 years, making it perfect for industrial automation applications. With adjustable pulses per revolution from 1 to 2048 and a robust IP65-rated aluminum housing, this encoder ensures precise position and speed measurement in challenging environments. Ideal for conveyor systems, machine tools, and robotics, it features low power consumption and reverse polarity protection for enhanced safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 2048
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Connection type: Male connector, M12, 4-pin
- Output voltage and direction of rotation supported
- Power consumption max without load: ≤ 1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 300 mm
- Materials: Shaft stainless steel, flange and housing aluminum, cable PVC
- Start up torque: 1.2 Ncm, Operating torque: 1.1 Ncm
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max travel/deflection: 14 mm
- Recommended pretension: 10 mm
- Service life of spring element: > 1.4 million cycles
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.45 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2048
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -30°C to +70°C
- Spring arm design with measuring wheel circumference of 300 mm
- Reverse polarity and short-circuit protection
- Low power consumption max 1.25 W
- High maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor systems monitoring
- Machine tool feedback
- Robotics and motion control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DUV60E-32KFBABA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
