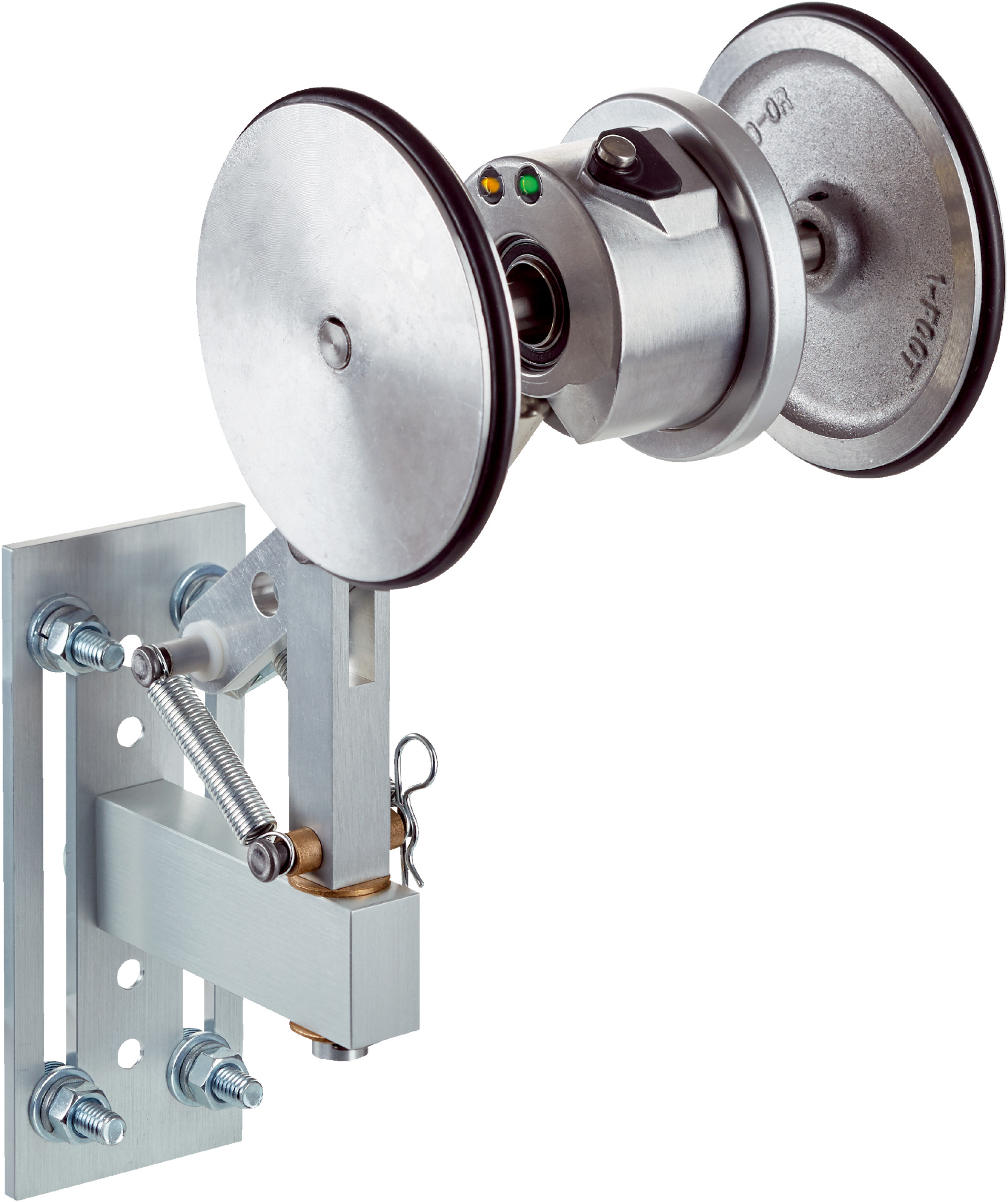

Incremental Encoder DUV60E-32KFHAAA | IP65 Rated | Adjustable Pulses | Robust Aluminum Housing | by SICK
The DUV60E-32KFHAAA incremental encoder is designed for precise position and speed measurement in industrial automation. With adjustable pulses per revolution from 1 to 2400 and a robust aluminum housing rated IP65, it’s perfect for conveyor belt systems and machine tool feedback. Built for reliability, it features reverse polarity protection and operates in temperatures from -30°C to +70°C, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2400
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Connection type: Male connector, M12, 4-pin
- Output voltage and direction of rotation signals included
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection
- Measuring wheel circumference: 300 mm
- Materials: Shaft stainless steel, flange aluminum, housing aluminum, cable PVC
- Spring arm mechanism materials: spring steel, aluminum components
- Start up torque: 0.5 Ncm, operating torque: 0.4 Ncm
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum spring arm deflection: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating humidity: up to 90% (no condensation)
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2400
- Robust aluminum housing with IP65 protection rating
- Operating temperature range from -30°C to +70°C
- Spring arm design with under-belt flange mount and O-ring NBR70 measuring wheel
- Reverse polarity and short-circuit protection on outputs
- Maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate length measurement
- Machine tool feedback systems
- Material handling and packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DUV60E-32KFHAAA incremental encoder is available for immediate purchase, ideal for industrial automation and conveyor system applications.
