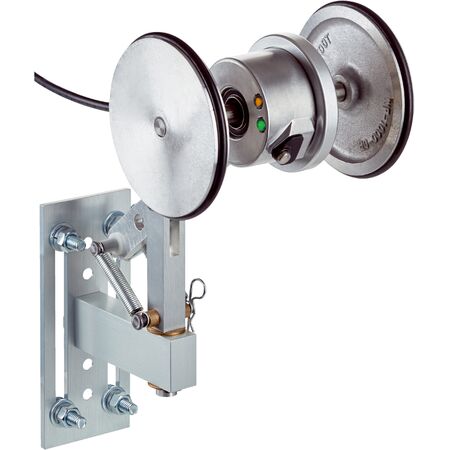

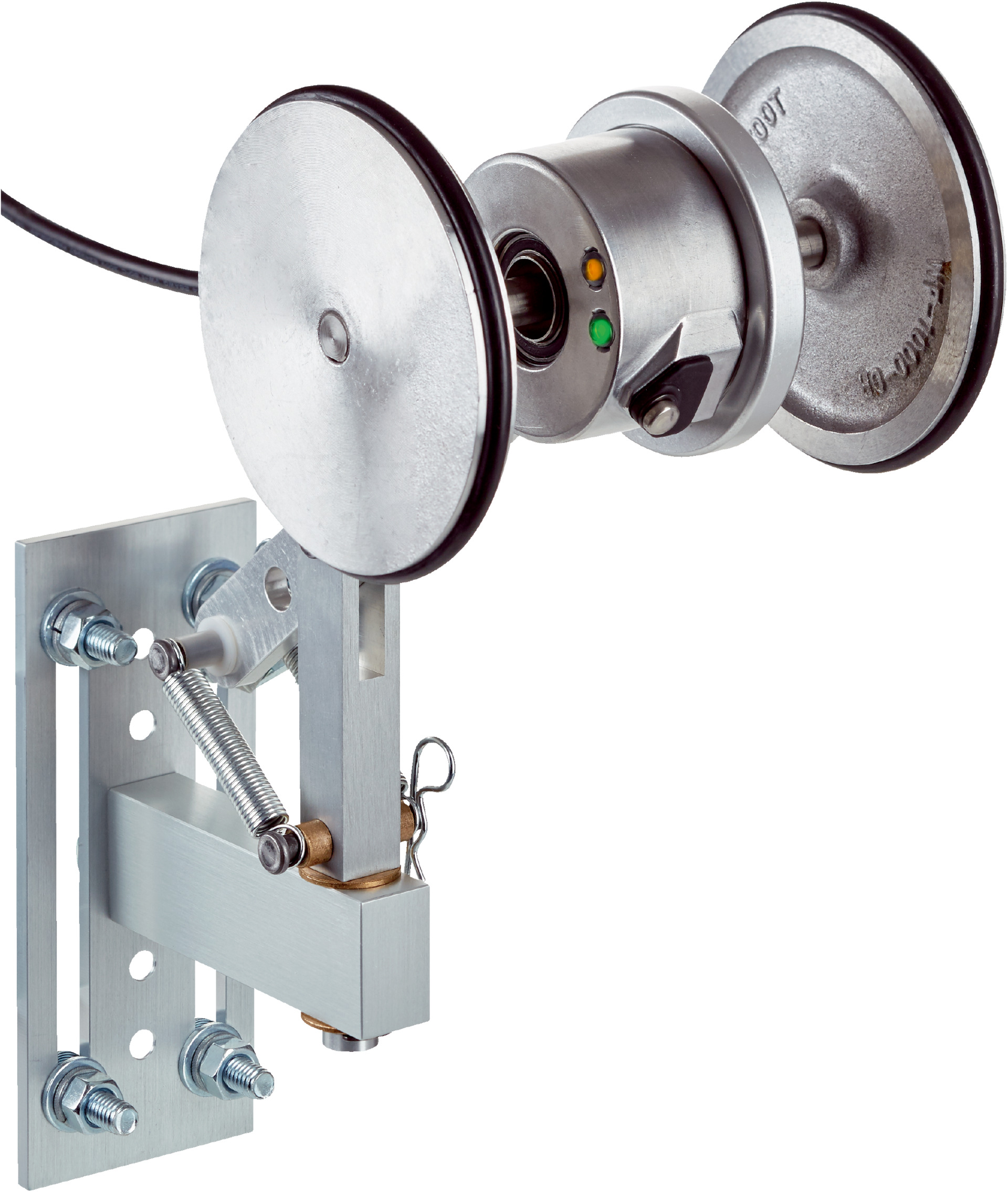

Incremental Encoder DUV60E-32KKHABA | IP65 Rated | Adjustable Pulses | Spring Arm Design | by SICK
The Incremental Encoder DUV60E-32KKHABA is engineered for precision in industrial automation, featuring adjustable pulses per revolution from 1 to 2048 and an IP65 rated enclosure for dust and water protection. With a robust aluminum housing and a spring arm design, it ensures reliable performance in conveyor systems and machine tools, making it ideal for accurate position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2048 (selectable)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1, positioned at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 300 mm with O-ring NBR70 surface
- Spring arm mechanism with aluminum components and spring steel element
- Operating speed up to 1,500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL signals
- Adjustable pulses per revolution from 1 to 2048
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection on outputs
- Spring arm design with O-ring NBR70 measuring wheel for belt contact
- Low operating torque of 0.4 Ncm and start-up torque of 0.5 Ncm
- High bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate length measurement
- Machine tool feedback and control
- Material handling and packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W reduces energy usage
- Robust construction extends product lifecycle in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-32KKHABA incremental encoder is available for immediate purchase, ideal for industrial automation and conveyor system applications.
