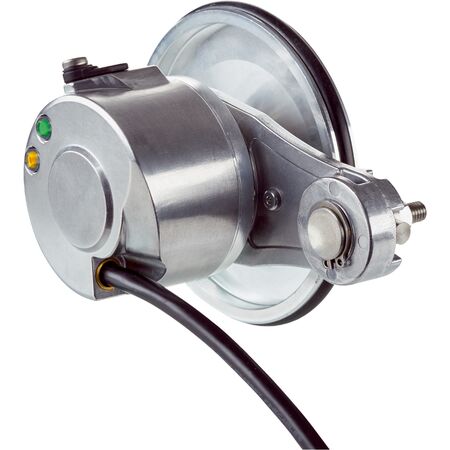

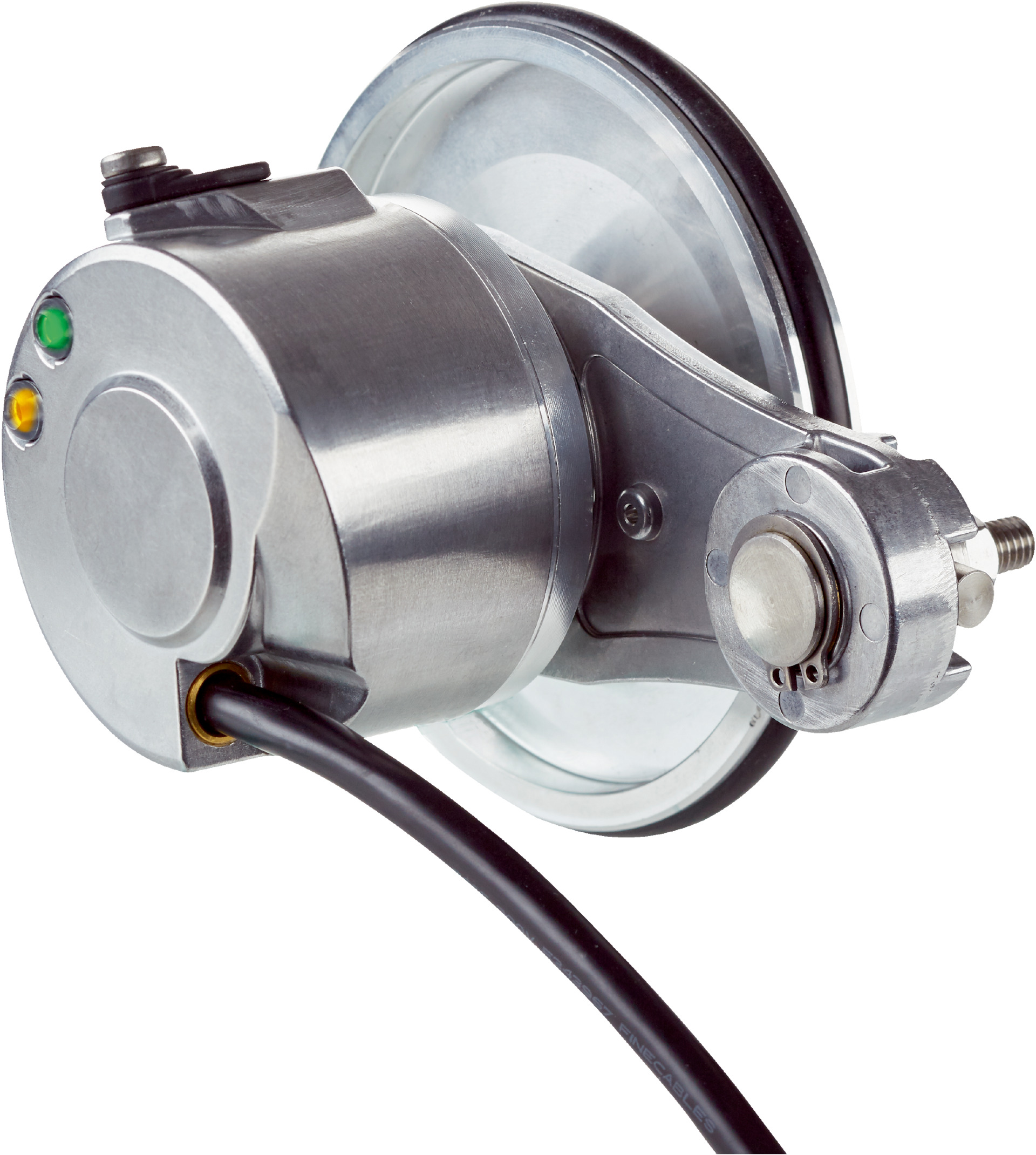

Incremental Encoder DUV60E-32KMAAAA | 1 to 2400 Pulses/Rev | IP65 Rated | by SICK
The Incremental Encoder DUV60E-32KMAAAA is designed for industrial automation, offering adjustable pulses per revolution from 1 to 2400 and an IP65 rated enclosure for dust and water protection. With a robust aluminum housing and a measuring wheel, it ensures precise position and speed measurement, making it ideal for conveyor systems and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2400
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 300 mm
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 120mm x 60mm
- Weight: 0.45 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2400
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection on outputs
- Spring arm design with aluminum measuring wheel and spring steel spring element
- Low operating torque of 1.1 Ncm and start-up torque of 1.2 Ncm
- High bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation equipment to ensure proper wiring and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor systems requiring accurate travel monitoring
- Machine tool feedback systems
- Robotics and material handling equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W contributes to energy efficiency
- Long service life of spring element (>1.4 million cycles) supports sustainability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-32KMAAAA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
