Incremental Encoder DUV60E-D4KFHACA | 275 Years MTTFD | IP65 Protection | by SICK

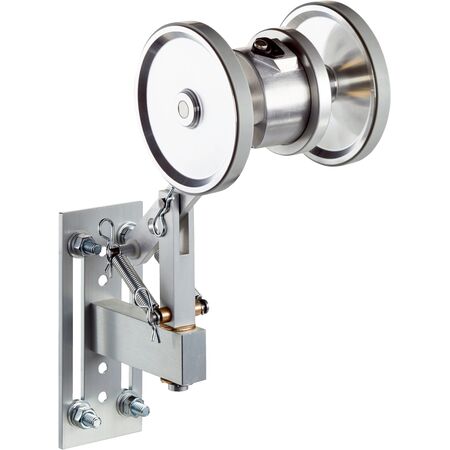

The Incremental Encoder DUV60E-D4KFHACA is engineered for precision in industrial automation, featuring a remarkable MTTFD of 275 years and an adjustable pulse range from 1 to 1800. With its robust aluminum housing and IP65 protection, this encoder is perfect for conveyor belt systems and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

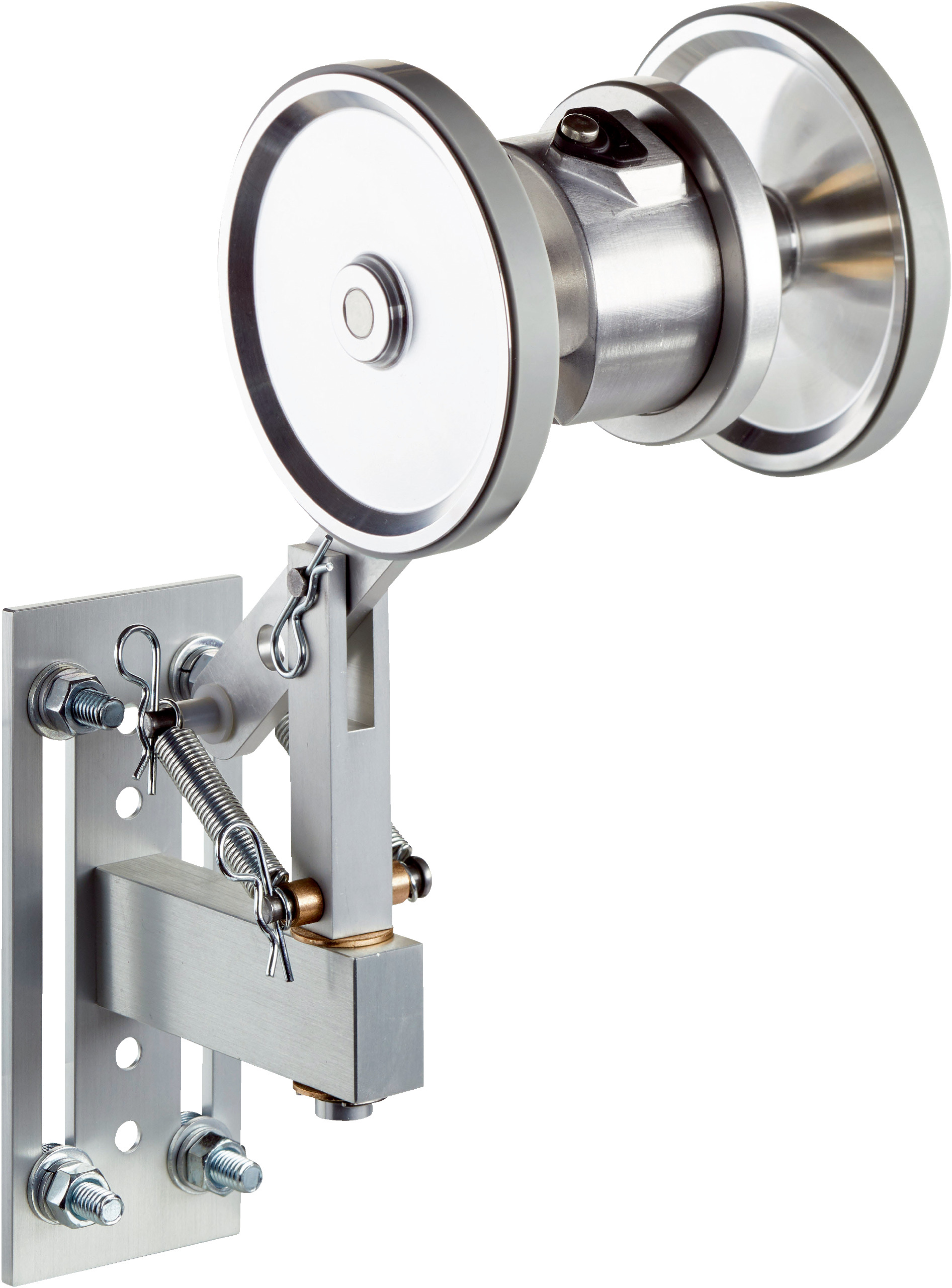

Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1800
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤ 30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection
- Measuring wheel circumference: 12 inches
- Materials: Shaft - Stainless steel, Flange - Aluminum, Housing - Aluminum, Cable - PVC
- Operating torque: 0.4 Ncm, Start up torque: 0.5 Ncm
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1800
- Robust aluminum housing with IP65 protection rating
- Operating temperature range from -30°C to +70°C
- Spring arm design with under-belt flange mount for stable measurement
- Reverse polarity and short-circuit protection on outputs
- Low power consumption with max 1.25 W and 120 mA no load current
