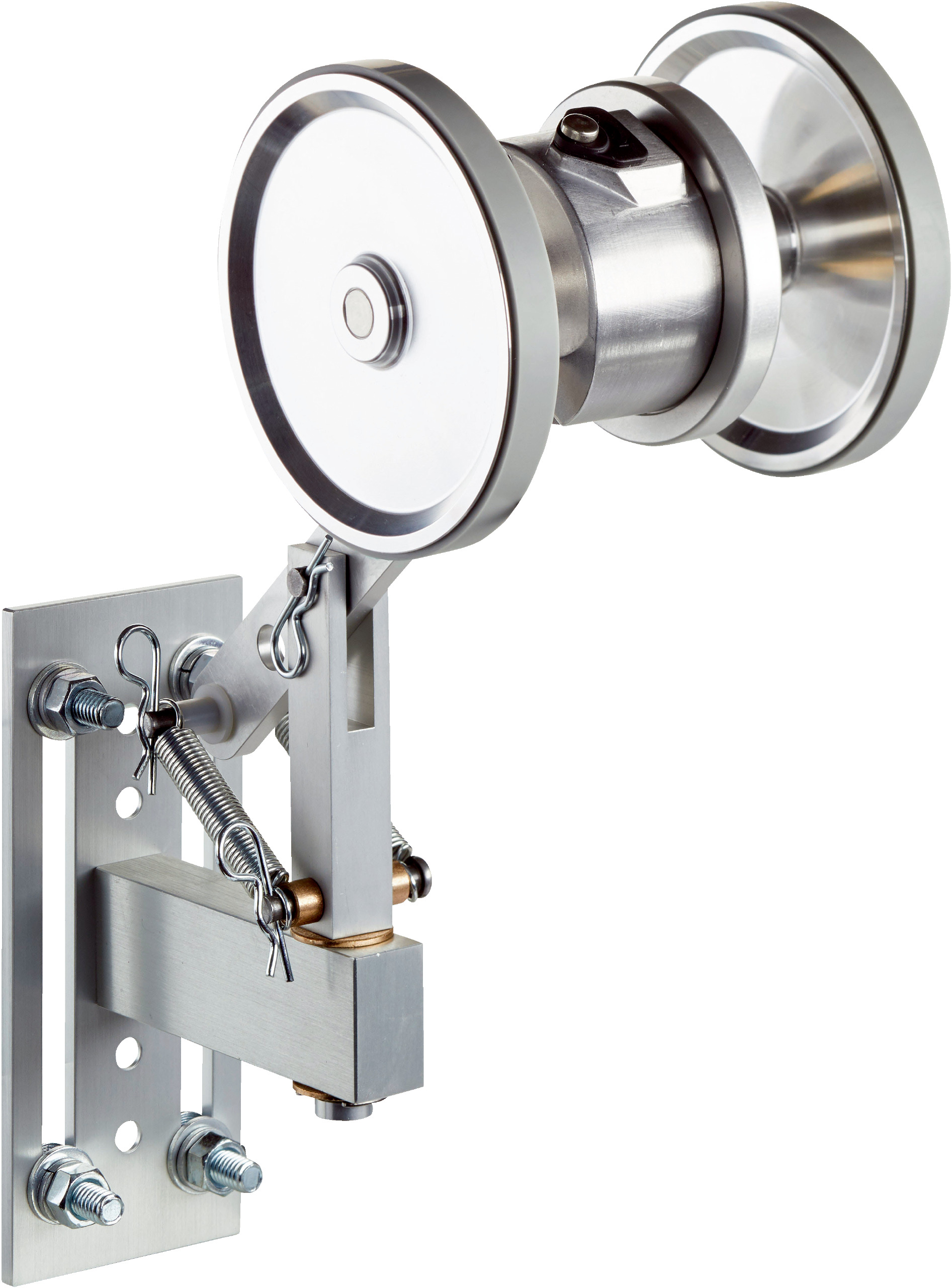

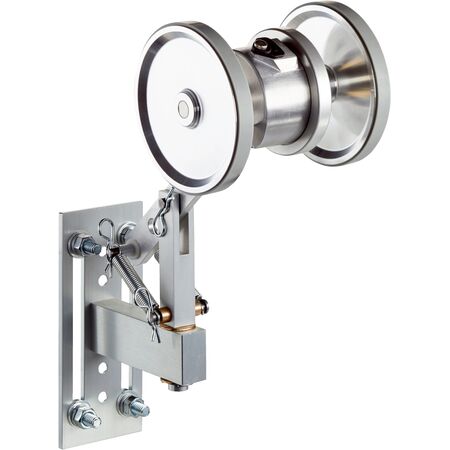

Incremental Encoder DUV60E-D4KFHADA | 275 Years MTTFD | IP65 Enclosure | by SICK
The Incremental Encoder DUV60E-D4KFHADA is engineered for precision in industrial automation, featuring a remarkable MTTFD of 275 years and an IP65 enclosure for durability. With adjustable pulses per revolution from 1 to 1500, it’s perfect for conveyor belt systems and robotics, ensuring accurate position and speed measurement in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1500
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Connection: Male M12, 4-pin connector
- Output voltage and direction of rotation signals included
- Power consumption max without load: ≤ 1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection
- Measuring wheel circumference: 12 inches
- Measuring wheel surface: Smooth plastic (urethane)
- Spring arm mechanism materials: spring steel, aluminum components
- Start up torque: 0.5 Ncm, Operating torque: 0.4 Ncm
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum spring arm deflection: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating humidity: up to 90% (no condensation)
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
