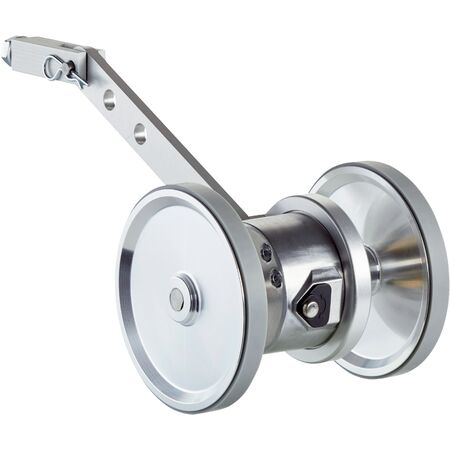

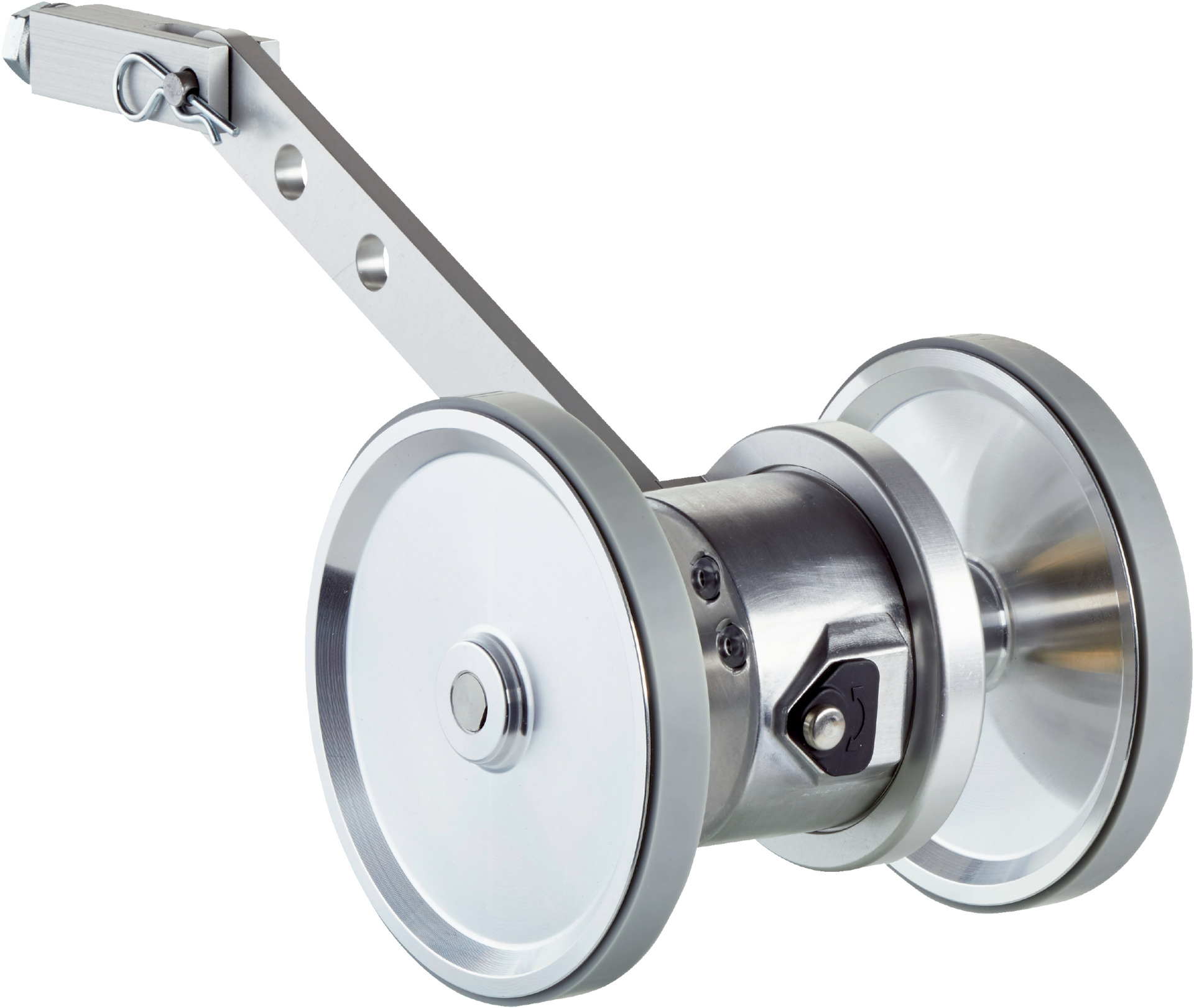

Incremental Encoder DUV60E-D4KFKBDB | Adjustable Pulses 1-1500 | IP65 Rated | by SICK
The Incremental Encoder DUV60E-D4KFKBDB is designed for precise position and speed measurement in industrial automation. With adjustable pulses per revolution from 1 to 1500 and a robust aluminum housing with IP65 protection, it ensures reliable performance in conveyor belt systems and machine tool feedback applications. Its low power consumption and durable design make it an eco-friendly choice for efficient operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 1500 (selectable)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse depending on type
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: less than 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Connection: Male M12 4-pin universal connector
- Output voltage and direction of rotation signals included
- Supply voltage range: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection
- Measuring wheel circumference: 12 inches
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Operating speed up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max travel: 40 mm with recommended pretension of 20 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Shock resistance: 100 g, vibration resistance: 30 g (10 Hz to 2000 Hz)
- Enclosure rating: IP65
- Operating humidity: up to 90% (no condensation)
- Operating temperature: -30°C to +70°C
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1500
- Robust aluminum housing with IP65 protection rating
- Operating temperature range from -30°C to +70°C
- Over-belt yoke mount with spring arm design for stable measurement
- Reverse polarity and short-circuit protection on outputs
- Maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate length measurement
- Machine tool feedback systems
- Material handling and packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFKBDB incremental encoder is available for immediate purchase, ideal for industrial automation and measurement applications requiring high precision and durability.
