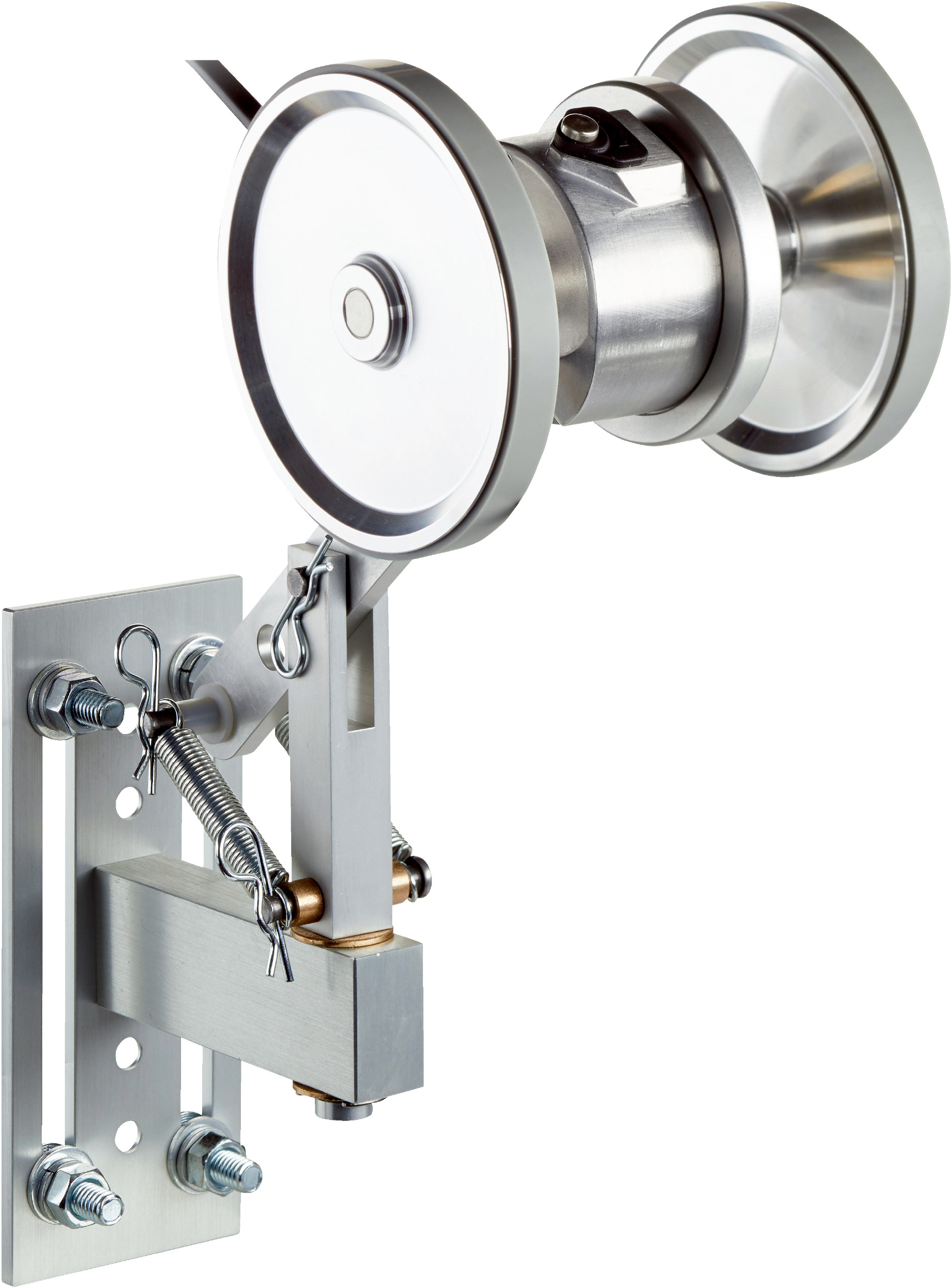

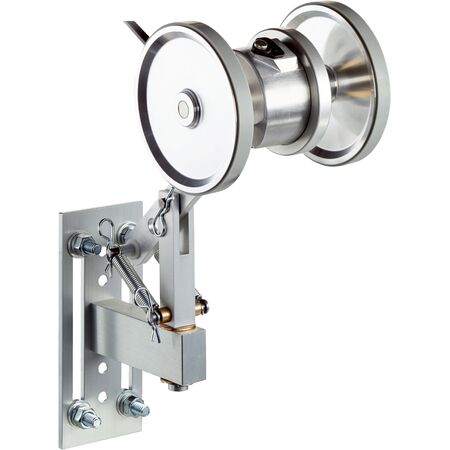

Incremental Encoder DUV60E-D4KMHBEA | Adjustable Pulses 1-1500 | IP65 Rated | by SICK
The DUV60E-D4KMHBEA incremental encoder is designed for precise position and speed measurement in industrial automation. With adjustable pulses per revolution from 1 to 1500 and a robust IP65-rated aluminum housing, it ensures reliable performance in conveyor systems and machine tool feedback applications. Its high shock and vibration resistance make it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 1500 (selectable)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse depending on type
- Measuring step: 90° electric per pulse
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Materials: Shaft stainless steel, flange aluminum, housing aluminum, cable PVC
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max travel: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1500
- Robust aluminum housing with IP65 protection rating
- Operating temperature range from -30°C to +70°C
- Spring arm design with under-belt flange mount for stable measurement
- Reverse polarity and short-circuit protection on outputs
- High resistance to shock (100 g) and vibration (30 g, 10 Hz to 2000 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate length measurement
- Machine tool feedback systems
- Material handling and packaging machinery
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Low power consumption of ≤1.25 W reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KMHBEA incremental encoder is available for immediate purchase, ideal for industrial automation and conveyor system applications.
