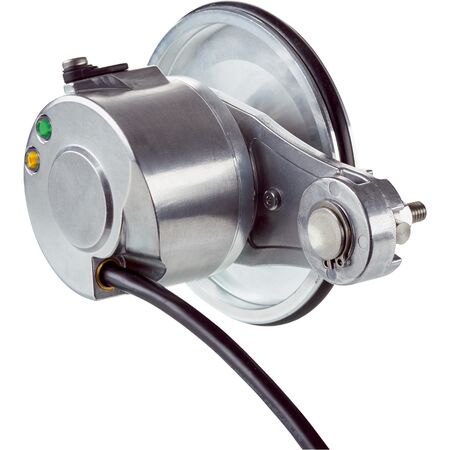

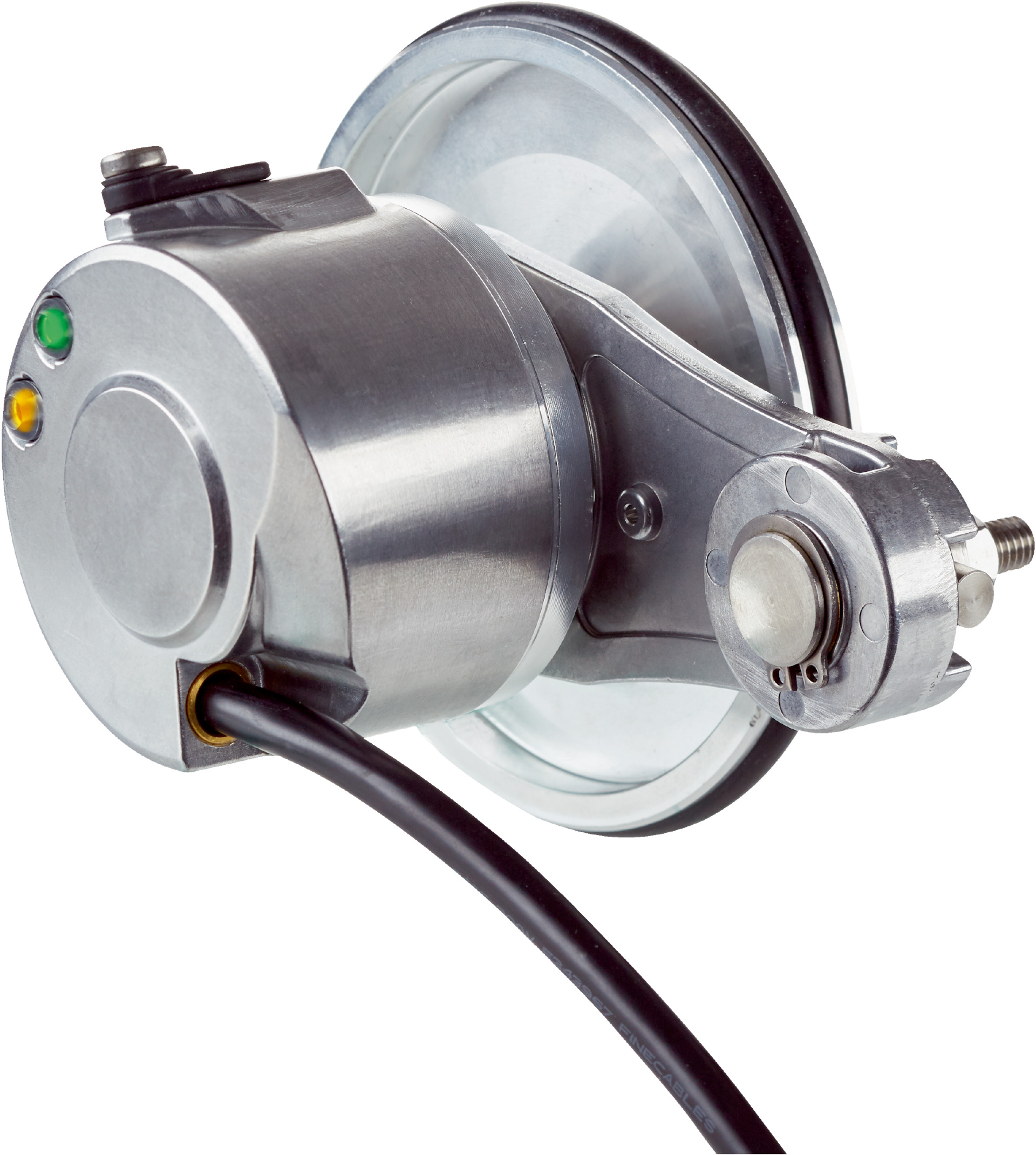

Incremental Encoder SICK DUV60E-32KKBABA | IP65 Rated | Adjustable Pulses | Robust Aluminum Housing | by SICK
The SICK DUV60E-32KKBABA incremental encoder is designed for industrial automation, offering adjustable pulses per revolution from 1 to 2048 and an IP65 protection rating. With a robust aluminum housing and a measuring wheel for precise travel measurement, it's perfect for conveyor systems, machine tools, and robotics, ensuring high reliability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2048
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring wheel circumference: 300 mm
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Measuring step deviation: ±18°
- Initialization time: < 5 ms
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm travel: max 14 mm
- Operating temperature range: -30°C to +70°C
- Enclosure rating: IP65
- Connection type: 8-wire cable, 1.5 m
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.45 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2048
- Robust aluminum housing with IP65 protection rating
- Spring arm design with measuring wheel for travel measurement
- Reverse polarity and short-circuit protection on outputs
- Operating temperature range from -30°C to +70°C
- High resistance to shock (100 g) and vibration (30 g, 10 Hz to 2000 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor systems requiring accurate travel monitoring
- Machine tool feedback systems
- Robotics and material handling equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Low power consumption of ≤1.25 W minimizes energy use
- Robust design reduces environmental impact from failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-32KKBABA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
