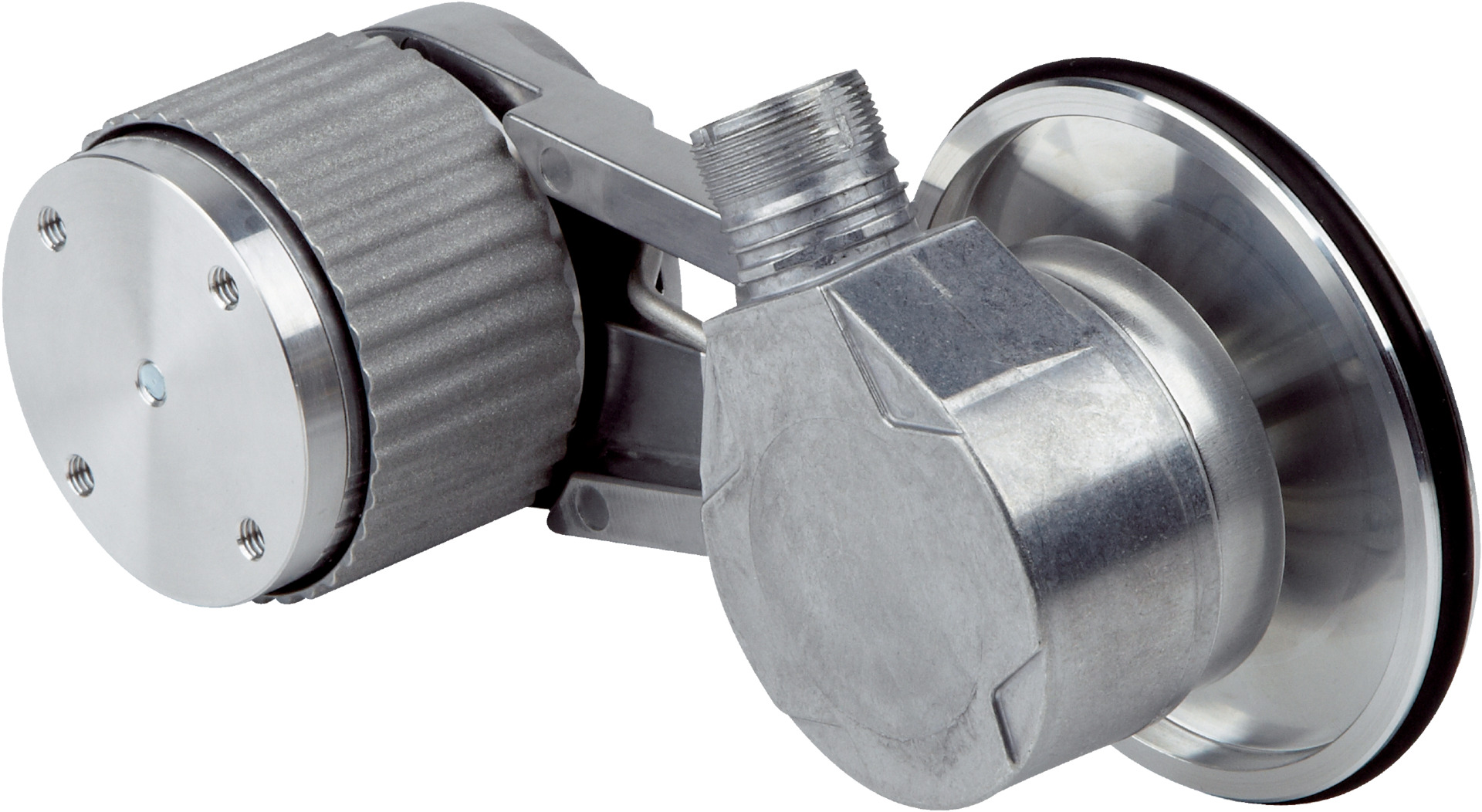

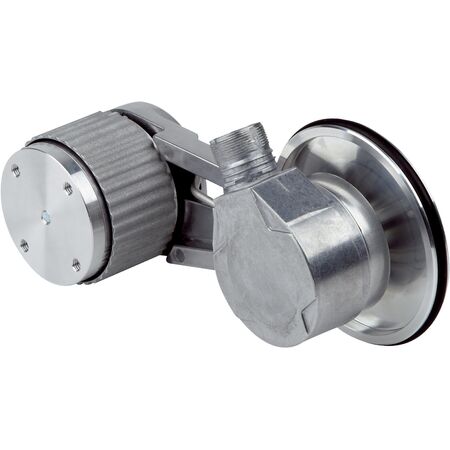

Incremental Encoder Measuring Wheel | 2048 Pulses/Rev | Smooth Polyurethane Surface | Robust Stainless Steel Spring | by SICK
The Incremental Encoder Measuring Wheel is designed for high precision with 2048 pulses per revolution and a measuring increment of 0.1 mm per pulse. Ideal for industrial automation and control systems, it features a durable polyurethane surface and a robust stainless steel spring element, ensuring long-lasting performance and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2,048
- Measuring increment (resolution): 0.1 mm per pulse
- Repeatability: < 0.1 mm
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6-channel
- Connection type: Male connector, M23, 12-pin, radial
- Power consumption: ≤ 0.5 W (without load)
- Supply voltage: 4.5 V to 30 V
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Measuring wheel circumference: 300 mm
- Measuring wheel surface: Smooth polyurethane
- Spring element material: Stainless steel
- Measuring wheel and spring arm material: Aluminum
- Start up torque: +1.2 Ncm at 20 °C
- Operating torque: 1.1 Ncm at 20 °C
- Bearing lifetime: 3.6 x 10^9 revolutions
- Minimum spring tension force: 4 N
- Max permissible working area for spring: ± 10 mm
- Service life of spring element: > 1.5 million cycles
- Mounting position: Preferably from above, from below possible
- Operating temperature range: –30 °C to +80 °C
- Storage temperature range: –40 °C to +100 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 120mm x 150mm x 120mm
- Weight: 0.5 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Durable measuring wheel with smooth polyurethane surface
- Robust spring arm mechanism with stainless steel spring element
- Low power consumption of ≤ 0.5 W
- Reverse polarity and short-circuit protection
- Wide operating temperature range from –30 °C to +80 °C
- Long bearing lifetime of 3.6 x 10^9 revolutions
- Mounting flexibility preferably from above or below
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Position and speed measurement in manufacturing
- Material handling and conveyor systems
- Robotics and machine tool feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MWS120-24A17A02048 Incremental Measuring Wheel Encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
