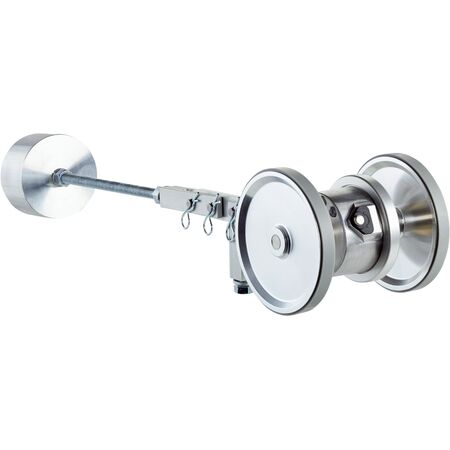

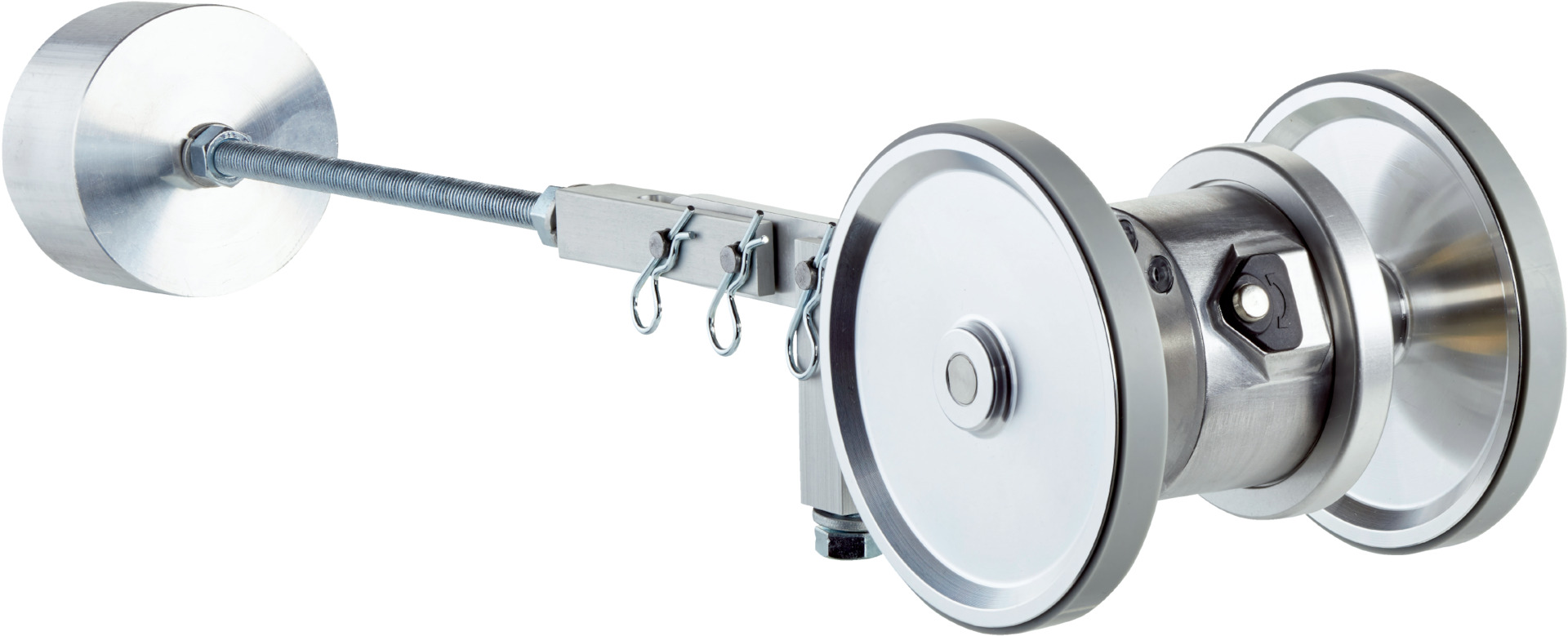

Incremental Encoder with Measuring Wheel | 1 to 2400 Pulses/Rev | IP65 Rated | by SICK
The Incremental Encoder with Measuring Wheel is designed for precise measurement in industrial automation, featuring adjustable pulses per revolution from 1 to 2400 and a robust IP65-rated aluminum housing. Ideal for conveyor belt monitoring and robotics, it ensures high reliability with reverse polarity protection and operates in temperatures from -30°C to +70°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2400
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Operating power consumption (no load): 120 mA
- Connection type: Male connector, M12, 8-pin
- Output voltage and direction of rotation supported
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤ 30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180°, electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Materials: Shaft - Stainless steel, Flange - Aluminum, Housing - Aluminum, Cable - PVC
- Spring arm materials: Spring steel, Aluminum components
- Start up torque: 0.5 Ncm, Operating torque: 0.4 Ncm
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating humidity: 90% (no condensation)
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 100mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2400
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -30°C to +70°C
- Reverse polarity and short-circuit protection
- Measuring wheel with 12 inch circumference made of smooth urethane plastic
- Spring arm design with counter-weight and under-belt yoke mount
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise measurement of movement
- Conveyor belt speed and position monitoring
- Material handling and packaging machinery
- Robotics and motion control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK DUV60E-D4KCJAAA incremental encoder with measuring wheel is available for immediate purchase, ideal for industrial automation and precise measurement applications.
