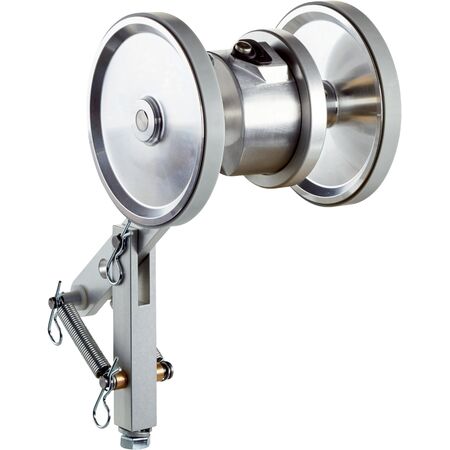

Incremental Encoder with Measuring Wheel | 275 Years MTTFD | IP65 Rated | by SICK
The Incremental Encoder with Measuring Wheel is designed for industrial automation, offering a remarkable MTTFD of 275 years and an IP65 rated enclosure for dust and water resistance. Ideal for precise position and speed measurement in conveyor systems and robotics, this encoder features a robust aluminum housing and a smooth urethane measuring wheel for reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1500
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Connection: Male M12, 4-pin connector
- Output voltage and direction of rotation signals available
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤ 30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180°, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel surface: Smooth plastic (urethane)
- Spring arm mechanism with aluminum and spring steel components
- Start-up torque: 0.5 Ncm, Operating torque: 0.4 Ncm
- Operating speed up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum spring arm deflection: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating humidity: 90% (no condensation)
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Robust aluminum housing and flange with stainless steel shaft
- Operating temperature range from -30°C to +70°C
- IP65 rated enclosure for dust and water resistance
- Short-circuit and reverse polarity protection
- Maximum output frequency of 60 kHz
- Spring arm design with under-belt yoke mount for stable measurement
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate length measurement
- Material handling and packaging machinery
- Robotics and motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy efficiency
- Robust construction extends product lifecycle in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFGDDB incremental encoder with measuring wheel is available for immediate purchase, ideal for industrial automation and precise measurement applications.
