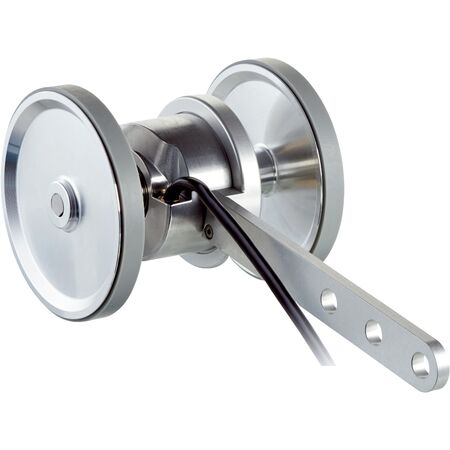

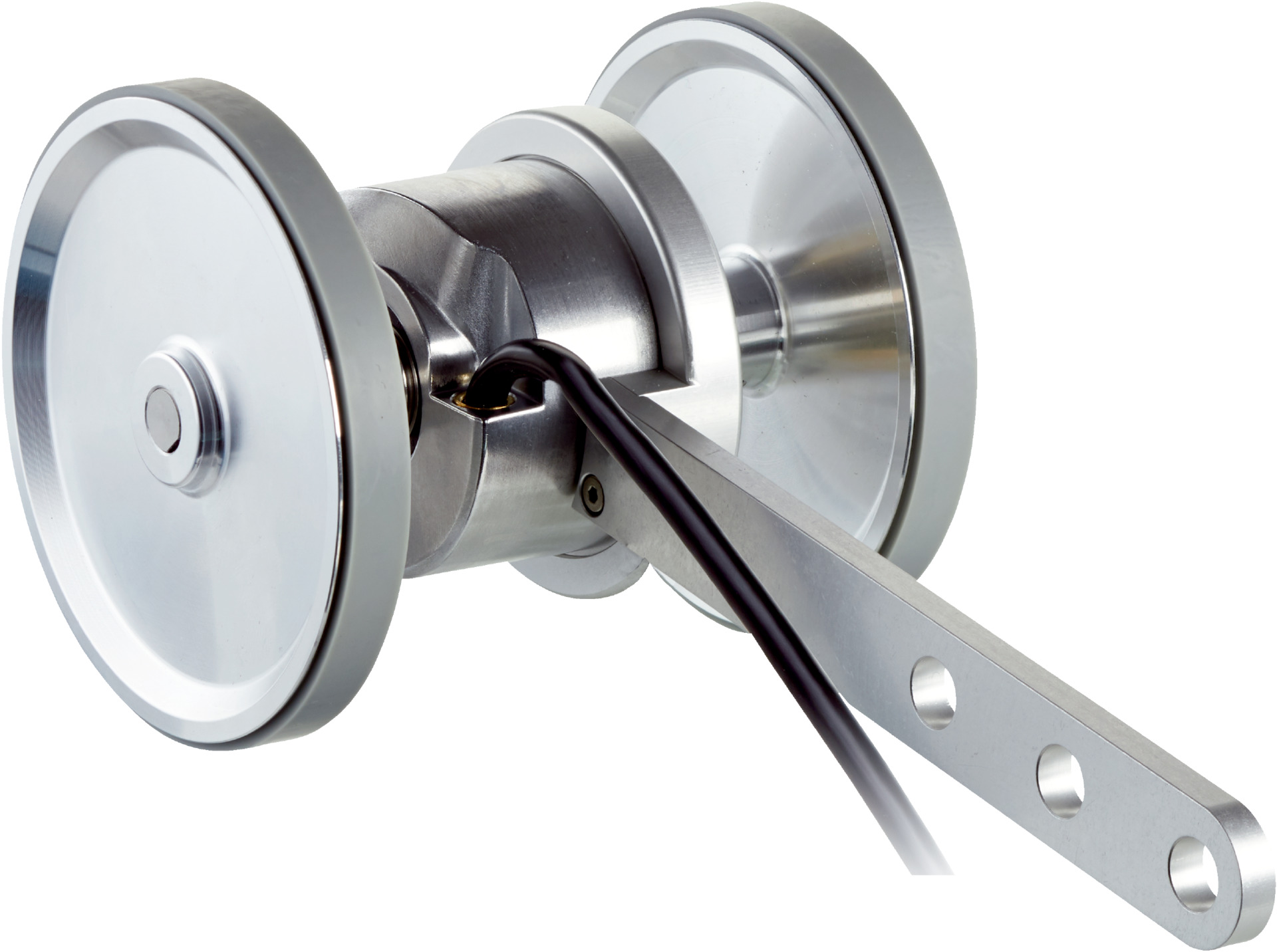

Incremental Encoder with Measuring Wheel | 275 Years MTTFD | IP65 Rated | by SICK
The Incremental Encoder with Measuring Wheel is designed for industrial automation, offering high reliability with an MTTFD of 275 years and an IP65 protection rating. Ideal for precise position and speed measurement in conveyor systems and robotics, this encoder features adjustable pulses per revolution from 1 to 1500, ensuring versatility in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1500
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤ 30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1, positioned at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Materials: Shaft - Stainless steel, Flange - Aluminum, Housing - Aluminum, Cable - PVC
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max deflection: 40 mm, recommended pretension 20 mm
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Resistance to shocks: 100 g (EN 60068-2-27)
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL signals
- Adjustable pulses per revolution from 1 to 1500
- Robust aluminum housing with IP65 protection rating
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Low power consumption with max 1.25 W and 120 mA no load current
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor systems monitoring
- Material handling and packaging machinery
- Robotics and motion control systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KKWADA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
