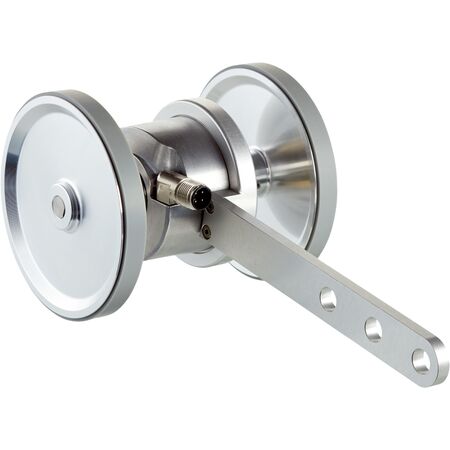

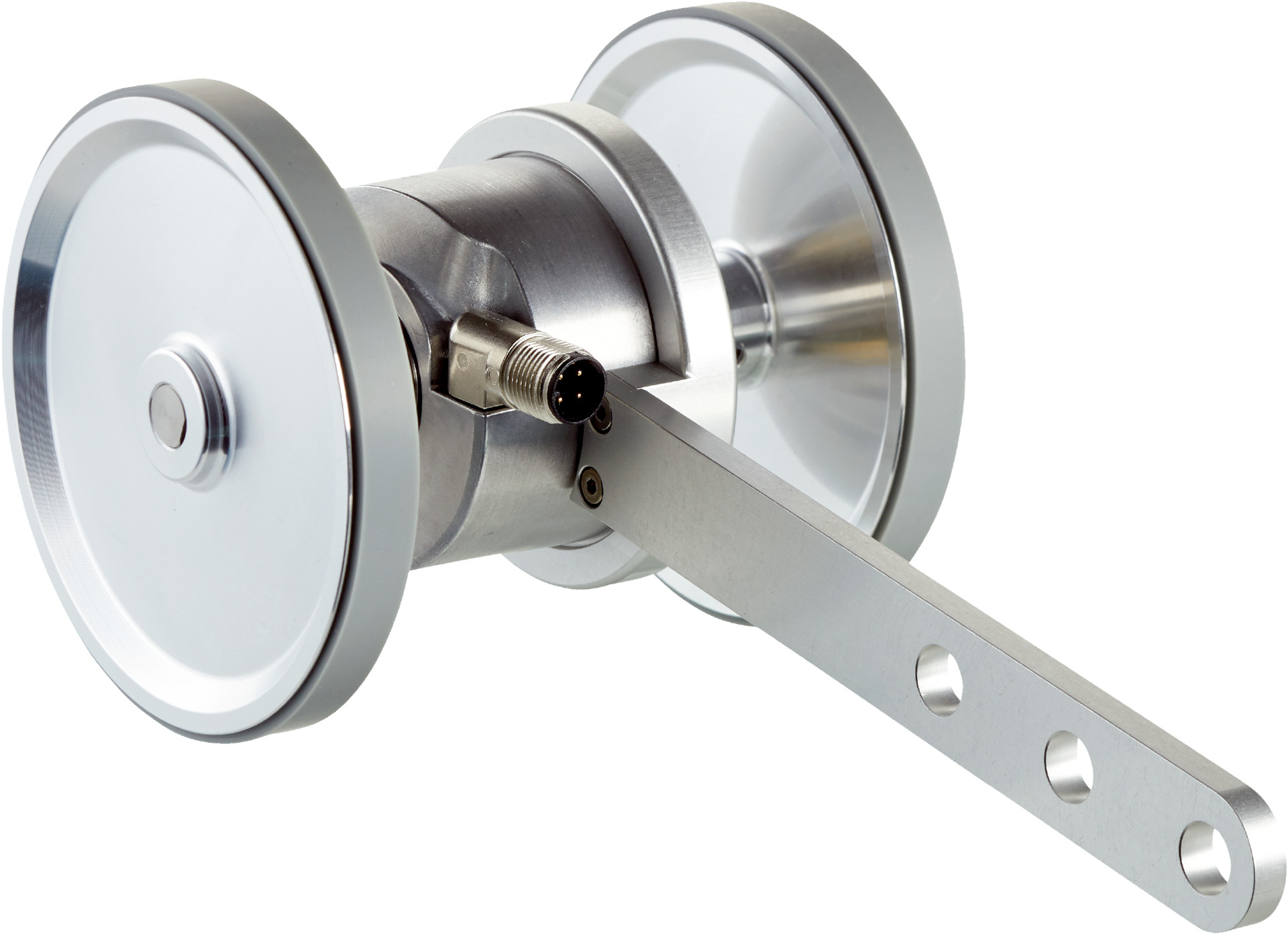

Incremental Encoder with Measuring Wheel | Adjustable Pulses | IP65 Rated | by SICK
The Incremental Encoder with Measuring Wheel is designed for precise position and speed measurement in industrial automation. With adjustable pulses per revolution from 1 to 240 and an IP65 rated enclosure, it ensures high reliability and protection against dust and water. Ideal for conveyor belt monitoring and machine tool feedback systems, this encoder operates efficiently in temperatures ranging from -30°C to +70°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 240 (selectable)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse depending on type
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: less than 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Spring arm mechanism with aluminum components and spring steel element
- Measuring wheel circumference: 12 inches with smooth plastic (urethane) surface
- Operating speed up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 120mm x 60mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 240
- Robust aluminum housing and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- High resistance to shocks (100 g) and vibration (30 g, 10 Hz to 2000 Hz)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt monitoring and control
- Material handling systems
- Machine tool feedback systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
