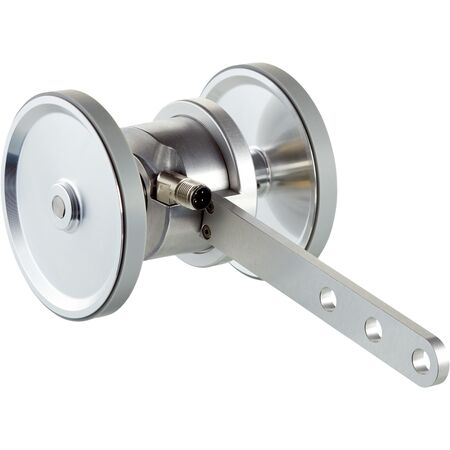

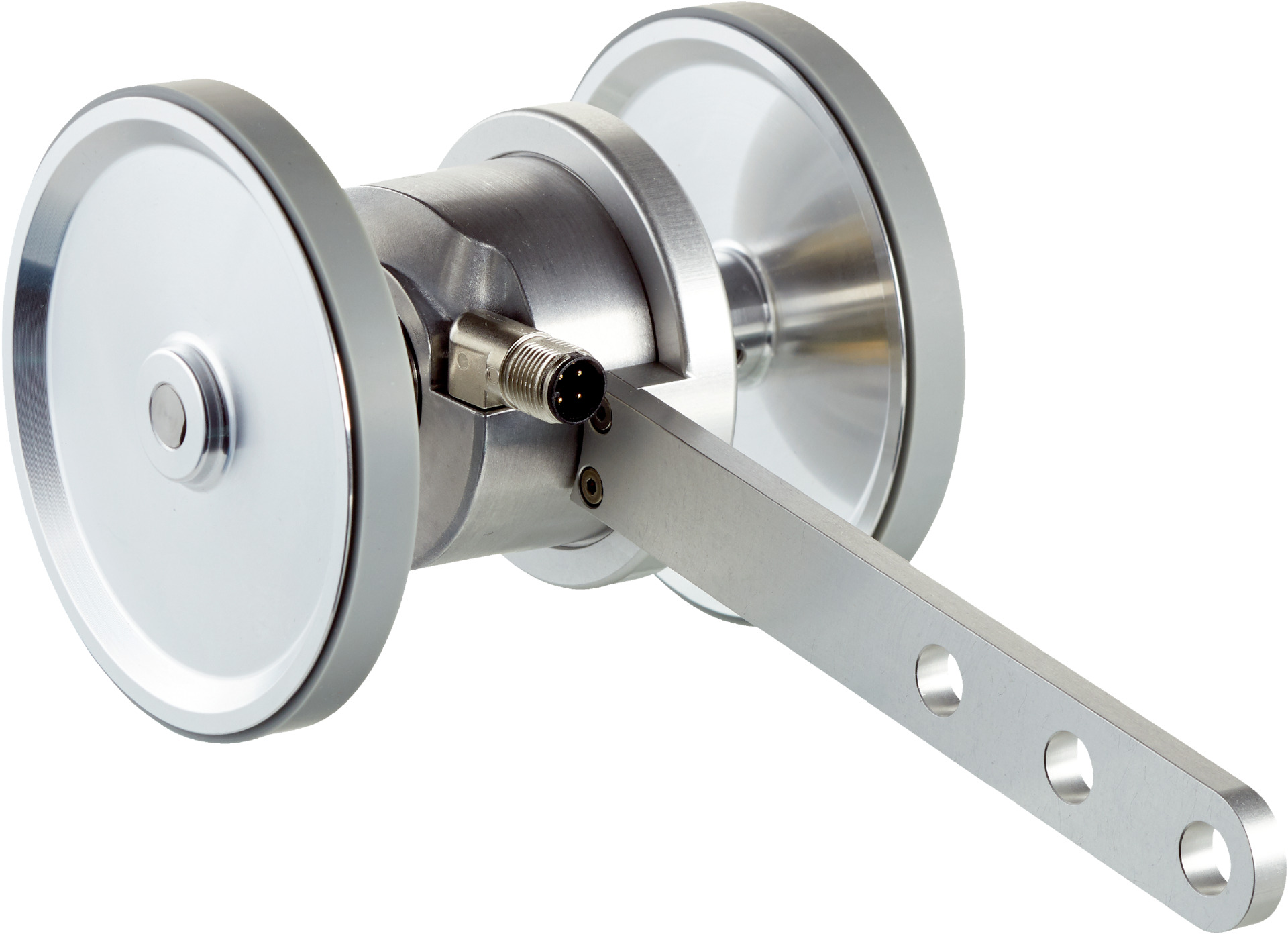

Incremental Encoder with Measuring Wheel | High Reliability | IP65 Enclosure | by SICK
The Incremental Encoder with Measuring Wheel is designed for precise position and speed measurement in industrial automation. With a high reliability rating of 275 years and an IP65 enclosure, it’s perfect for conveyor systems and robotics. This encoder features a robust aluminum housing, selectable output via DIP switch, and operates in extreme temperatures from -30°C to +70°C, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2400
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Power consumption max without load: ≤1.25 W
- Load current max per channel: ≤30 mA
- Reference signal: 1 at 180°, gated with A
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max travel: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- Dimensions (H x L x W): 120mm x 120mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Selectable output via DIP switch
- Operating voltage range from 4.75 V to 30 V
- Maximum output frequency of 60 kHz
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -30°C to +70°C
- Resistance to shocks up to 100 g and vibration up to 30 g
- Reverse polarity and short-circuit protection on outputs
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation equipment to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor systems monitoring
- Material handling equipment
- Robotics and machinery requiring incremental position feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFWAAA Incremental Encoder is available for immediate purchase, ideal for industrial automation and material handling applications.
