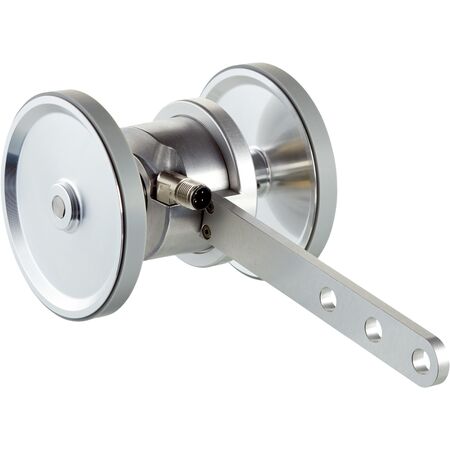

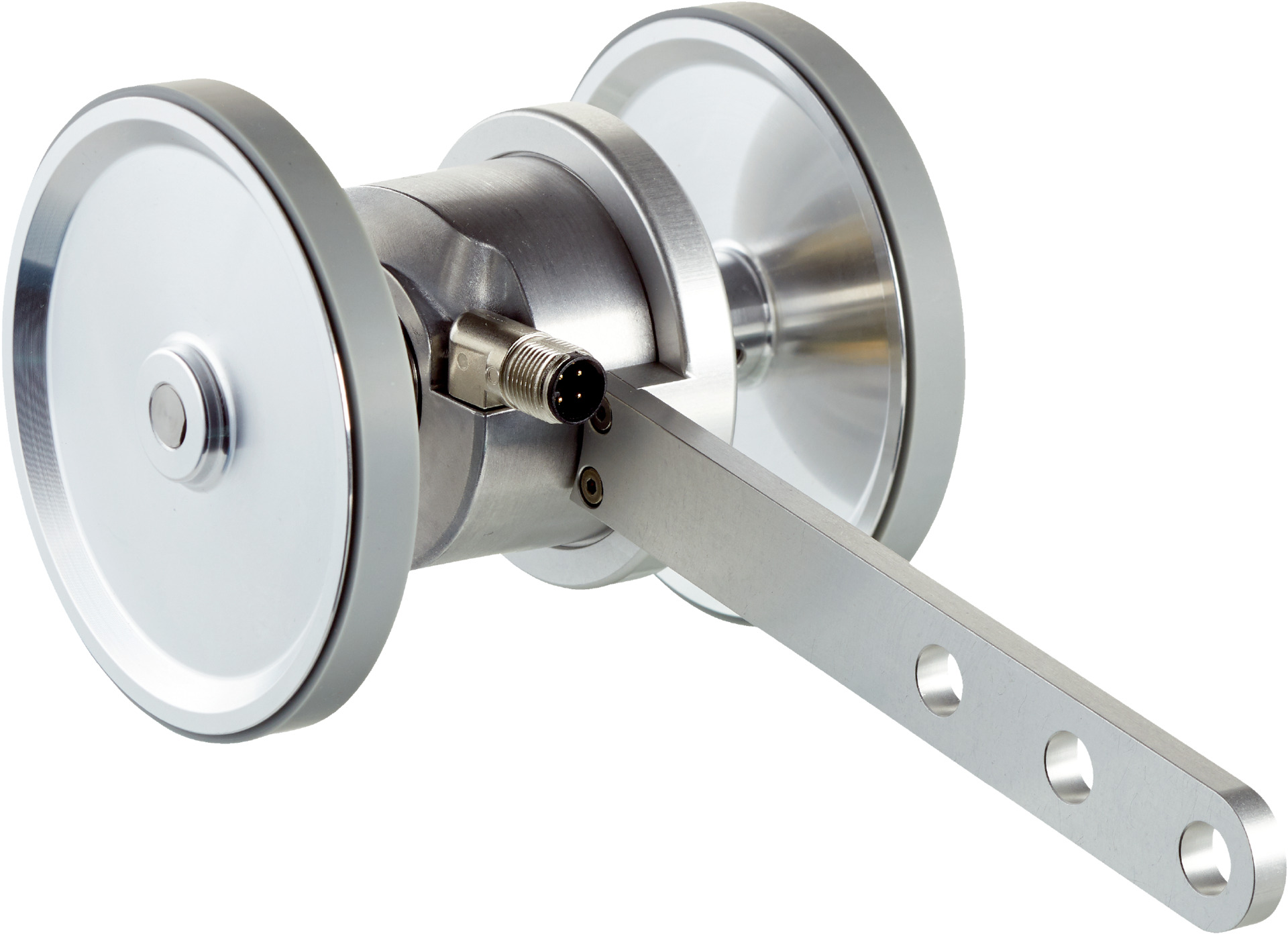

Incremental Encoder with Measuring Wheel | IP65 Rated | 275 Years MTTFD | 60 kHz Output | by SICK
The Incremental Encoder with Measuring Wheel is designed for precise position and speed measurement in industrial automation. With an impressive MTTFD of 275 years and an IP65 rated enclosure, it ensures reliability and durability in harsh environments. Ideal for applications like conveyor belt monitoring and robotics, this encoder features a high maximum output frequency of 60 kHz and a robust aluminum housing for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 48 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Power consumption max: ≤1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max travel: 40 mm
- Recommended pretension: 20 mm
- Max permissible spring working area: ±10 mm
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Selectable output via DIP switch
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- High maximum output frequency of 60 kHz
- Measuring wheel circumference of 12 inches with smooth urethane surface
- Low operating torque of 0.4 Ncm and startup torque of 0.5 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt monitoring and control
- Material handling systems
- Packaging machinery
- Robotics and motion control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy-efficient operation
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFWDGB incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
