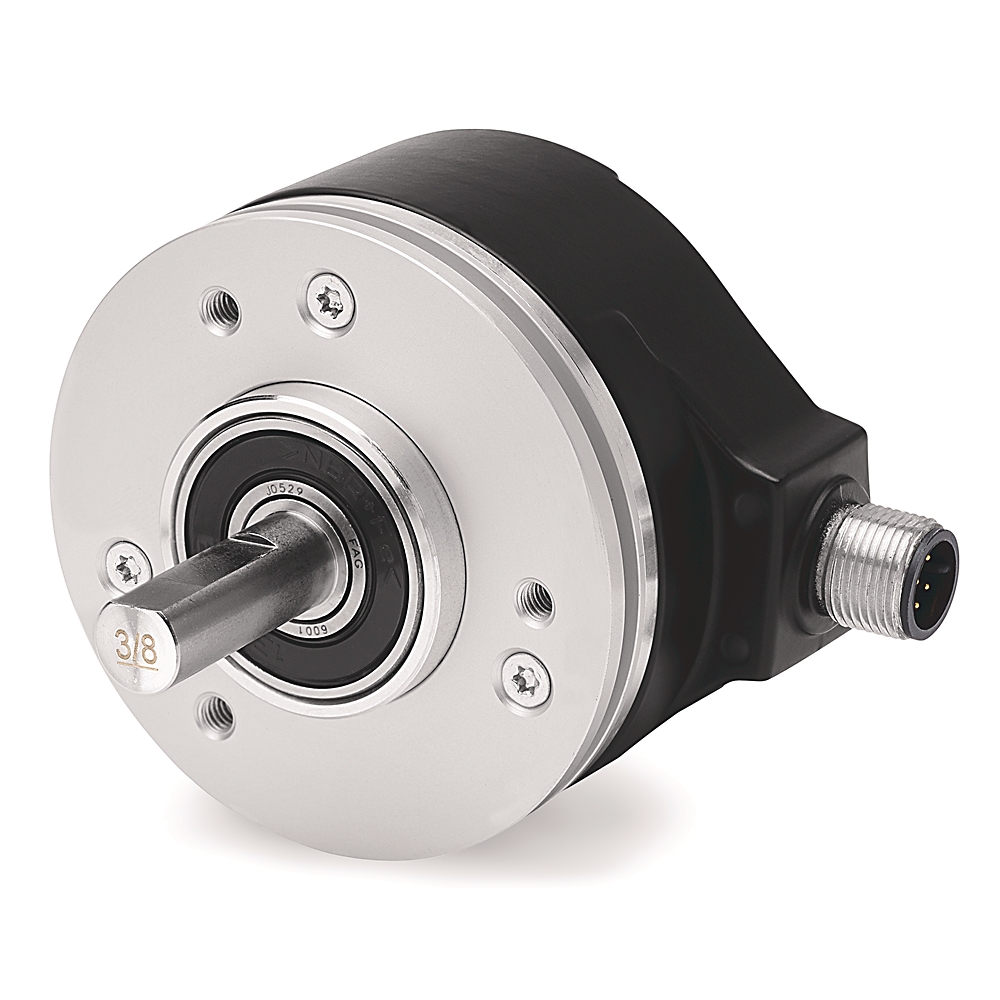

Incremental Encoder Servo 10mm 1000 PPR DC Micro Allen-Bradley

BRAND: Allen-Bradley
SKU: 847THL14RA01000
$1,649.60 List price: $2,055.70
+ −
30 Days Return Electricians Unlock Trade Access
Allen-Bradley incremental encoder servo featuring 10mm, 1000. Ideal for position and speed feedback on rotating machinery.
Technical Specifications
  • Shaft Diameter: 10 mm with flat
  • Mounting: Standard servo mount
  • Output Type: 4.5-5.5 V line driver (TTL)
  • Connector: M12 8 pin with mating connector
  • Pulse Rate: 1000 pulses per revolution (PPR)
  • Signal Phasing: A leads B, clockwise rotation
  • Z Channel: Gated with A channel
  • Exit Type: Radial
  • Dimensions (H x L x W): 50mm x 50mm x 50mm
  • Weight: 0.3 kg
Key Features
  • 2 inch diameter solid shaft encoder
  • Standard servo mount
  • 10 mm diameter shaft with flat
  • Radial exit with M12 8 pin connector
  • A leads B, CW rotation
  • Z gated with A channel
  • 1000 pulses per revolution (PPR)
  • 4.5 to 5.5 V DC line driver (TTL) input voltage
Professional Installation Requirements
  • Installation should be performed by a qualified technician familiar with servo motor and encoder systems to ensure proper alignment and electrical connections.
Applications
  • Industrial automation and control systems
  • Servo motor feedback
  • Position and speed sensing in machinery
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Improves energy efficiency by providing accurate motor feedback for optimized control
  • Durable design reduces replacement frequency and waste
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 847THL14RA01000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and servo motor feedback applications.
