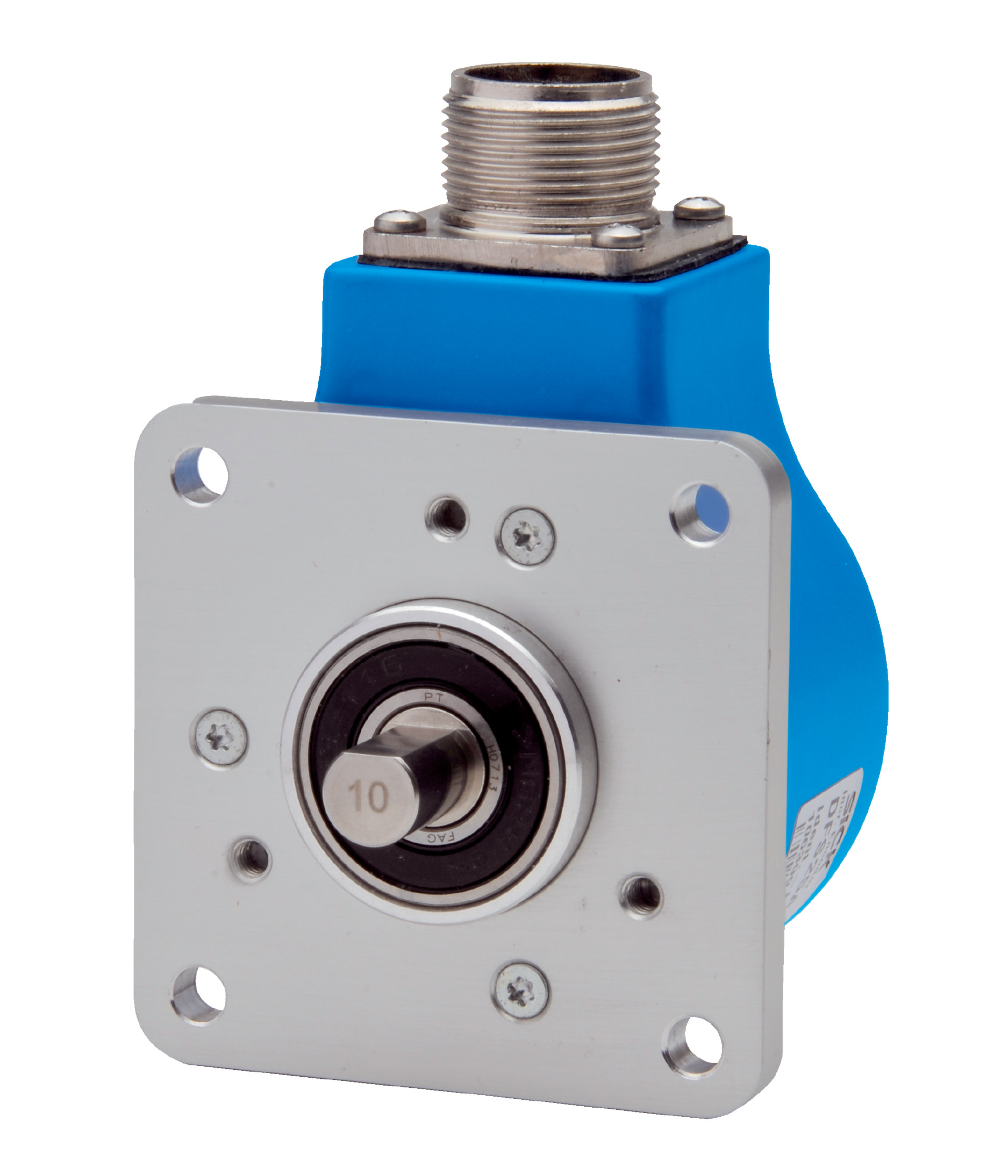

Incremental Encoder SICK DFS25A-A2BAD006000 | 6000 PPR | IP65/IP67 Rated | by SICK
The Incremental Encoder SICK DFS25A-A2BAD006000 features a high resolution of 6000 pulses per revolution, making it ideal for industrial automation and precise motion control applications. With robust IP65/IP67 ratings for dust and water protection, this encoder ensures reliable performance in challenging environments, supporting HTL / Push pull communication for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder SICK DFS25A-A2BAD006000 | 6000 PPR | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1111068
Alternatively Known As: Incremental rotary encoder, rotary encoder 6000 PPR, SICK DFS25A encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 6,000
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 8 to 30 V
- Connection type: Male connector, MS, 10-pin, radial
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Operating speed: up to 9,000 min⁻¹
- Operating temperature range: -30°C to +85°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 6,000 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP65 rated shaft side and IP67 rated housing side for dust and water protection
- Reverse polarity and short-circuit protection
- Fast initialization time of 40 ms
- Operating temperature range from -30°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Supports HTL / Push pull incremental communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling equipment
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 0.7 W improves energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A2BAD006000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
