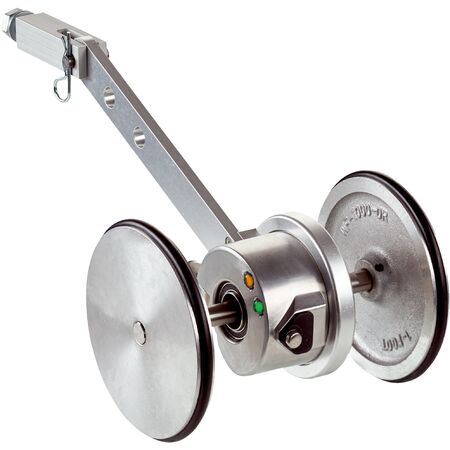

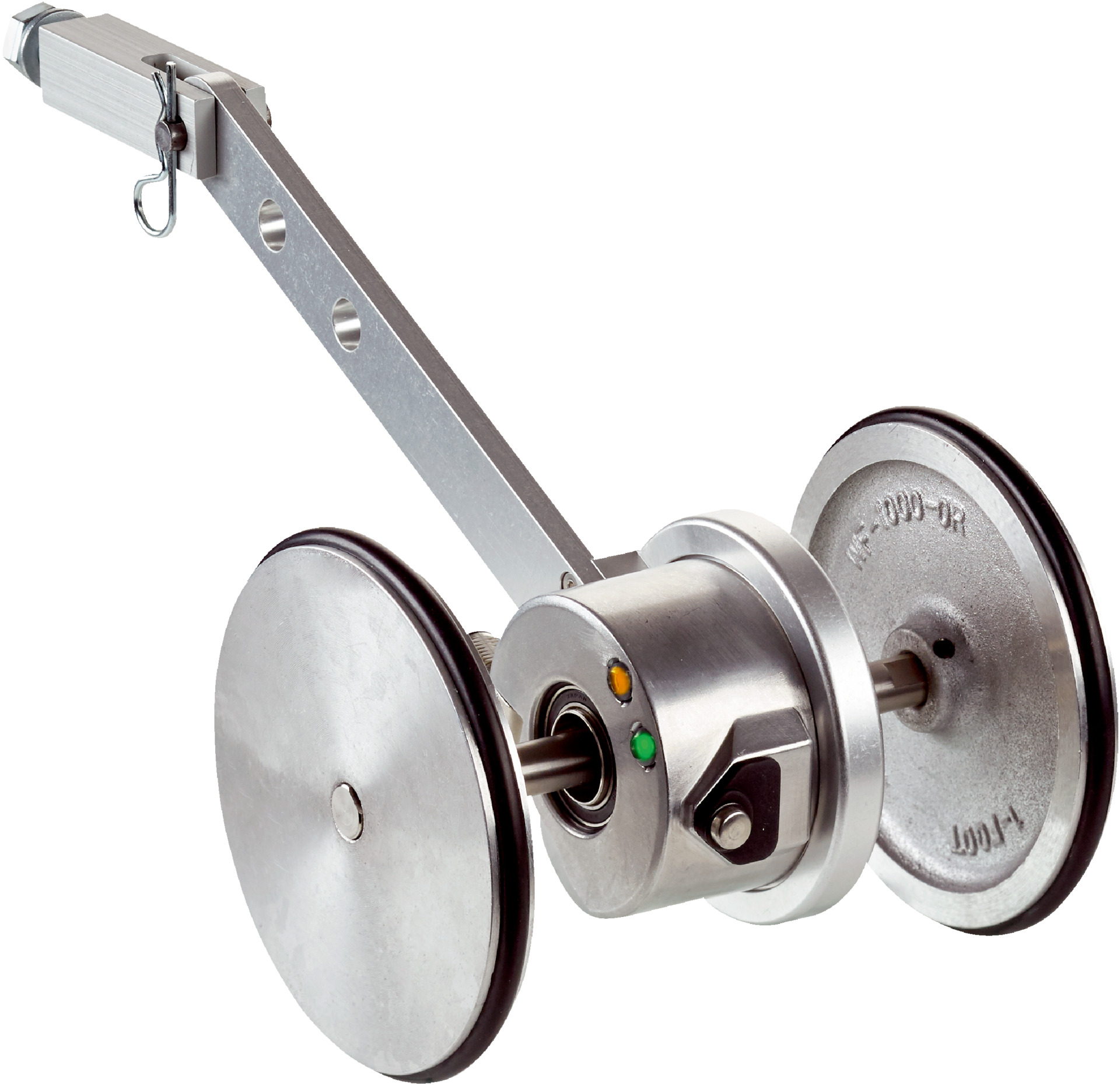

Incremental Encoder with Spring Arm | 1 to 2400 Pulses/Rev | IP65 Rated | by SICK
The Incremental Encoder with Spring Arm is designed for precise position and speed measurement in industrial automation. With selectable pulses per revolution from 1 to 2400 and an IP65 rated enclosure, it ensures reliable performance in challenging environments. Ideal for conveyor systems and machine tool feedback, this encoder features robust construction and low power consumption for energy-efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 2400 (selectable)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption: 120 mA (no load)
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤ 30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 300 mm with O-ring NBR70 surface
- Spring arm mechanism materials: spring steel, aluminum components
- Operating speed up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Maximum spring arm deflection: 40 mm
- Recommended pretension: 20 mm
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2400
- Robust aluminum housing and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Spring arm design with over-belt yoke mount for stable measurement
- Low startup torque of 0.5 Ncm and operating torque of 0.4 Ncm
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation systems to ensure proper mounting, wiring, and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate length measurement
- Machine tool feedback systems
- Material handling and packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy-efficient operation
- Robust construction reduces environmental impact through extended product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-32KCKAAA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
