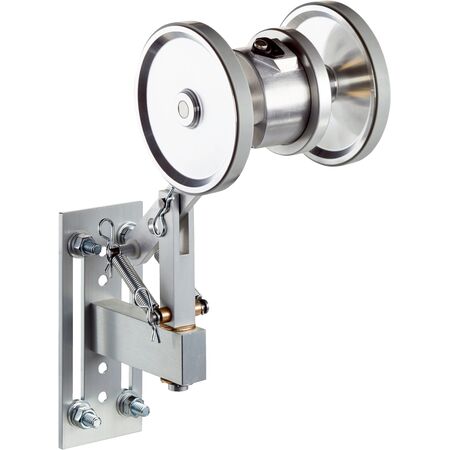

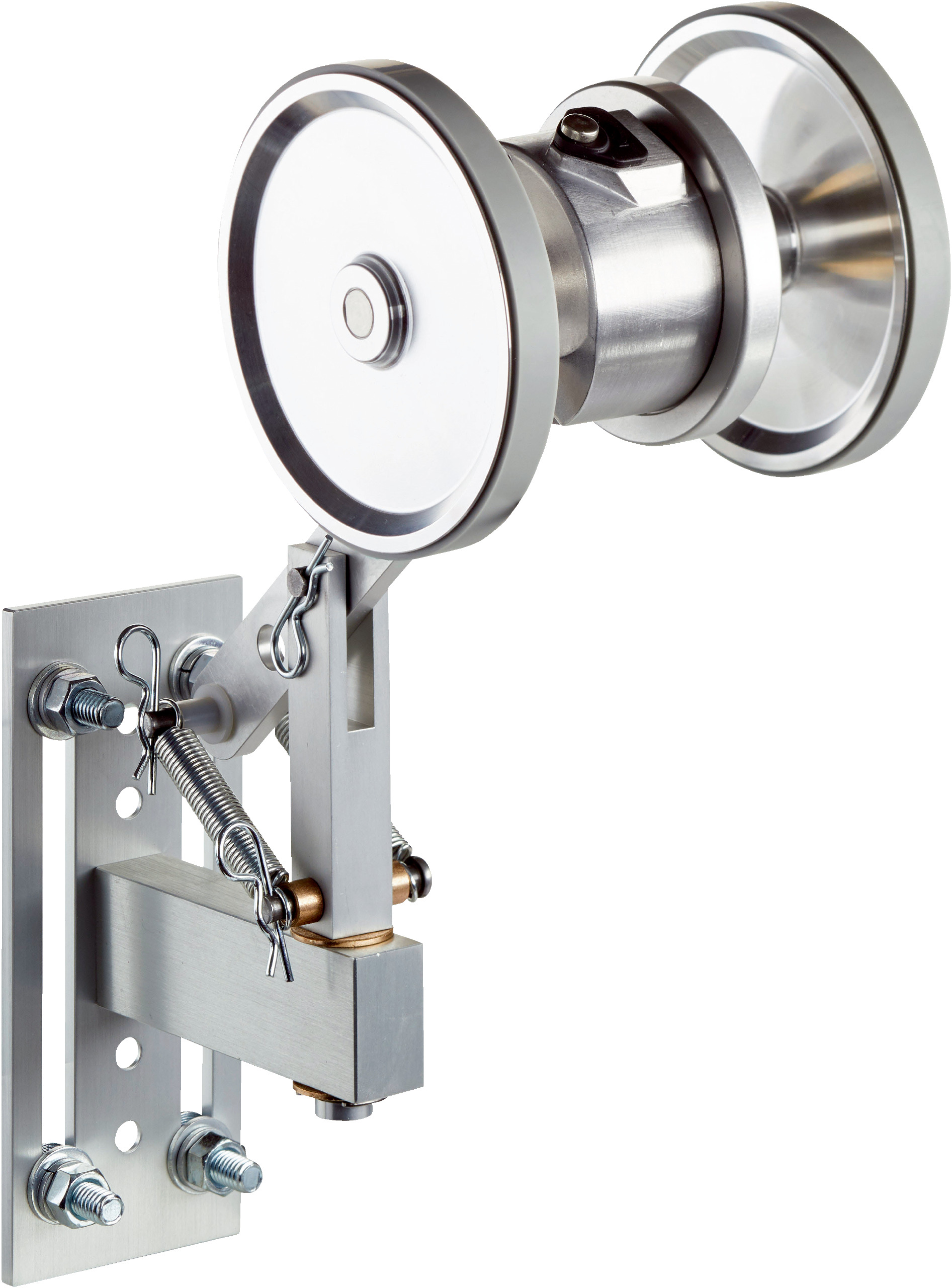

Incremental Encoder with Spring Arm | 275 Years MTTFD | IP65 Rated | 60 kHz Output | by SICK
The Incremental Encoder with Spring Arm is designed for industrial automation, offering a remarkable MTTFD of 275 years and an IP65 protection rating. With adjustable pulses per revolution from 1 to 48 and a robust aluminum housing, it ensures precise position and speed measurement in various applications, including conveyor systems and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 48, selectable
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse depending on type
- Measuring step: 90° electric per pulse
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: <5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data via DIP switch
- Operating power consumption: 120 mA no load
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Materials: Shaft stainless steel, flange and housing aluminum, cable PVC
- Operating speed max: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm max travel: 40 mm
- Recommended pretension: 20 mm
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Shock resistance: 100 g
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 48
- Robust aluminum housing with IP65 protection rating
- Spring arm design with under-belt flange mount for stable measurement
- Operating temperature range from -30°C to +70°C
- Reverse polarity and short-circuit protection on outputs
- High maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate length measurement
- Machine tool feedback and control
- Material handling and packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤1.25 W minimizes energy use
- Robust design ensures long service life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFHCGB incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
