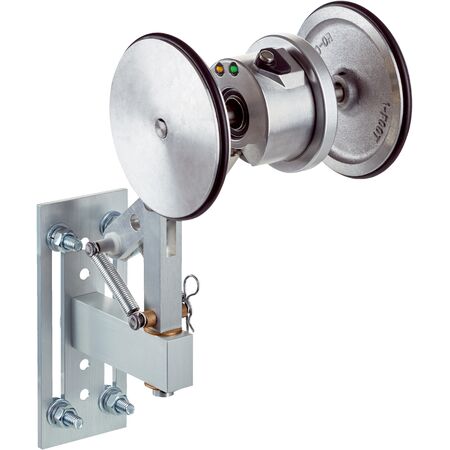

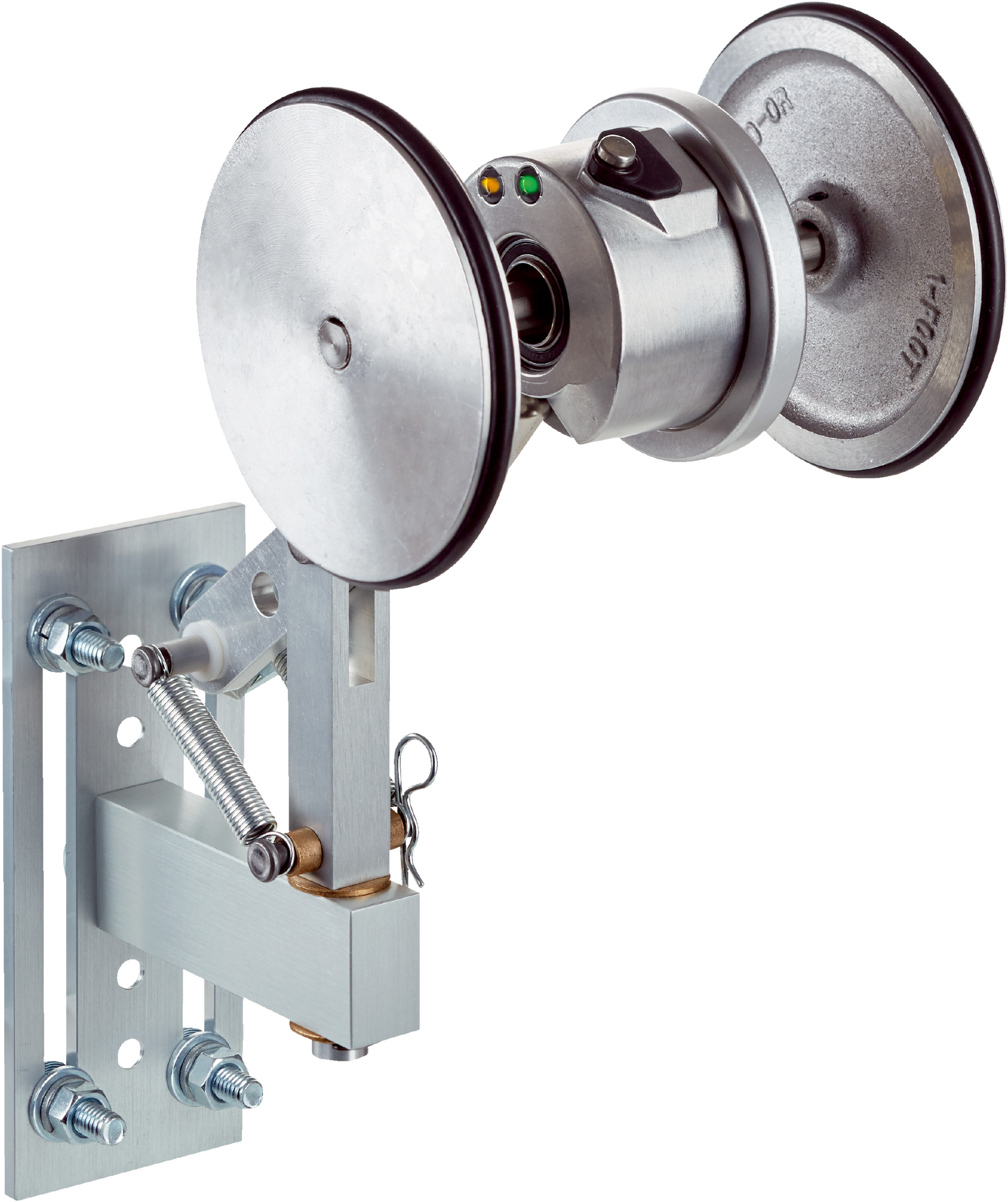

Incremental Encoder with Spring Arm | 275 Years MTTFD | IP65 Rated | by SICK
The Incremental Encoder with Spring Arm is designed for precise position and speed measurement in industrial automation. With an impressive MTTFD of 275 years and an IP65 rated enclosure, it ensures reliability in harsh environments. Ideal for conveyor systems and robotics, this encoder features adjustable pulses per revolution and robust construction for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 2400
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Connection type: Male M12, 8-pin connector
- Output voltage and direction of rotation signals included
- Power consumption max without load: ≤ 1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric, gated with A
- Reverse polarity and short-circuit protection
- Measuring wheel circumference: 300 mm with O-ring NBR70 surface
- Spring arm mechanism materials: spring steel, aluminum components
- Start up torque: 0.5 Ncm, Operating torque: 0.4 Ncm
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum spring arm deflection: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 2400
- Robust aluminum housing and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Spring arm design with under-belt flange mount and O-ring measuring wheel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper mounting, wiring, and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems
- Material handling and packaging machinery
- Robotics and motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1.25 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-32KCHAAA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
