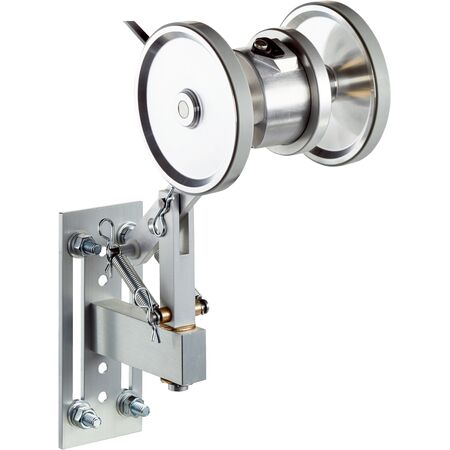

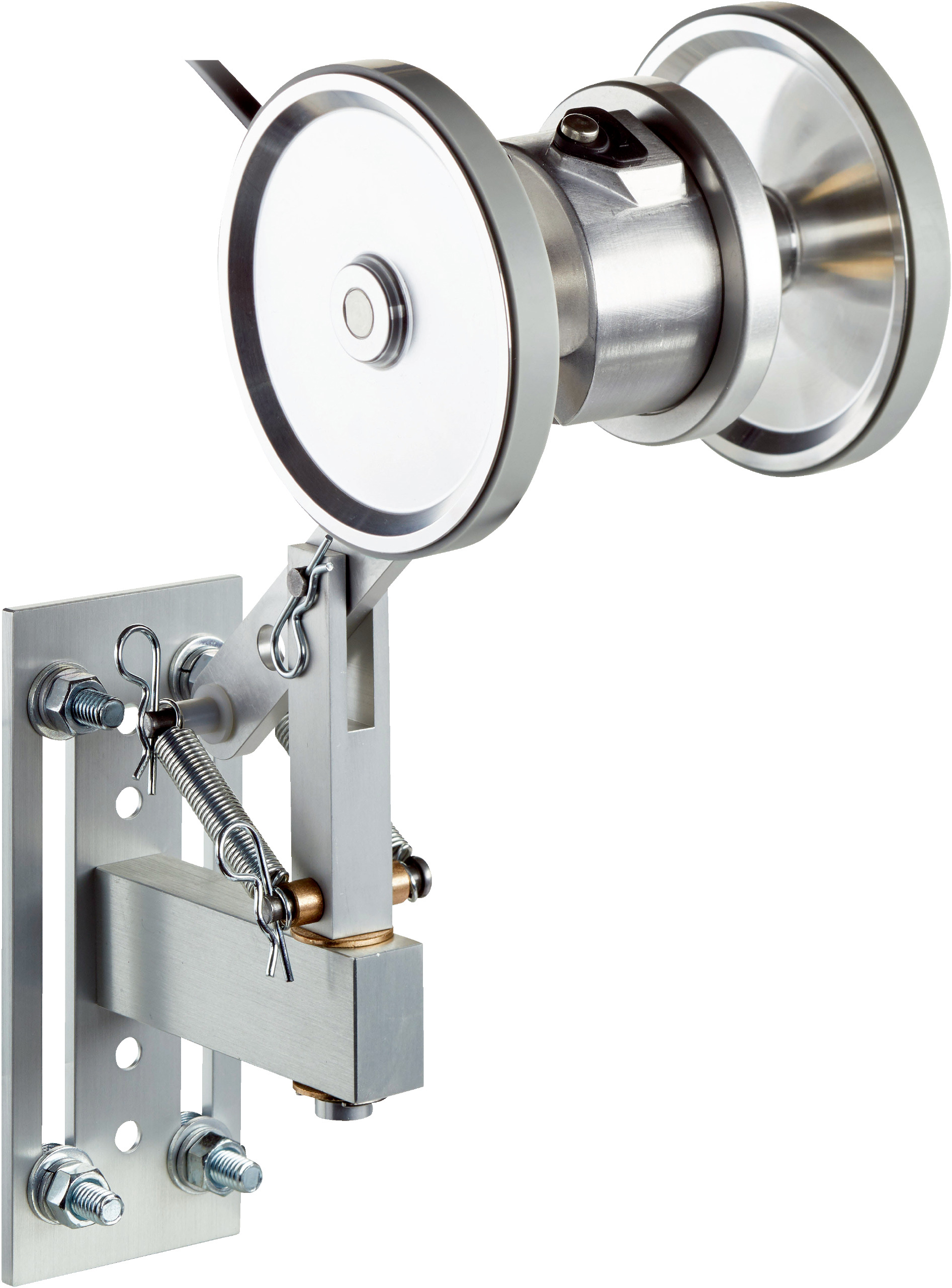

Incremental Encoder with Spring Arm | 275 Years MTTFD | IP65 Rated | by SICK
The Incremental Encoder with Spring Arm is designed for precise position and speed measurement in industrial automation. With an impressive MTTFD of 275 years and an IP65 protection rating, this encoder is built for reliability and durability. Ideal for applications such as conveyor belt monitoring and robotics, it features adjustable pulses per revolution and a robust aluminum housing for stable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 1500
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Supply voltage: 4.75 V to 30 V
- Load current max: ≤ 30 mA per channel
- Maximum output frequency: 60 kHz
- Reference signal: 1, positioned at 180° electric, gated with A
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 12 inches
- Materials: Shaft - Stainless steel, Flange - Aluminum, Housing - Aluminum, Cable - PVC
- Spring arm mechanism materials: Spring steel, Aluminum components
- Start up torque: 0.5 Ncm, Operating torque: 0.4 Ncm
- Operating speed: up to 1500 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Maximum spring arm travel: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating humidity: 90% (no condensation)
- Operating temperature: -30°C to +70°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL signals
- Adjustable pulses per revolution from 1 to 1500
- Robust aluminum housing with IP65 protection rating
- Operating temperature range from -30°C to +70°C
- Spring arm design with under-belt flange mount for stable measurement
- Reverse polarity and short-circuit protection
- Low power consumption with max 1.25 W
- High maximum output frequency of 60 kHz
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt monitoring and control
- Material handling systems
- Packaging machinery
- Robotics and motion control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DUV60E-D4KKHADA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
