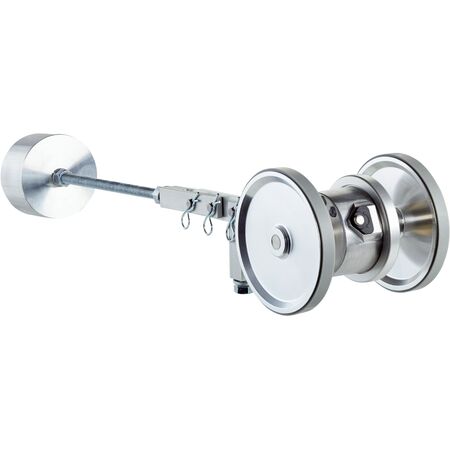

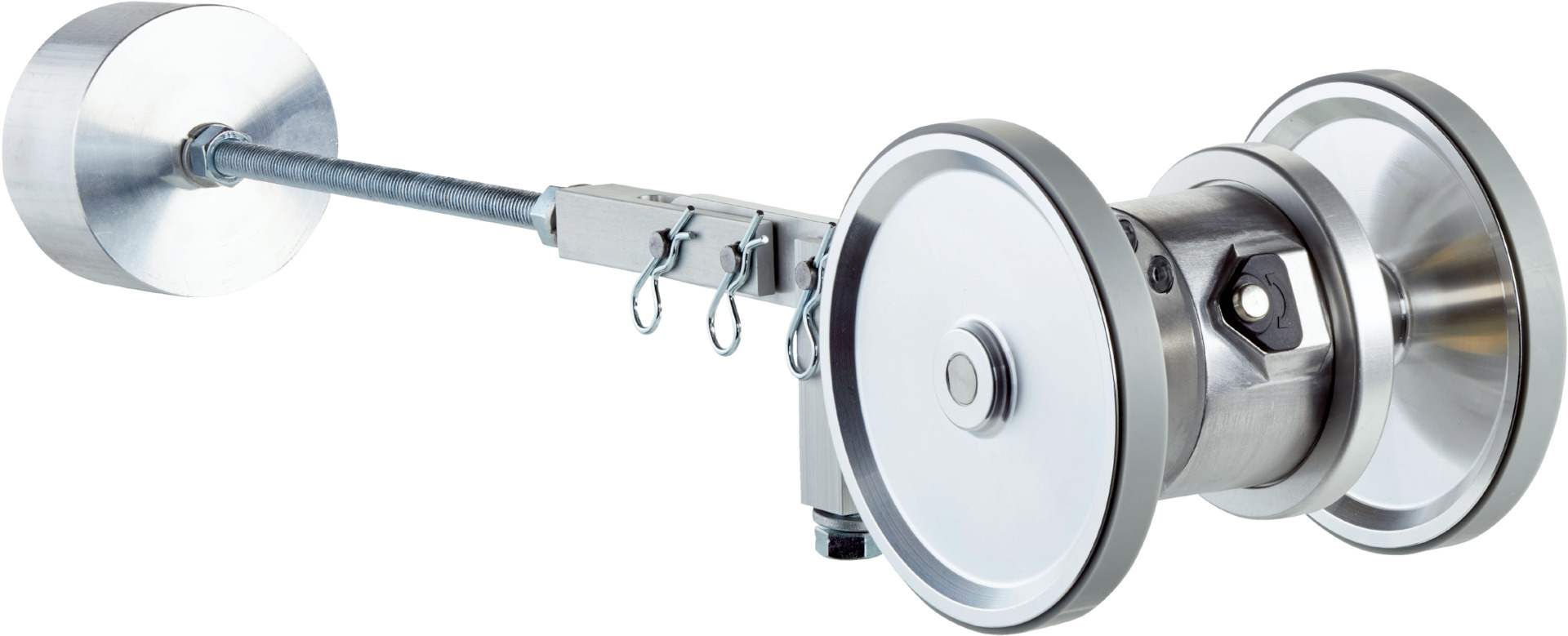

Incremental Encoder with Spring Arm | Adjustable Pulses | High Resolution | IP65 Rated | by SICK
The Incremental Encoder with Spring Arm is designed for precise position and speed measurement in industrial automation. With adjustable pulses per revolution from 1 to 48 and a high resolution of 0.125 mm/pulse to 304.8 mm/pulse, it’s perfect for conveyor belt monitoring and robotics. Built with a robust aluminum housing and IP65 rated for dust and water resistance, this encoder ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 48 selectable
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Parameterising data: DIP switch selectable output
- Operating power consumption (no load): 120 mA
- Connection type: Male M12 4-pin connector
- Output voltage and direction of rotation signals included
- Power consumption max without load: ≤ 1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180° electric gated with A
- Reverse polarity and short-circuit protection
- Measuring wheel circumference: 12 inches
- Measuring wheel surface: Smooth plastic (urethane)
- Spring arm mechanism materials: Aluminum and spring steel
- Start up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Operating speed: 1500 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Maximum travel/deflection of spring arm: 40 mm
- Recommended pretension: 20 mm
- Max permissible working area for spring: ±10 mm
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 48
- High resolution from 0.125 mm/pulse to 304.8 mm/pulse
- Robust aluminum housing and flange with stainless steel shaft
- Spring arm design with counter-weight for under-belt yoke mounting
- IP65 rated enclosure for dust and water resistance
- Wide operating temperature range from -30°C to +70°C
- Reverse polarity and short-circuit protection
- High bearing lifetime of 3.6 x 10^9 revolutions
- Low power consumption with max 1.25 W
- Operating speed up to 1500 min⁻¹
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper connection and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt monitoring and control
- Material handling systems
- Packaging machinery
- Robotics and motion control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption minimizes energy usage
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D4KFJAGA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
