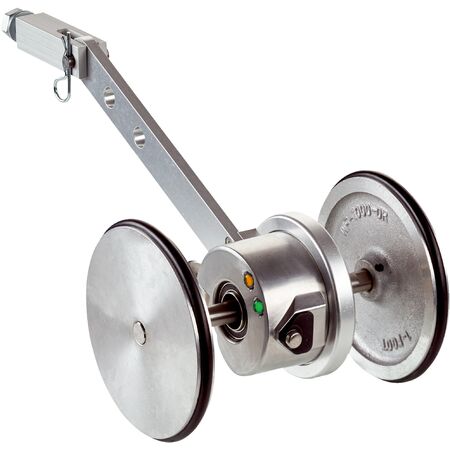

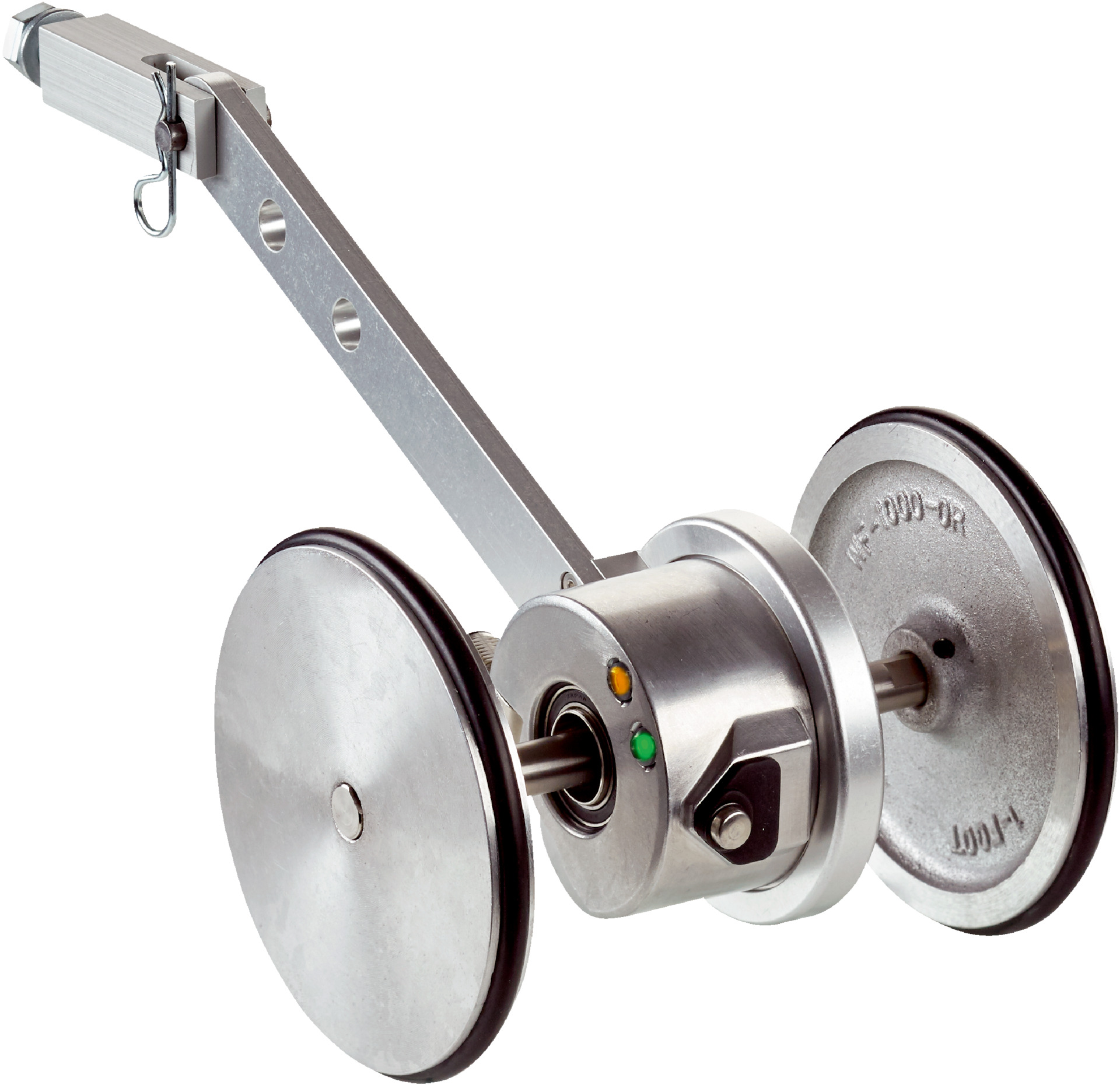

Incremental Encoder with Spring Arm | IP65 Rated | 275 Years MTTFD | 60 kHz Output | by SICK
The Incremental Encoder with Spring Arm is designed for industrial automation, offering high reliability with an MTTFD of 275 years and an IP65 rated enclosure for dust and water protection. With a maximum output frequency of 60 kHz and a robust aluminum housing, it's perfect for precise position and speed measurement in conveyor systems and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 275 years (EN ISO 13849-1)
- Pulses per revolution: 1 to 2400 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18°
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Power consumption max without load: ≤ 1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1 at 180°, electric, gated with A
- Operating speed: 1500 min⁻¹
- Start up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Spring arm travel/deflection max: 40 mm
- Recommended pretension: 20 mm
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Selectable output via DIP switch
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water jets
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- High maximum output frequency of 60 kHz
- Spring arm design with over-belt yoke mount and O-ring NBR70 measuring wheel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate travel monitoring
- Machine tool feedback and control
- Material handling and packaging machinery
Standards & Compliance
- AS/NZS 61000 – Electromagnetic compatibility (EMC) standards compliance implied by EN 61000-6-2 and EN 61000-6-3
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Robust design minimizes environmental impact from maintenance and downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-D2KCKAAA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
