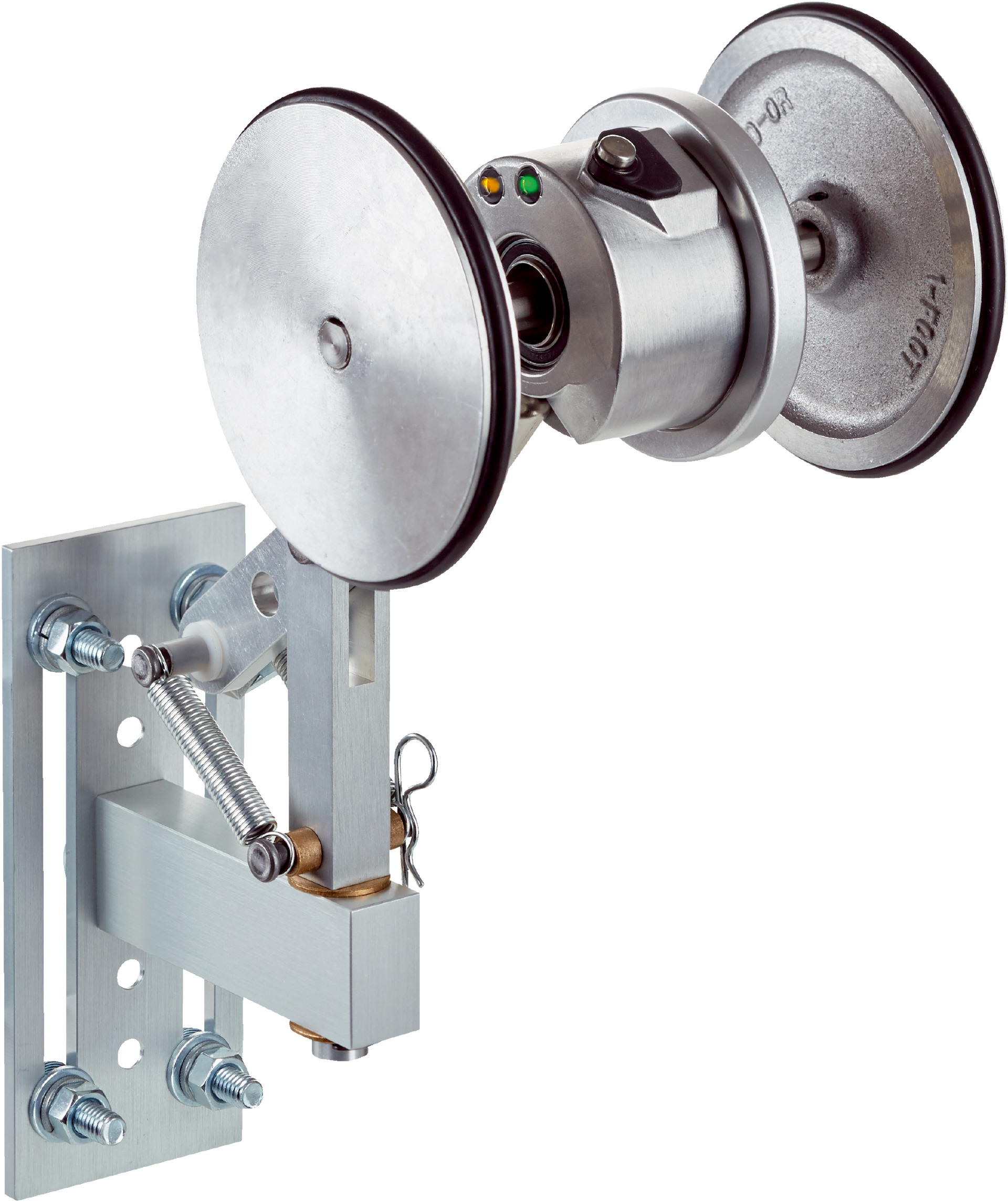

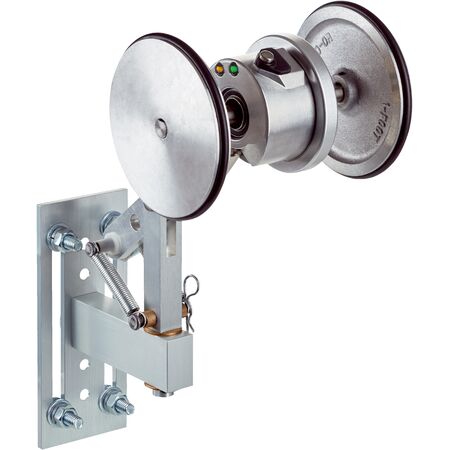

Incremental Encoder with Spring Arm | IP65 Rated | Adjustable Pulses | Robust Aluminum Housing | by SICK
The Incremental Encoder with Spring Arm is designed for precise position and speed measurement in industrial automation. With adjustable pulses per revolution from 1 to 1800 and an IP65 rated enclosure, it ensures reliable performance in challenging environments. Ideal for conveyor belt systems and robotics, this encoder features a robust aluminum housing and stainless steel shaft for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1 to 1800 (type-dependent)
- Resolution: 0.125 mm/pulse to 304.8 mm/pulse
- Measuring step: 90° electric/pulses per revolution with ±18° deviation
- Duty cycle: 0.5 ± 5%
- Initialization time: < 5 ms
- Communication interface: Incremental TTL/HTL
- Power consumption max without load: ≤ 1.25 W
- Supply voltage: 4.75 V to 30 V
- Load current max per channel: ≤ 30 mA
- Maximum output frequency: 60 kHz
- Reference signal: 1, 180° electric, gated with A
- Operating speed: 1500 min⁻¹
- Start up torque: 0.5 Ncm
- Operating torque: 0.4 Ncm
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65
- Operating temperature range: -30°C to +70°C
- Resistance to shocks: 100 g
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.9 kg
Key Features
- High reliability with MTTFD of 275 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL output
- Adjustable pulses per revolution from 1 to 1800
- Robust aluminum housing and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +70°C
- Short-circuit and reverse polarity protection
- Spring arm design with under-belt flange mount and O-ring measuring wheel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor belt systems requiring accurate length measurement
- Material handling and packaging machinery
- Robotics and motion control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤1.25 W minimizes energy use
- Long bearing lifetime reduces maintenance and resource consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DUV60E-32KCHACA incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
