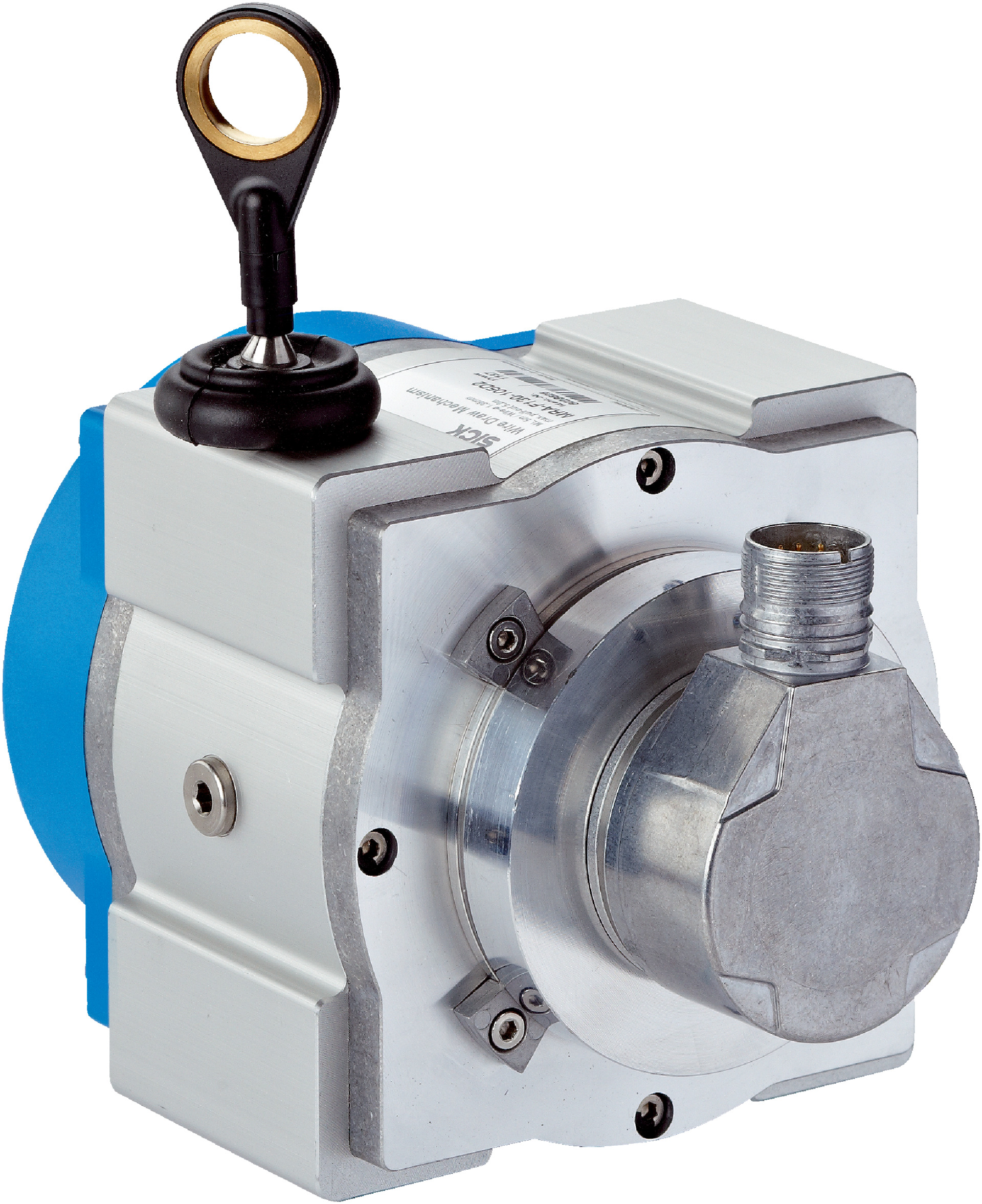

Incremental Encoder Wire Draw Sensor | 0 m to 5 m Range | 0.03 mm Resolution | IP64/IP67 Rated | by SICK
The Incremental Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a measurement range of 0 m to 5 m and a high resolution of 0.03 mm. With robust IP64/IP67 protection and a long life wire draw mechanism, it ensures reliability in safety-related applications and control systems, making it ideal for manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder Wire Draw Sensor | 0 m to 5 m Range | 0.03 mm Resolution | IP64/IP67 Rated | by SICK
Brand: SICK
SKU: 1034336
Alternatively Known As: Incremental Encoder Wire Draw Sensor, PRF13 Wire Draw Encoder, SICK PRF13 Encoder
Technical Specifications
- Measurement range: 0 m to 5 m
- Resolution: 0.03 mm
- Repeatability: ≤ 1 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 2 mm
- Communication interface: Incremental / HTL / Push pull
- Supply voltage: 10 V to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Measuring wire material: Highly flexible stranded steel 1.4401 stainless steel V4A
- Spring return force: 15 N to 20 N
- Life of wire draw mechanism: Typically 1,000,000 cycles
- Operating speed: 8 m/s
- Wire acceleration: 70 m/s²
- Enclosure rating: IP64 (mechanic IP67)
- Operating temperature range: –30 °C to +70 °C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 3.1 kg
Key Features
- Measurement range of 0 m to 5 m
- High resolution of 0.03 mm
- Repeatability ≤ 1 mm and linearity ≤ ± 2 mm
- Programmable incremental encoders with configurable interfaces
- Robust aluminum and plastic housing with IP64/IP67 protection
- Operating temperature range from –30 °C to +70 °C
- Spring return force between 15 N and 20 N
- Long life wire draw mechanism with typically 1,000,000 cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder systems and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Measurement and control systems in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.7 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

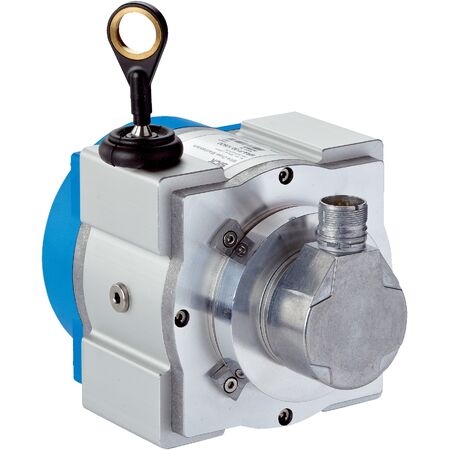

The SICK PRF13-E1AM0520 incremental encoder wire draw sensor is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
