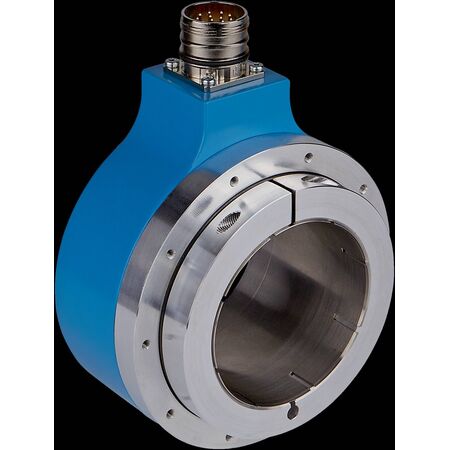

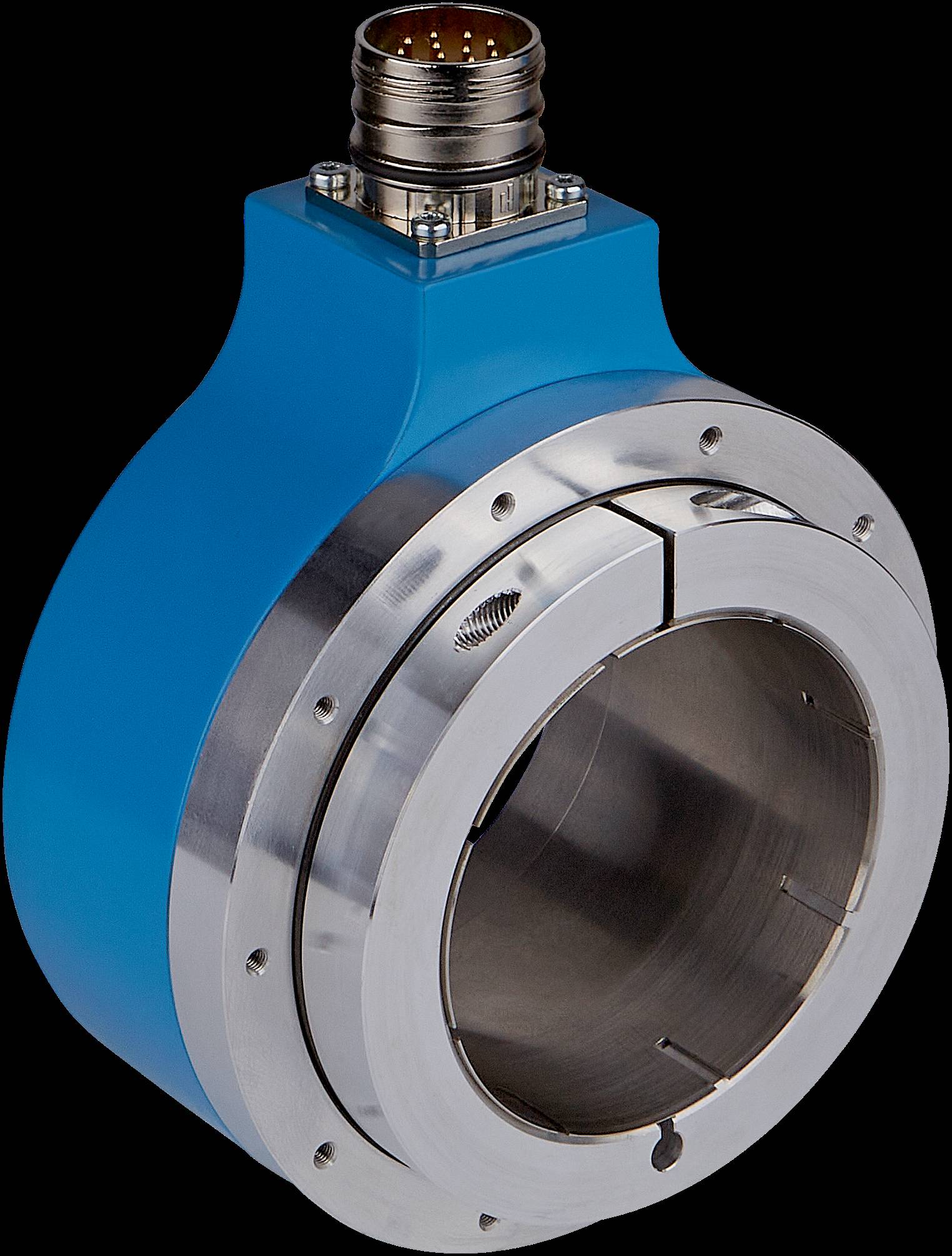

Incremental Hollow Shaft Encoder DGS80/90 | IP65 Rated | Up to 8192 Pulses | Multiple Connection Types | by SICK
The DGS80/90 incremental hollow shaft encoder is designed for precise position feedback with up to 8,192 pulses per revolution. Ideal for industrial automation and motion control applications, it features a robust IP65 enclosure for dust and water resistance, ensuring reliable performance in challenging environments. With multiple connection options including M12 and M23, installation is quick and straightforward, making it perfect for various industrial setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Hollow Shaft Encoder DGS80/90 | IP65 Rated | Up to 8192 Pulses | Multiple Connection Types | by SICK
Brand: SICK
SKU: 1146058
Alternatively Known As: Incremental hollow shaft encoder, rotary encoder, motion sensor encoder, industrial encoder
Technical Specifications
- Pulses per revolution: up to 8,192
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12, M23, MS (Mil-Spec) plug, cable with flying leads
- Construction size (flange): Ø 110 mm
- Connection detail: Male connector, M23, 12-pin
- Supply voltage range: 5 V to 30 V
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192 for precise position feedback
- Enclosure rating IP65 for dust and water resistance
- Communication interfaces: TTL and HTL
- Multiple connection types including M12, M23, MS (Mil-Spec) plug, and cable with flying leads
- Quick and easy installation with clamping ring and universal stator couplings
- Collets available as accessories for shaft size adjustment
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, electrical connection, and compliance with safety standards.
Applications
- Industrial automation systems
- Asynchronous motor control
- Motion control sensor applications requiring hollow shaft encoders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated design reduces need for frequent replacements
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80/90 incremental encoders are available for immediate purchase, ideal for industrial automation and motor control applications.
