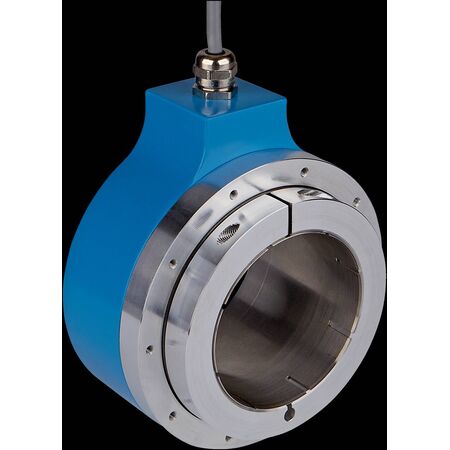

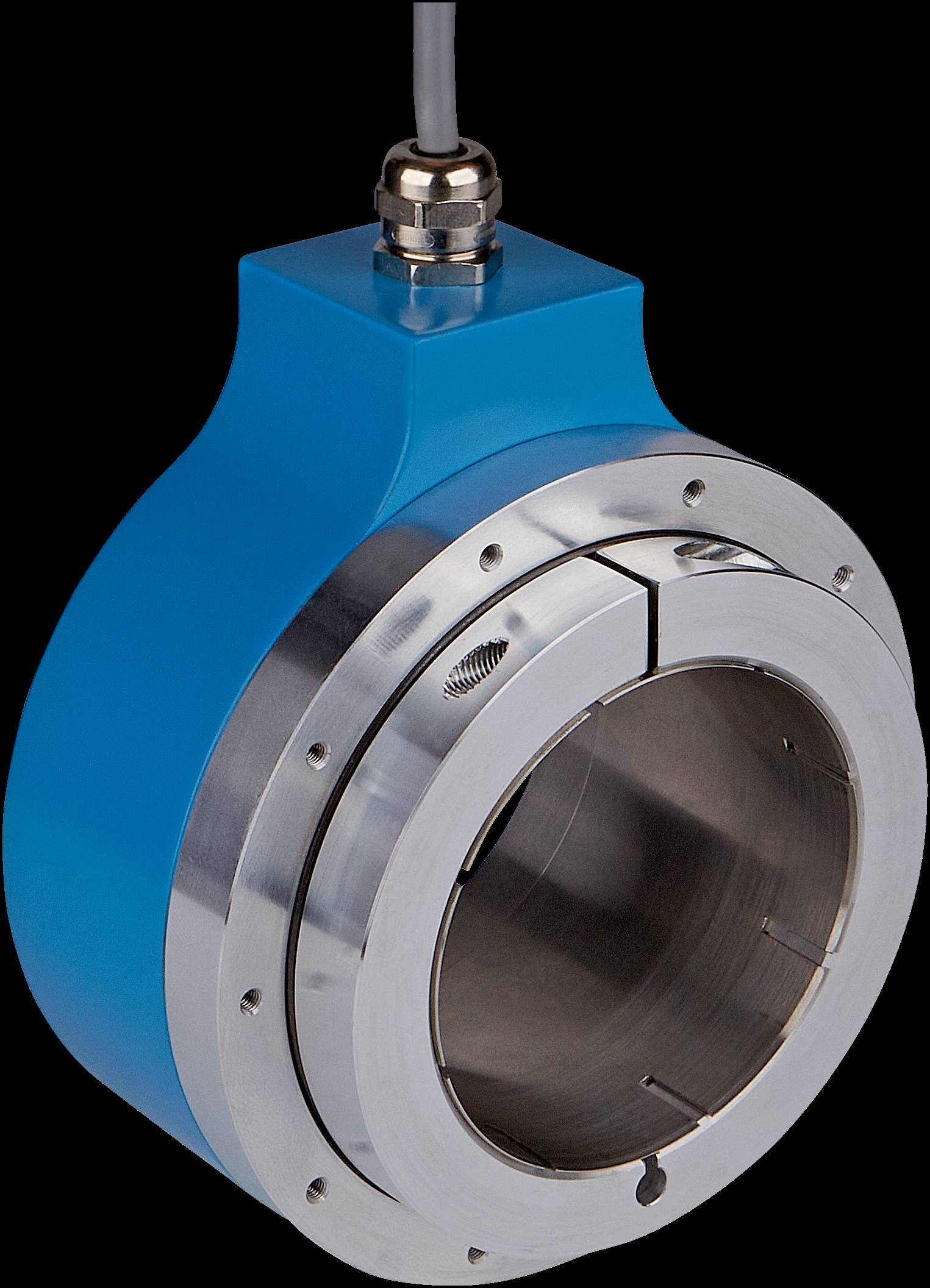

Incremental Hollow Shaft Encoder DGS80/90 | IP65 Rated | Up to 8192 Pulses | Large Bore | by SICK
The DGS80/90 incremental hollow shaft encoder is designed for industrial automation systems, featuring large hollow shaft diameters of up to 65 mm and an impressive 8192 pulses per revolution. With an IP65 enclosure rating, it ensures reliable performance in dusty and wet environments. Ideal for motion control applications, this encoder supports multiple connection types and is built for easy installation by qualified technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Hollow Shaft Encoder DGS80/90 | IP65 Rated | Up to 8192 Pulses | Large Bore | by SICK
Brand: SICK
SKU: 1146059
Alternatively Known As: Incremental hollow shaft encoder, large bore encoder, industrial rotary encoder
Technical Specifications
- Pulses per revolution: up to 8,192
- Hollow shaft diameter: 30 mm or 42 mm (DGS80), 65 mm (DGS90)
- Enclosure rating: IP65
- Communication interfaces: TTL, HTL
- Connection types: M12, M23, MS (Mil-Spec) plug, cable with flying leads
- Supply voltage range: 5 V to 30 V
- Construction size (flange): Ø 110 mm
- Connection detail: cable, 8-wire
- Dimensions (H x L x W): 110mm x 110mm x 110mm
- Weight: 1.5 kg
Key Features
- Large hollow shaft diameters: up to 42 mm (DGS80) and 65 mm (DGS90)
- Pulses per revolution up to 8,192
- Enclosure rating IP65 for dust and water protection
- Communication interfaces: TTL and HTL
- Multiple connection types including M12, M23, MS plug, and cable with flying leads
- Quick and easy installation with clamping ring and universal stator couplings
- Collets available as accessories for shaft size adjustment
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation systems
- Asynchronous motor control
- Motion control sensor applications requiring hollow shaft encoders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80/90 incremental encoders are available for immediate purchase, ideal for industrial automation and motion control sensor applications.
